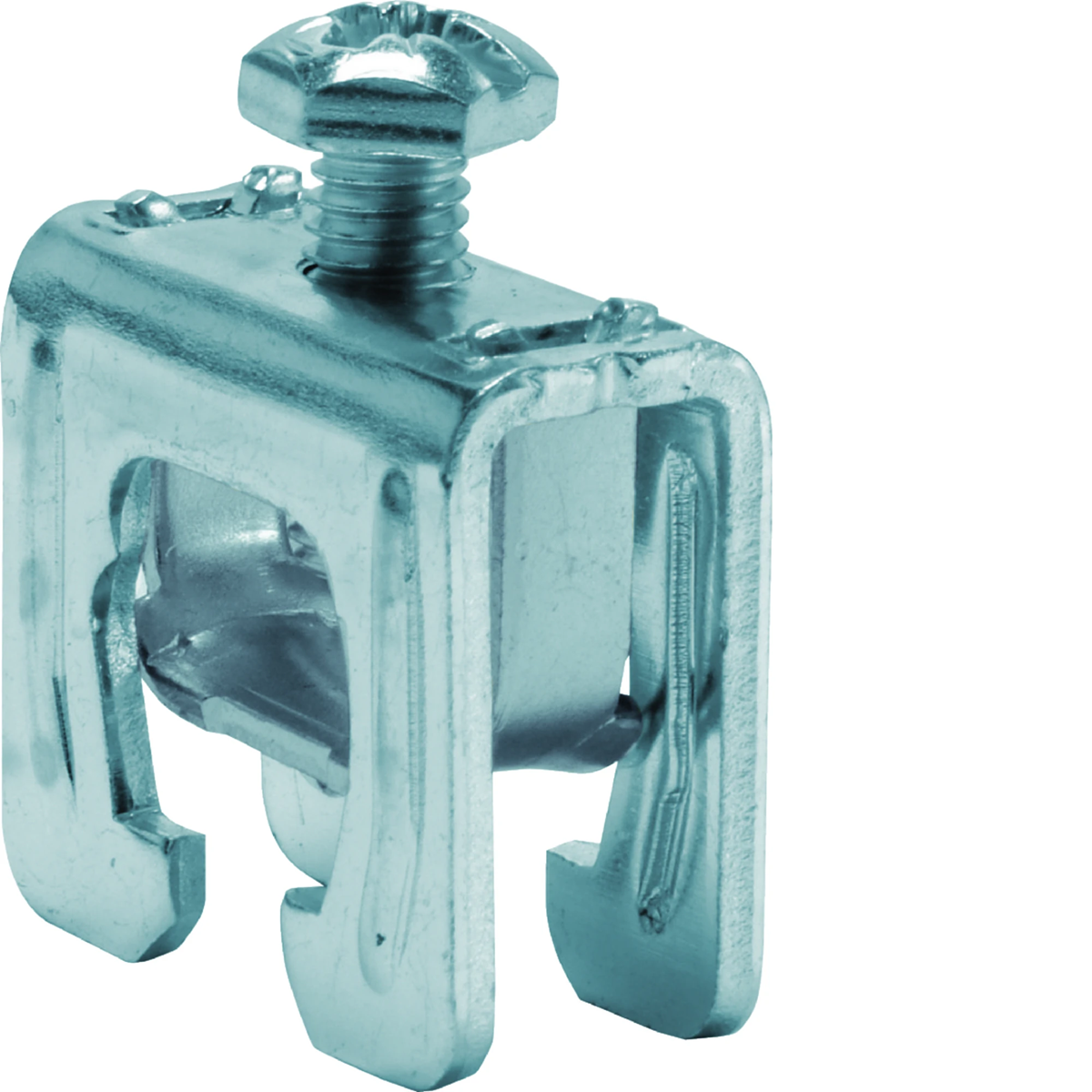

Busbar clamp 2.5/35mm² 12x5mm K96C

local index:
RRR1I9HAGE
Catalog No:
K96C
EAN code:
4010330710704
Manufacturer: HAGER
Depth [mm]: thirty
Material: Galvanized steel sheet
Tightening torque [Nm]: 5
Price:
2,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Busbar clamp:

  • material: galvanized steel sheet
  • tightening torque: 5Nm

Technical data

  • Depth [mm]
    thirty
  • Tightening torque [Nm]
    5
  • Width [mm]
    15
  • The distance between the rails
    10mm
  • Busbar height [mm]
    12
  • Conductor cross-section (wire) [mm²]
    2.5 - 35
  • Material
    Galvanized steel sheet
  • Rated current [A]
    115
  • Height [mm]
    28.5
  • Busbar width [mm]
    5
  • Wire cross-section (cord) [mm²]
    2.5 - 35
  • PKWIU
    27.33.13.0

Other technical data

  • Busbar thickness
    5 ... 5 mm
  • Width clamp
    15 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 20 pcs. 400 pcs. 12000 pcs.
Weight (kg) 0,020 0,520 10,580 337,000
Width (m) 0,030 0,075 0,240 0,800
Length (m) 0,015 0,045 0,170 0,660
Depth (m) 0,035 0,150 0,330 1,200
