Busbar 1F S-541F-16 45.116

local index:
RPU004ELOP
Catalog No:
45.116
EAN code:
5905548287355
Length [mm]: 965
Number of tracks: 1F
cross section [mm²]: 16
Price:
16,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

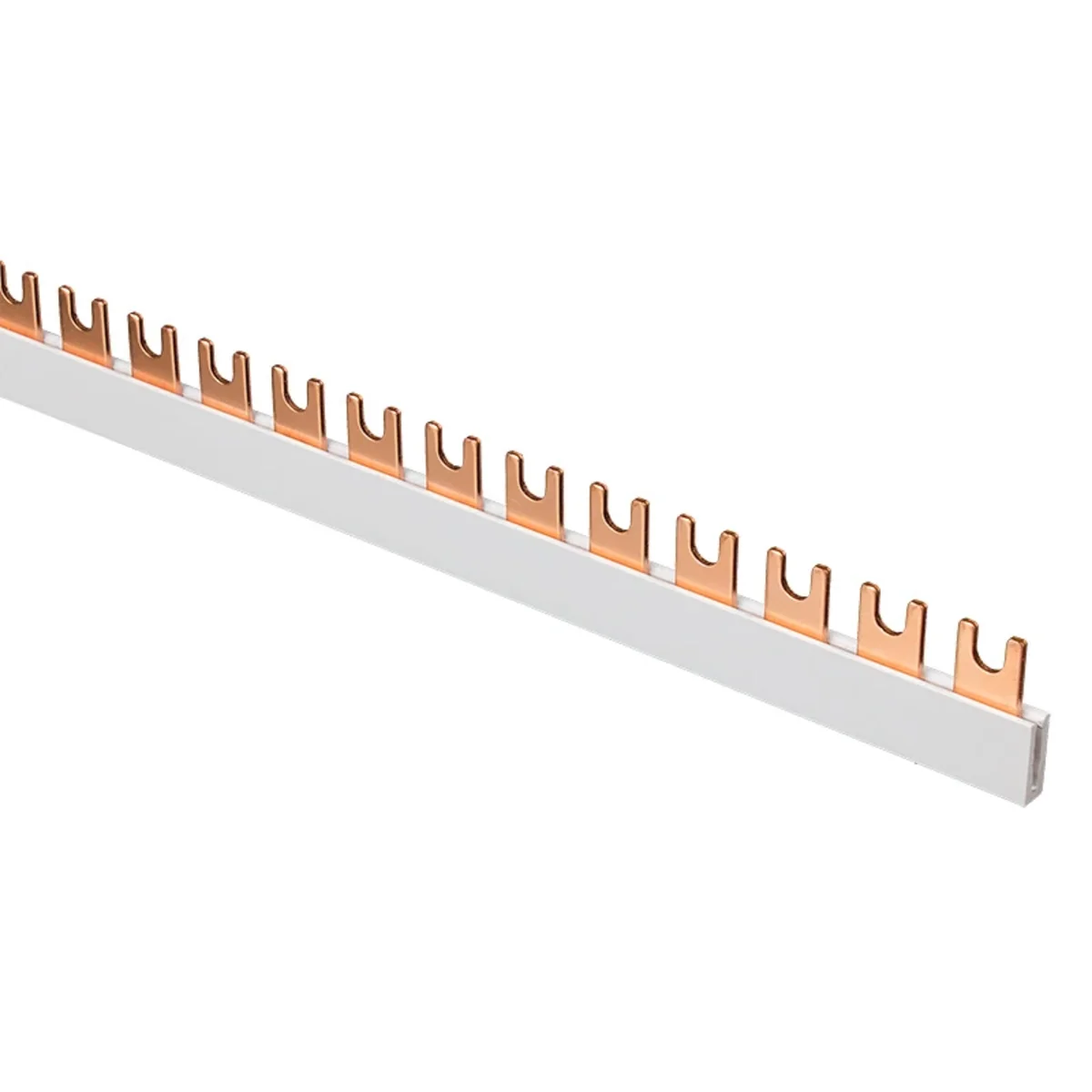

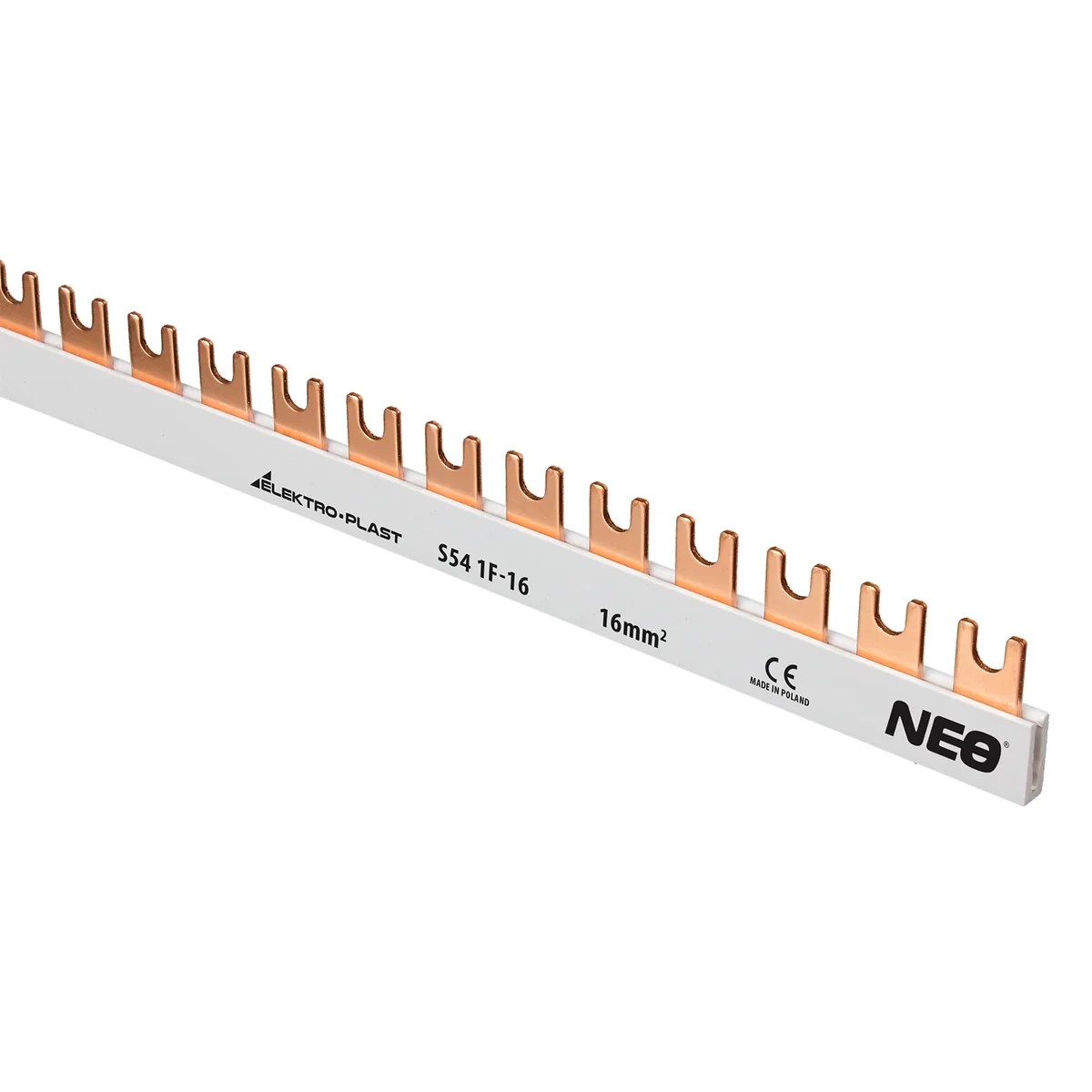

One and three-way. Easy-to-install insulated copper busbars are suitable for connecting switches and electrical devices of the "S" type.

Technical data

  • Length [mm]
    965
  • cross section [mm²]
    16
  • PKWIU
    27.12.40.0
  • Number of tracks
    1F
  • Current [A]
    80

Other technical data

  • Number of phases
    1
  • Suitable for number of devices
    54
  • Cross section
    16 mm²
  • Rated permanent current Iu
    80 A
  • Insulated
    Yes
  • Max. rated operation voltage Ue
    400 V
  • Suitable for devices with N-conductor
    No
  • Number of poles
    1

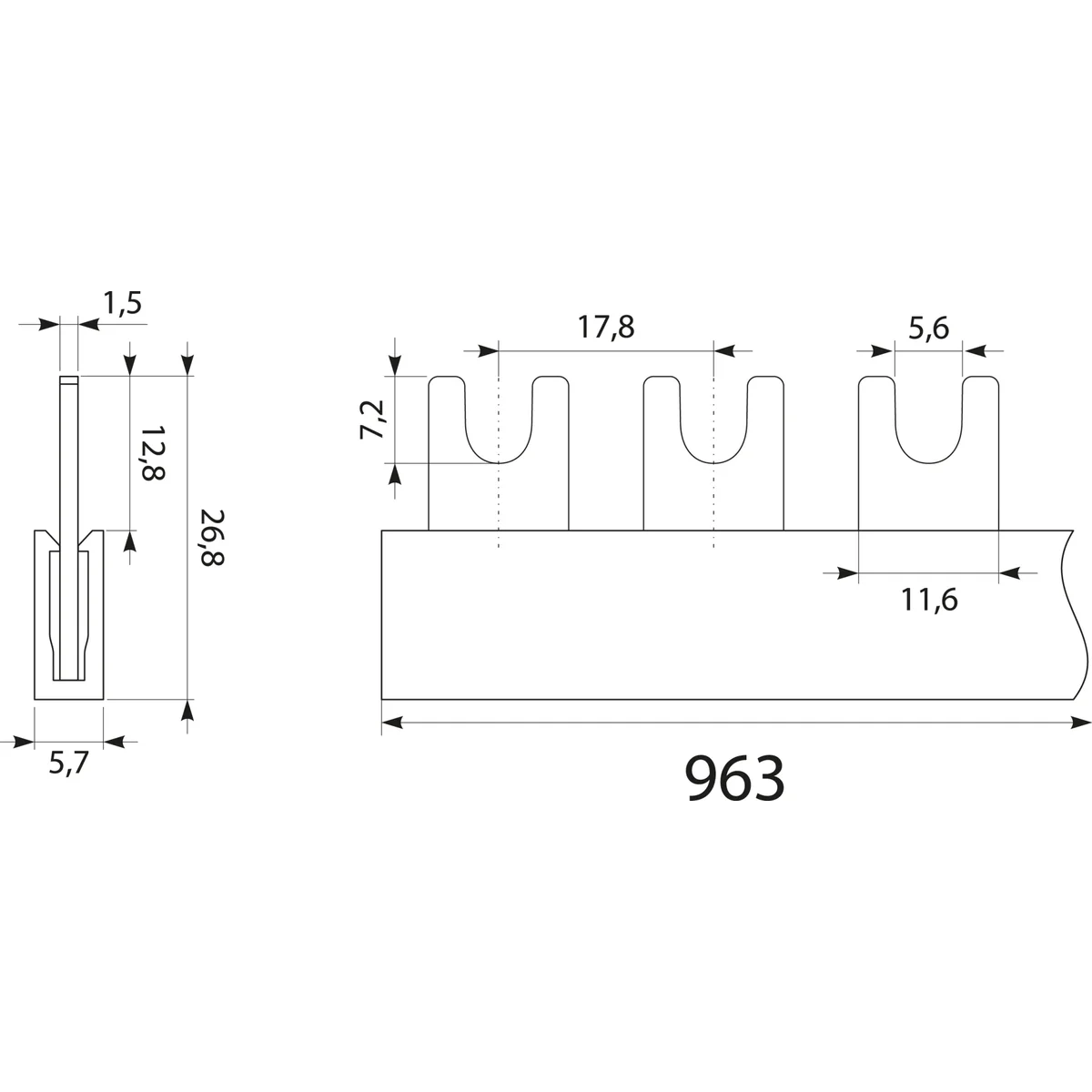

  • Module width
    17.8 mm

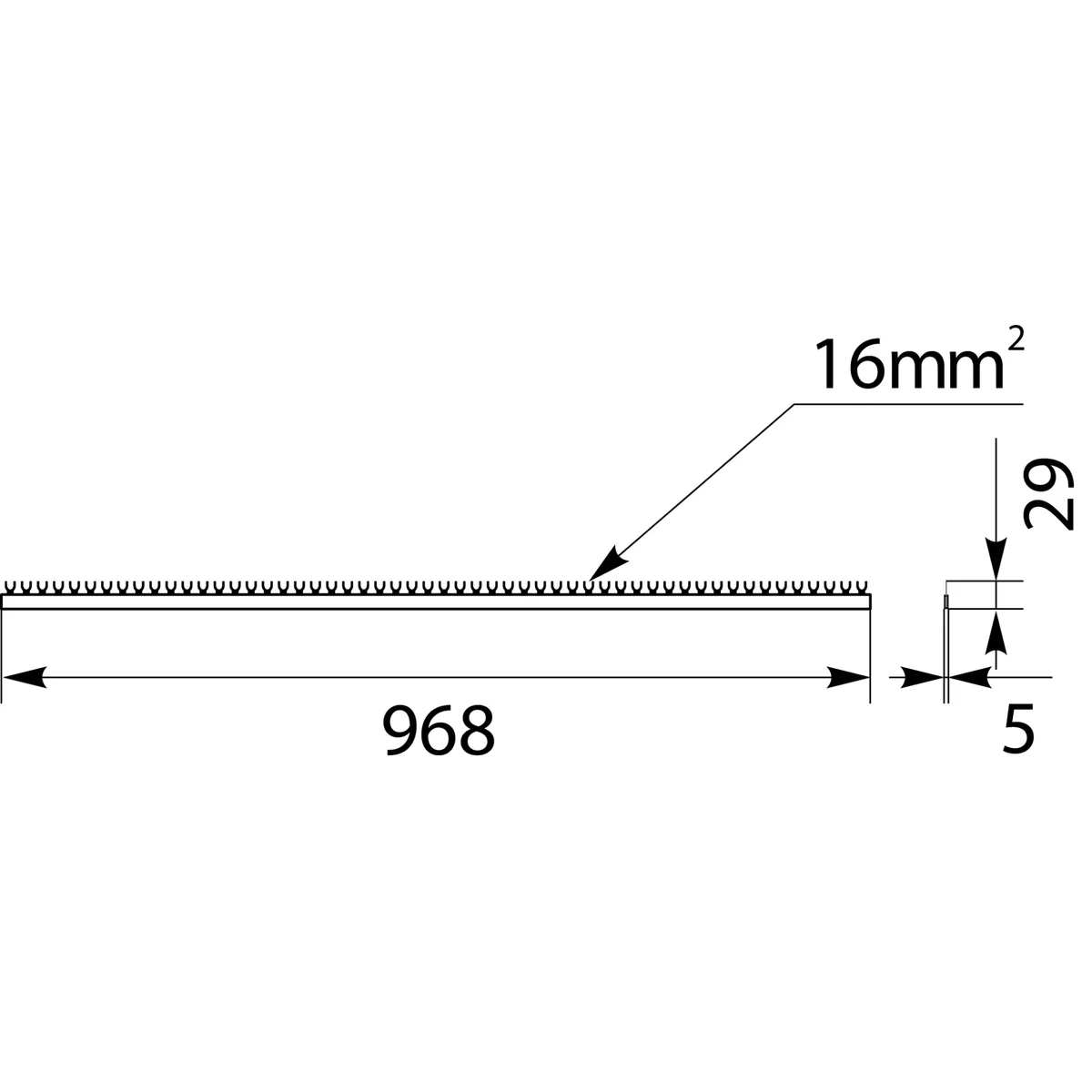

  • Length
    968 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    2.5 kV
  • Rated short-time withstand current lcw
    0.08 kA
  • Suitable for devices with auxiliary switch
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,304 -
