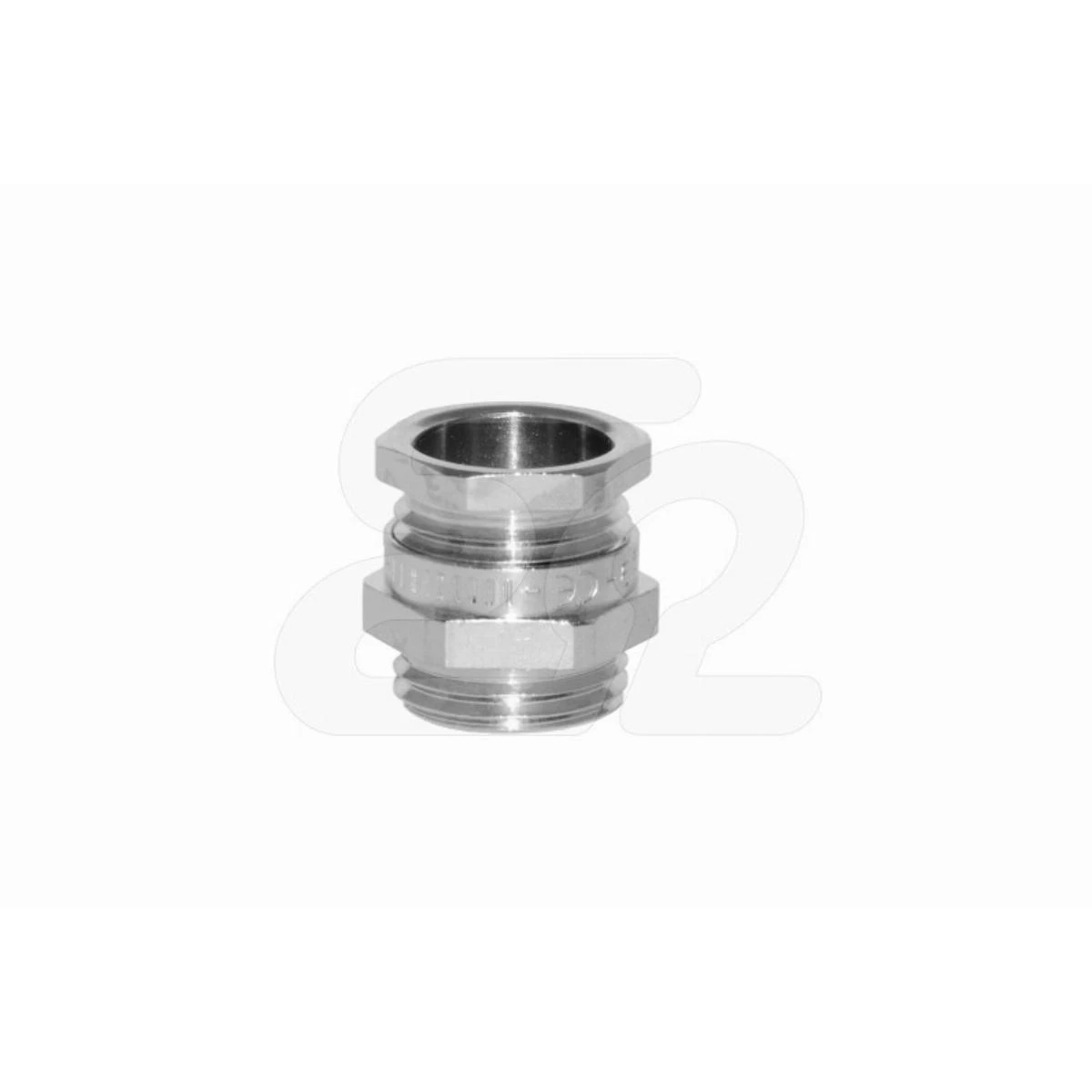

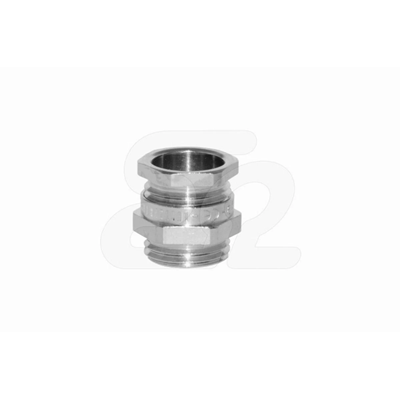

Brass nickel-plated cable gland MDW 16 PG16 IP54 E03DK-03010100503

local index:
RRR485ERGO
Catalog No:
E03DK-03010100503
Manufacturer: ERGOM
Halogen free: NO
Thread: PG16
Color: Silver
Price:
2,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Nickel-plated brass gland:

  • PG16 thread
  • body: nickel-plated brass; gasket: neoprene CR
  • increased degree of protection (IP54 with a sealing washer)
  • intended for indoor and outdoor use

Technical data

  • Halogen free
    NO
  • Color
    Silver
  • Material
    Nickel-plated brass
  • Minimum operating temperature [°C]
    -40
  • Thread
    PG16
  • Maximum operating temperature [°C]
    100
  • Level of security
    IP54
  • PKWIU
    25.99.29.0

Other technical data

  • Thread type
    PG
  • Thread length
    6 mm
  • Suitable for cable diameter
    10.5 ... 15 mm
  • Material quality
    Brass
  • Halogen free
    No
  • Degree of protection (IP)
    IP54
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -20 ... 80 °C
  • For Ex-zone gas
    None
  • Nominal thread size metric/PG
    16
  • Wrench width
    22 mm
  • Material
    Metal
  • Surface protection
    Nickel-plated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • With locknut
    No
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None

Bulk packaging

A kind of package Sztuka
Quantity 10 pcs.
Weight (kg) 0,020
