Brass gland MDW 13H IP68 E03DK-03070100401

local index:
RRR437ERGO
Catalog No:
E03DK-03070100401
Manufacturer: ERGOM
Halogen free: Yes
Thread: PG13.5
Level of security: IP68
Price:
2,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

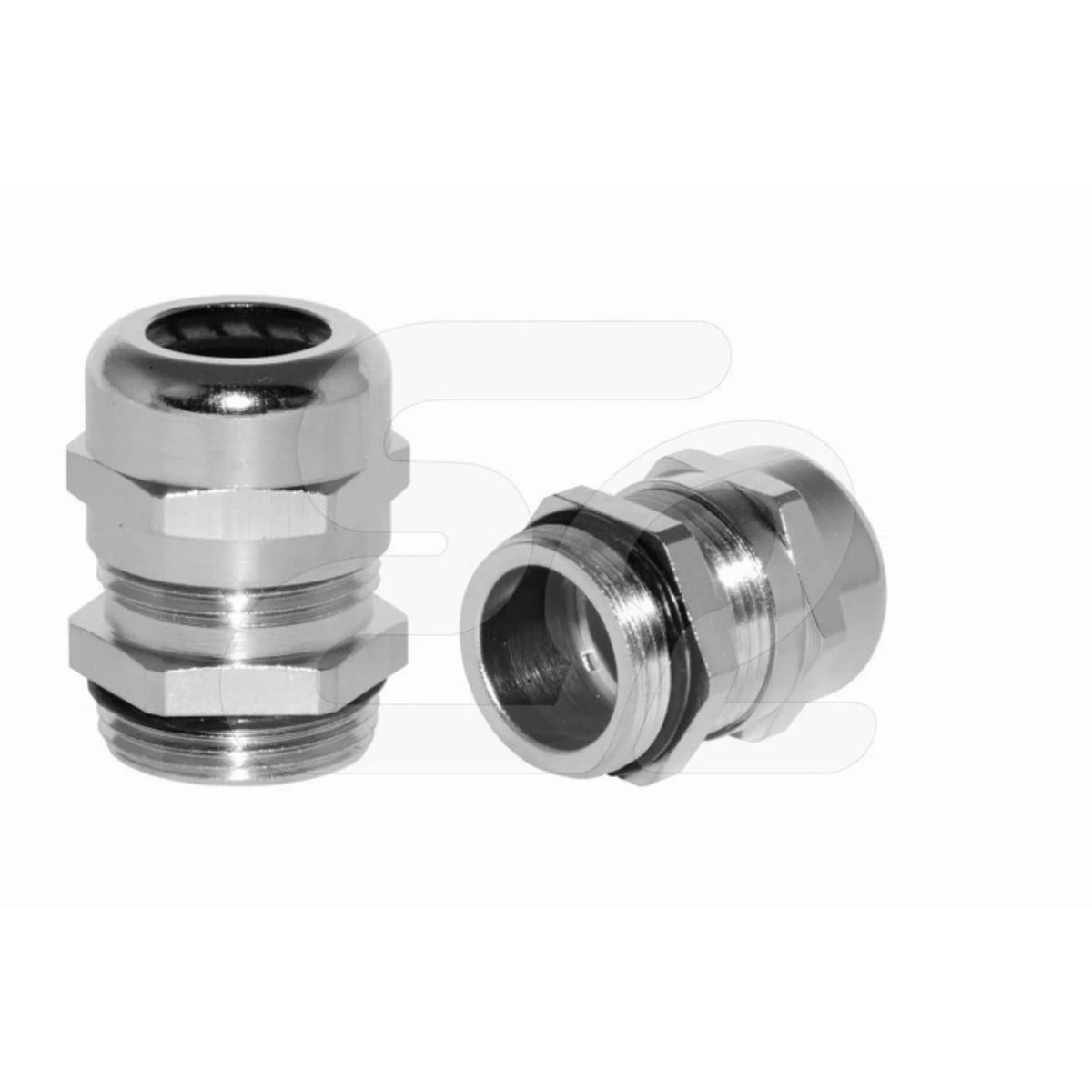

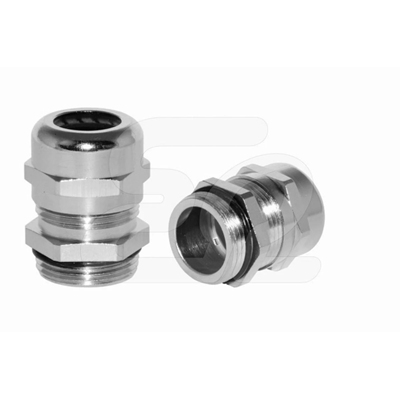

MDW 13H IP68 brass gland

Technical data

  • Halogen free
    Yes
  • Level of security
    IP68
  • PKWIU
    25.99.29.0
  • Thread
    PG13.5
  • Cable outer diameter [mm]
    6-12

Other technical data

  • Thread type
    PG
  • Thread length
    6 mm
  • Suitable for cable diameter
    8.5 ... 13.5 mm
  • Material quality
    Brass
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • Colour
    Kolor naturalny
  • With locknut
    No
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Nominal thread size metric/PG
    13.5
  • Wrench width
    20 mm
  • Material
    Metal
  • Surface protection
    Nickel-plated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -40 ... 100 °C
  • For Ex-zone gas
    None

Bulk packaging

A kind of package Sztuka
Quantity 50 pcs.
Weight (kg) 1,410
Width (m) 0,050
Length (m) 0,010
Depth (m) 0,030
