Brass gland EMV IP68 PG21 nickel-plated 10 pcs 250676
local index:
RRR070HAUP
Catalog No:
250676
EAN code:
4011923566395
Price:
45,33 €
gross / pkg.
(including VAT 23%)
4,53 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

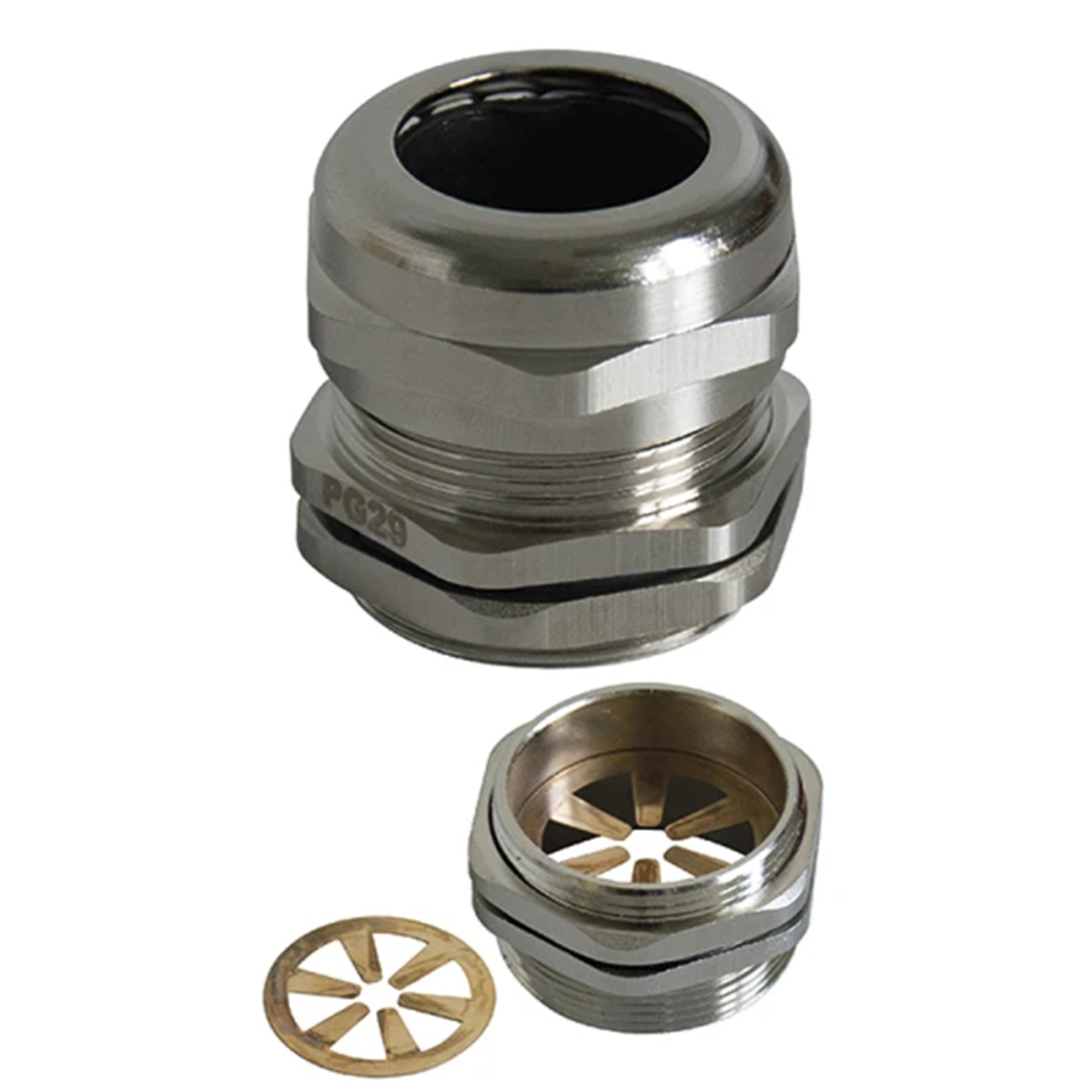

Cable gland for EMC connections, nickel-plated brass, with gasket and locknut, unassembled.
Technical data
-
Blade length [mm]thirty
-
MaterialBrass
-
Flange width [mm]18.2
-
Hole diameter [mm]23.8
-
ThreadPG21
-
Level of securityIP68
-
Pieces in the package10
-
Inner diameter [mm]28.2
Other technical data
-
Thread typePG
-
Thread length8.8 mm
-
Suitable for cable diameter13 ... 18 mm
-
Material qualityBrass
-
Degree of protection (IP)IP68
-
With locknutYes
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandYes
-
Pitch thread1.5 mm
-
Wrench width30 mm
-
MaterialMetal
-
Halogen freeYes
-
Bend radius protection/trumpet flareNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-30 ... +120 °C
Manufacturer details
-
ManufacturerHAUPA GmbH & Co. KG
-
Address42853 Remscheid Königstr. 165-169 Polska
-
