Brass gland EMV IP68 PG12 nickel-plated 10 pcs 250670

local index:
RRR067HAUP
Catalog No:
250670
EAN code:
4011923566364
Manufacturer: HAUPA
Blade length [mm]: 20-21
Thread: PG12
Material: Brass
Price:
21,65 €
gross / pkg.
(including VAT 23%)
2,17 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

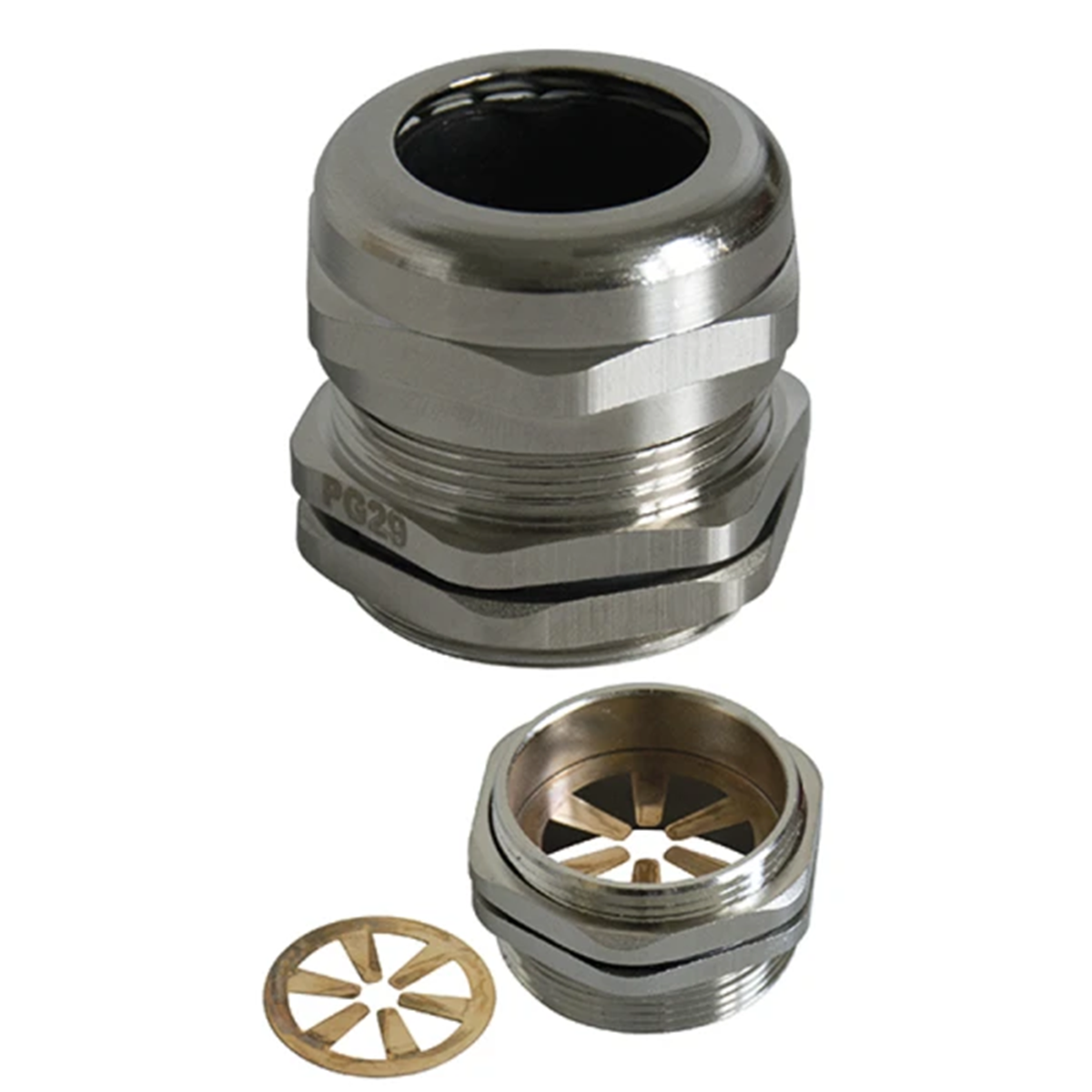

Cable gland for EMC connections, nickel-plated brass, with gasket and locknut, unassembled.

Technical data

  • Blade length [mm]
    20-21
  • Material
    Brass
  • Flange width [mm]
    10.5
  • Hole diameter [mm]
    14.2
  • Thread
    PG12
  • Level of security
    IP68
  • Pieces in the package
    10
  • Inner diameter [mm]
    18.2

Other technical data

  • Thread type
    PG
  • Thread length
    8 mm
  • Suitable for cable diameter
    5 ... 10 mm
  • Material quality
    Brass
  • Degree of protection (IP)
    IP68
  • With locknut
    Yes
  • Multi seal area
    No
  • With strain relief
    Yes
  • Separable screw gland
    Yes
  • Pitch thread
    1.5 mm
  • Wrench width
    20 mm
  • Material
    Metal
  • Halogen free
    Yes
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -30 ... +120 °C
