Brass gland EMV IP68 M50 nickel-plated 5 pcs 250662
local index:
RRR065HAUP
Catalog No:
250662
EAN code:
4011923566500
Price:
98,83 €
gross / pkg.
(including VAT 23%)
19,77 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

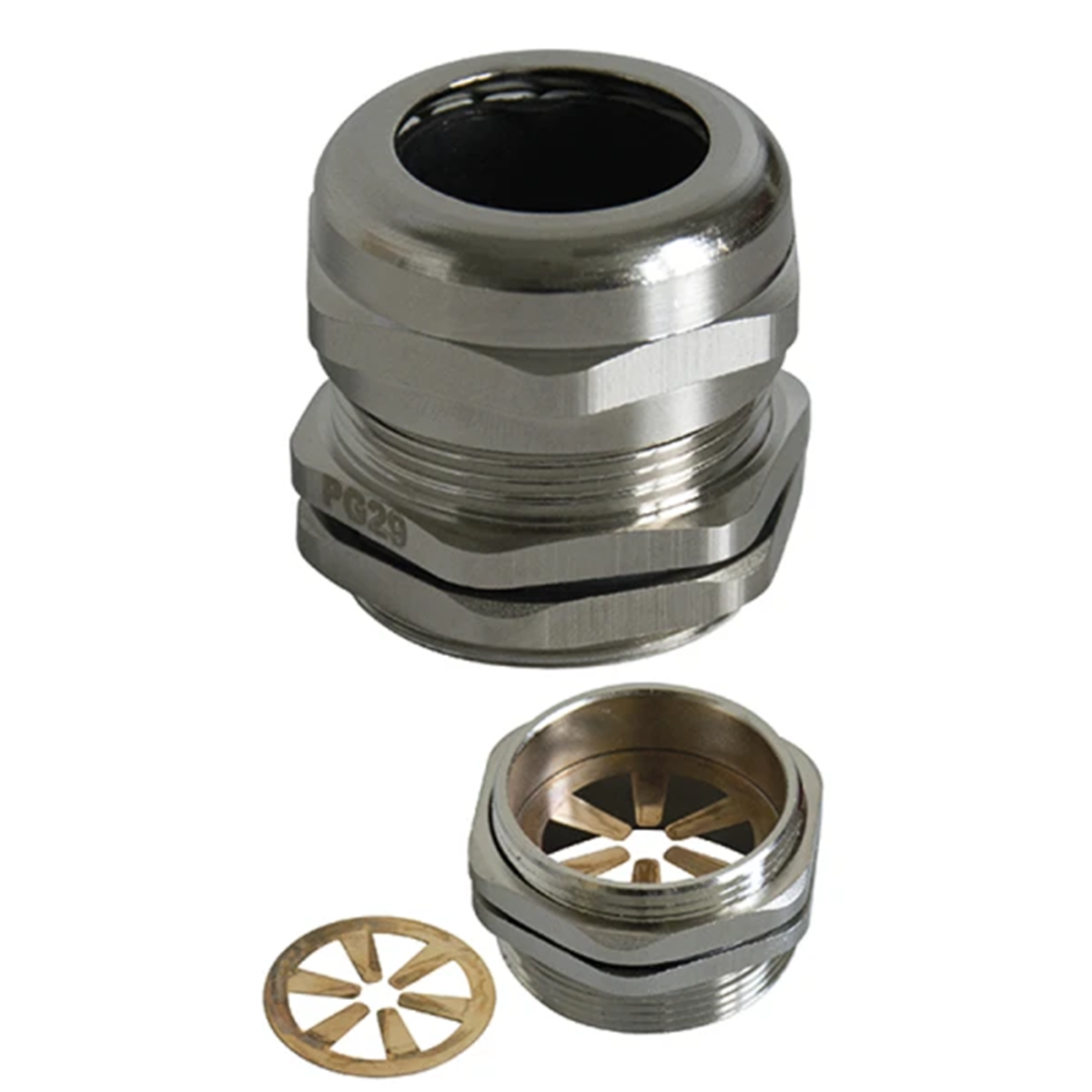

Cable gland for EMC connections, nickel-plated brass, with gasket and locknut, unassembled.
Technical data
-
Blade length [mm]55-57
-
MaterialBrass
-
Flange width [mm]39
-
Hole diameter [mm]44
-
ThreadM50
-
Level of securityIP68
-
Pieces in the package5
-
Inner diameter [mm]50
Other technical data
-
Thread typeMetric
-
Thread length13 mm
-
Suitable for cable diameter32 ... 38 mm
-
Material qualityBrass
-
Degree of protection (IP)IP68
-
Bend radius protection/trumpet flareNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-30 ... +120 °C
-
Pitch thread1.5 mm
-
Wrench width55 mm
-
MaterialMetal
-
Halogen freeYes
-
ColourOther
-
With locknutYes
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandYes
