Brass gland EMV IP68 M40 40-45mm nickel-plated 5 pcs 250660

local index:
RRR063HAUP
Catalog No:
250660
EAN code:
4011923566494
Manufacturer: HAUPA
Blade length [mm]: 40-45
Thread: M40
Material: Brass
Price:
48,19 €
gross / pkg.
(including VAT 23%)
9,64 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

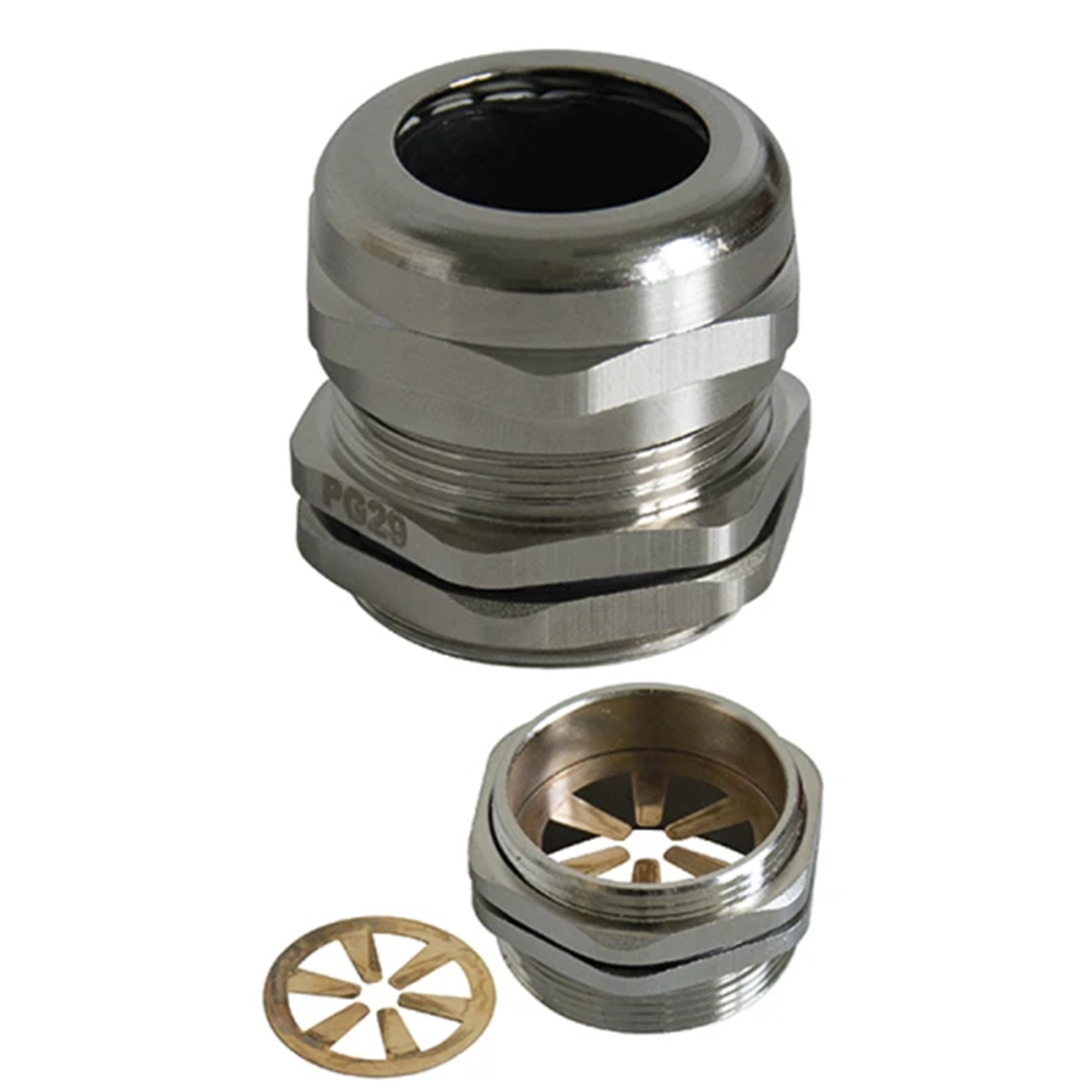

Cable gland for EMC connections, nickel-plated brass, with gasket and locknut, unassembled.

Technical data

  • Blade length [mm]
    40-45
  • Material
    Brass
  • Flange width [mm]
    25.5
  • Hole diameter [mm]
    35.5
  • Thread
    M40
  • Level of security
    IP68
  • Pieces in the package
    5
  • Inner diameter [mm]
    40

Other technical data

  • Thread type
    Metric
  • Thread length
    11 mm
  • Suitable for cable diameter
    18 ... 25 mm
  • Material quality
    Brass
  • Degree of protection (IP)
    IP68
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -30 ... +120 °C
  • Pitch thread
    1.5 mm
  • Wrench width
    40 mm
  • Material
    Metal
  • Halogen free
    Yes
  • Colour
    Other
  • With locknut
    Yes
  • Multi seal area
    No
  • With strain relief
    Yes
  • Separable screw gland
    Yes
