Brass gland EMV IP68 M32 nickel-plated 10 pcs 250658
local index:
RRR062HAUP
Catalog No:
250658
EAN code:
4011923566487
Price:
64,29 €
gross / pkg.
(including VAT 23%)
6,43 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

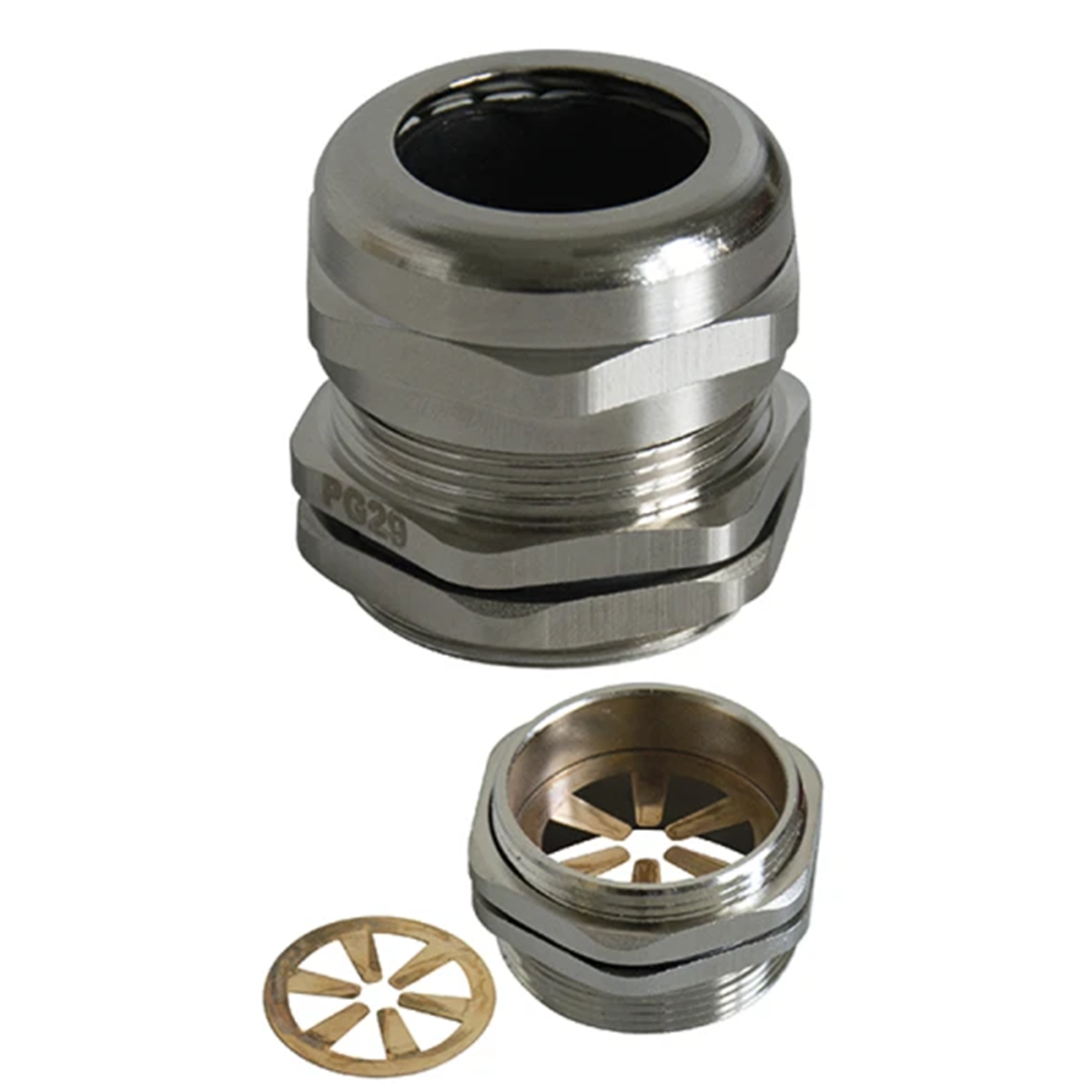

Cable gland for EMC connections, nickel-plated brass, with gasket and locknut, unassembled.
Technical data
-
Blade length [mm]35
-
MaterialBrass
-
Flange width [mm]21.5
-
Hole diameter [mm]27
-
ThreadM32
-
Level of securityIP68
-
Pieces in the package10
-
Inner diameter [mm]32
Other technical data
-
Thread typeMetric
-
Thread length10 mm
-
Suitable for cable diameter15 ... 22 mm
-
Material qualityBrass
-
Degree of protection (IP)IP68
-
Bend radius protection/trumpet flareNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-30 ... +120 °C
-
Pitch thread1.5 mm
-
Wrench width35 mm
-
MaterialMetal
-
Halogen freeYes
-
ColourOther
-
With locknutYes
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandYes
Manufacturer details
-
ManufacturerHAUPA GmbH & Co. KG
-
Address42853 Remscheid Königstr. 165-169 Polska
-
