Brass cable gland, nickel-plated MDW 21N PG21 with IP65 seal E03DK-03040100603
local index:
RRR458ERGO
Catalog No:
E03DK-03040100603
Price:
15,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

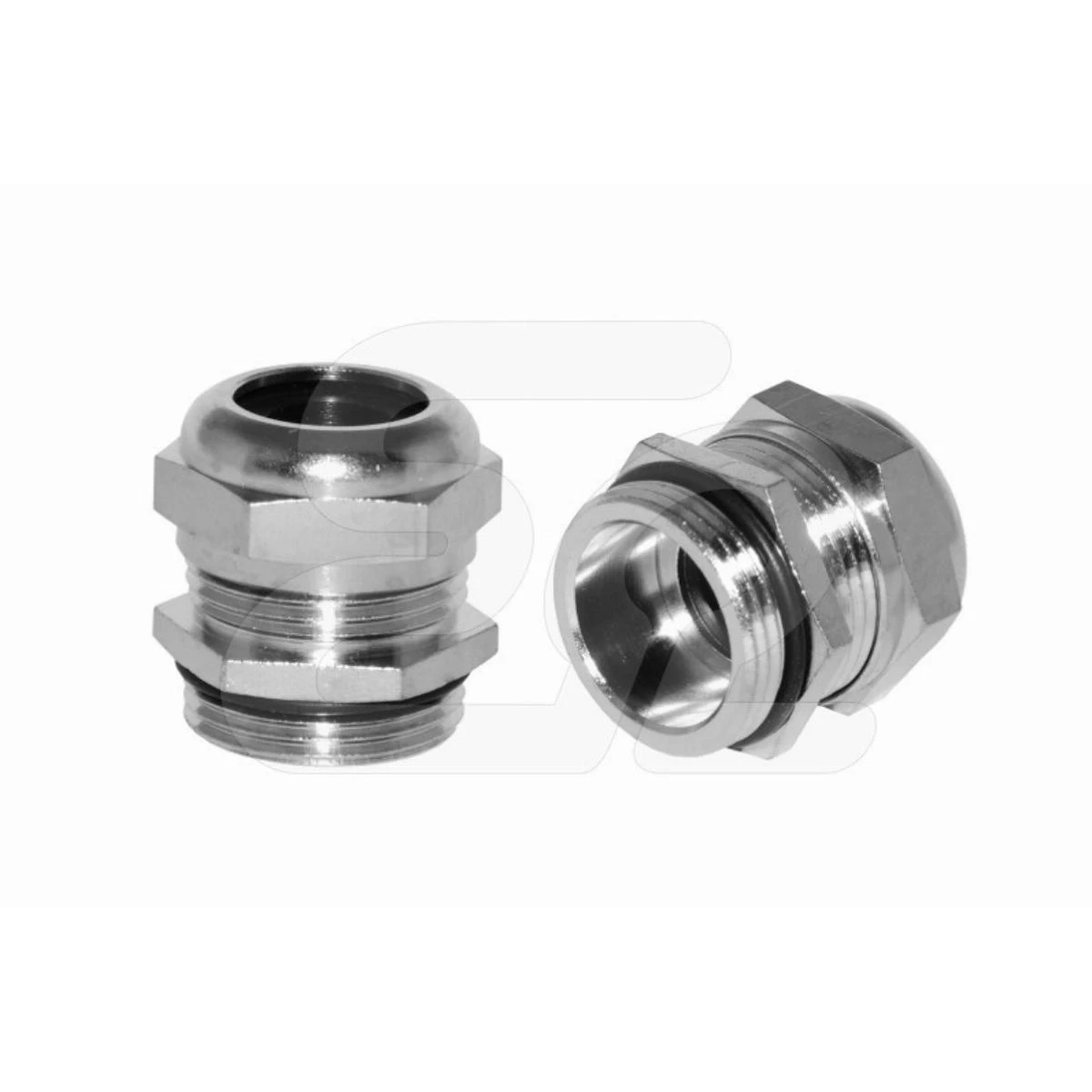

Gland nickel-plated brass with cap nut:
- PG thread
- increased degree of protection
- ;factory fitted two-piece o-ring: CR/NBR rubber and NBR rubber
- for indoor and outdoor use
Technical data
-
Halogen freeYes
-
ColorSilver
-
MaterialNickel-plated brass
-
Minimum operating temperature [°C]-thirty
-
ThreadPG21
-
Maximum operating temperature [°C]100
-
Level of securityIP65
-
PKWIU25.99.29.0
Other technical data
-
Thread typePG
-
Thread length7.5 mm
-
Suitable for cable diameter13 ... 20 mm
-
Material qualityBrass
-
Halogen freeYes
-
Degree of protection (IP)IP65
-
Bend radius protection/trumpet flareNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-30 ... 100 °C
-
For Ex-zone gasNone
-
Nominal thread size metric/PG21
-
Wrench width32 mm
-
MaterialMetal
-
Surface protectionNickel-plated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
With locknutNo
-
Multi seal areaNo
-
With strain reliefNo
-
Separable screw glandYes
-
Explosion-tested versionNo
-
For Ex-Zone dustNone
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 10 pcs. |
| Weight (kg) | 0,060 |
