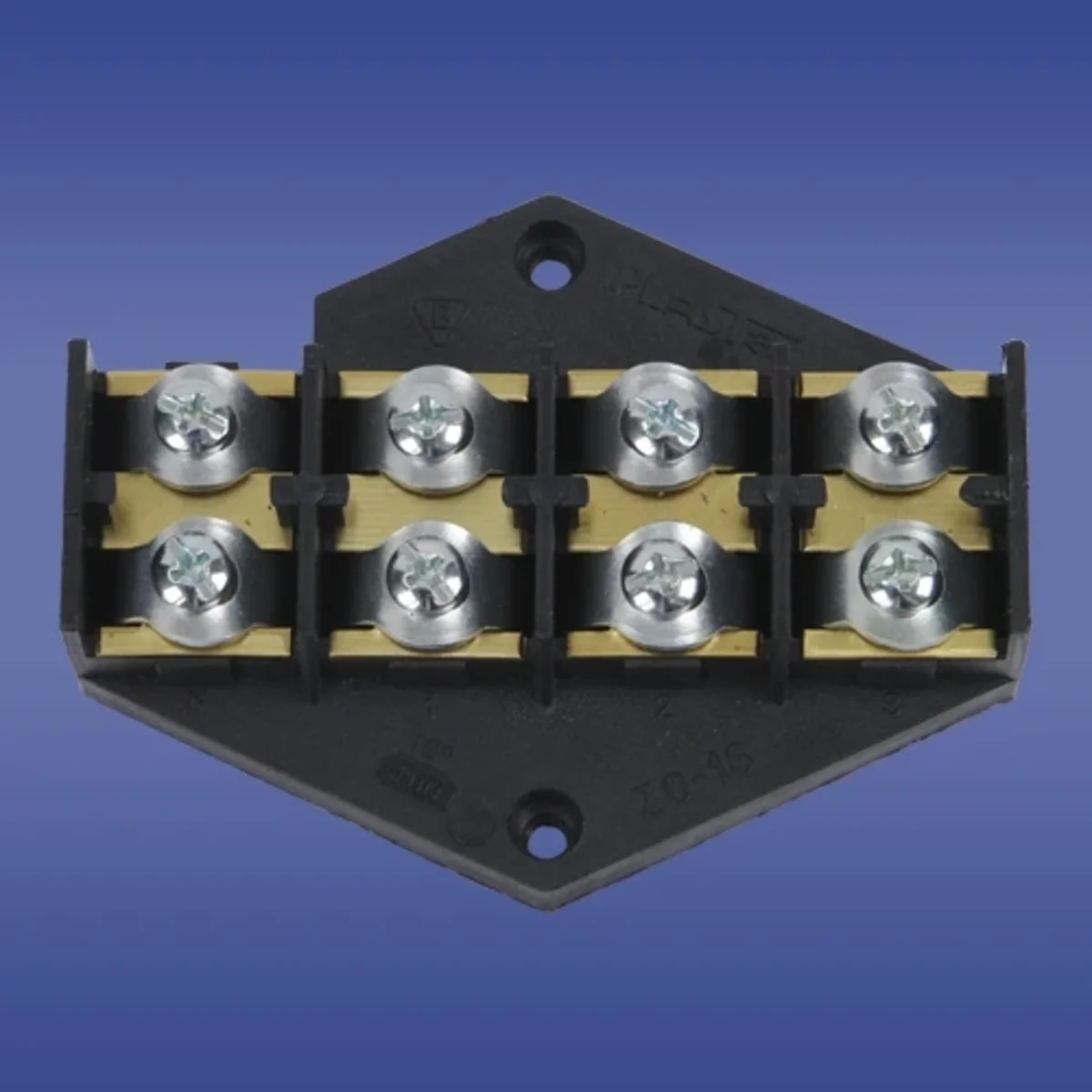

Branch plate 4-way 16mm2 ZO-4/16 19.416
local index:
RRR007ELOP
Catalog No:
19.416
EAN code:
5905548284774
Price:
2,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The branch plate from our offer , unlike comparable plates from other manufacturers, has very strong and stable cable fastenings through the use of polygonal steel nuts, which, unlike threaded holes (other fastening strips), have much greater strength and torque of the threaded connection.
Technical data
-
Length [mm]100
-
Width [mm]77
-
PKWIU27.12.40.0
-
Hole spacing [mm]6.5
-
Cable diameter [mm]16
Other technical data
-
Type of electrical connection 1Screw connection
-
Number of poles4
-
Mounting methodDirect mounting
-
Closing plate requiredNo
-
TransparentNo
-
Type of electrical connection 2Screw connection
-
Number of clamp positions per pole2
-
Material insulation bodyThermoplastic
-
ColourBlack
Manufacturer details
-
ManufacturerELEKTRO-PLAST Opatówek Sp.z o.o.
-
Address62-860 Opatówek Rogatka 14
-
Phone number
-
E-mail
-
Tax identification number9680893101
-
GLN5909000637801
