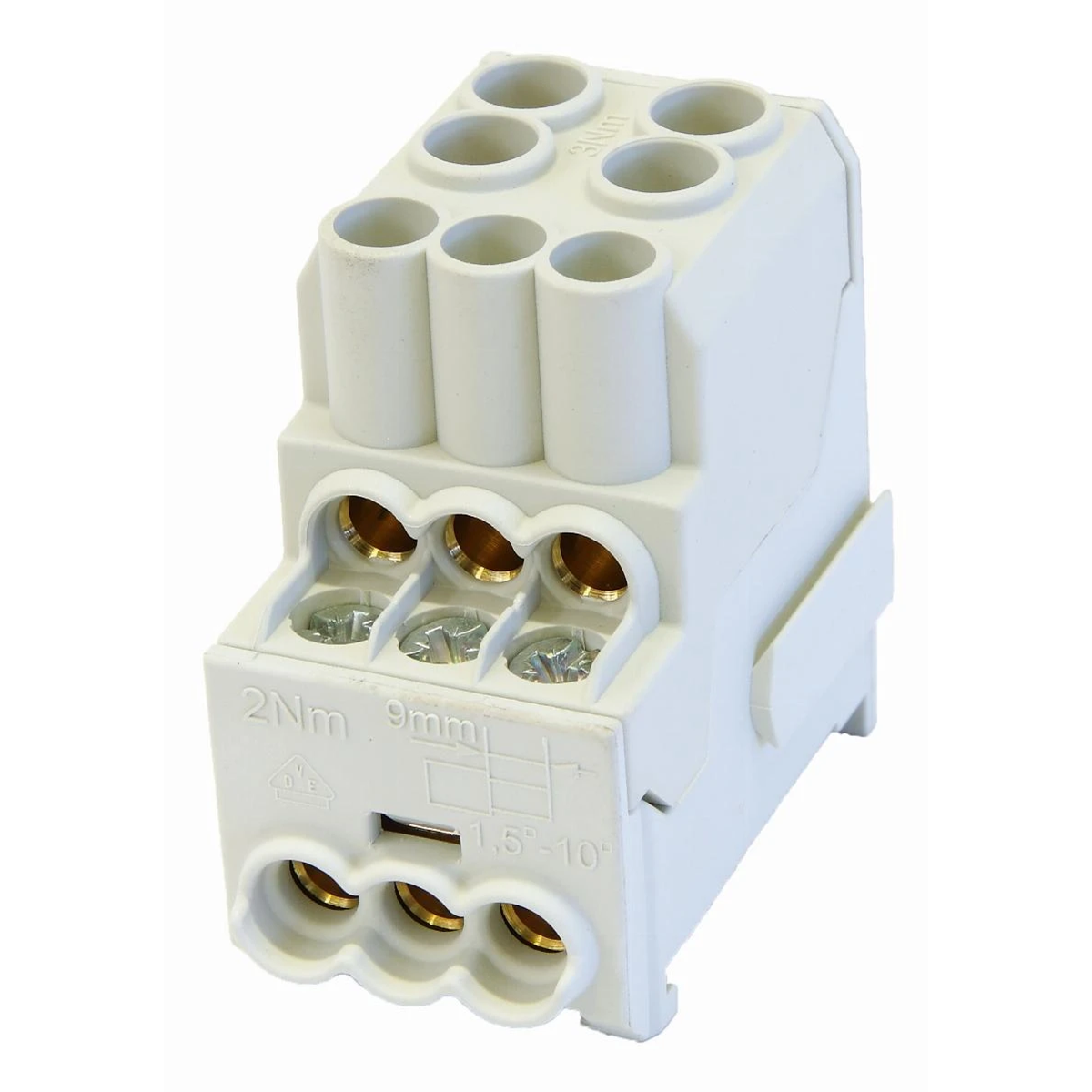

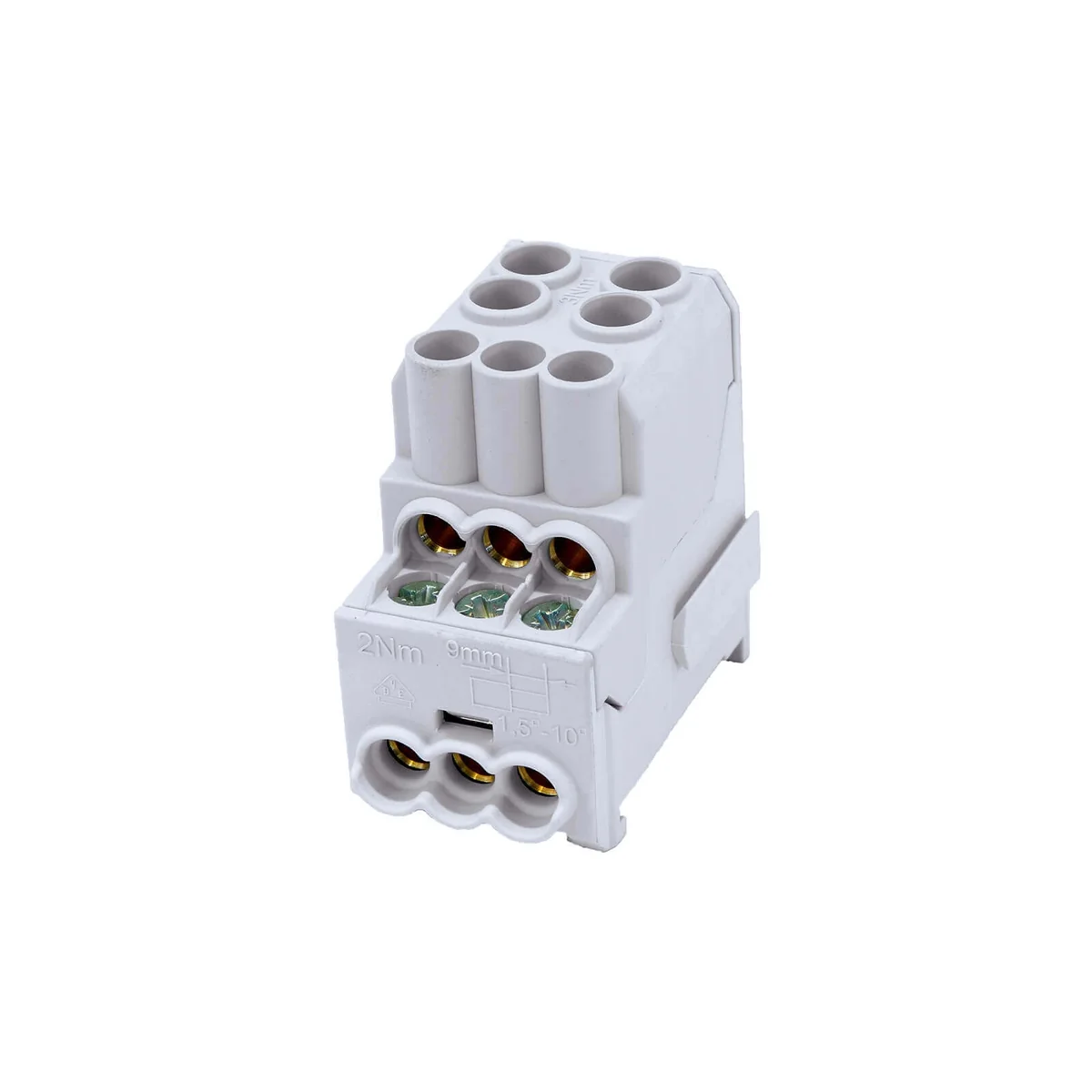

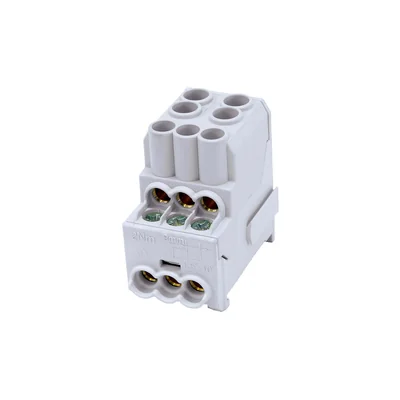

Al/Cu distribution block SDB 100 SIMBLOCK grey 81601002

local index:
RRR016SIME
Catalog No:
81601002
EAN code:
5907813233326
Manufacturer: SIMET
Depth [mm]: 55.4
Number of terminals: 8
Color: Gray
Price:
10,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 82 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Distribution block AL/CU 80010 SIMBLOCK Gray is a device distributing energy and power coming from one circuit. With their help, we can optimize the space in the designed switchgears or control blocks. Distribution blocks series SDB have a wide range of applications:

  • production plants,
  •  switchgear,
  •  wind power plants,
  • solar technologies
  • process automationó in production.

 They have a solid construction and a special construction, which protects us against accidental touching of active parts with a finger,  and are are  ;for mounting on a TS 35 rail.

Technical data

  • Depth [mm]
    55.4
  • Color
    Gray
  • Rated voltage [V]
    1000
  • Height [mm]
    49
  • Rated current Al [A]
    100
  • PKWIU
    27.33.13.0
  • Number of terminals
    8
  • Installation
    On the TH-35 rail
  • Width [mm]
    30.2
  • Wire cross-section [mm²]
    25
  • Rated current Cu [A]
    101
