el12 Switchboards and enclosures Switchgear accessories

Acti9 Smartlink Modbus communication bus A9XMSB11

local index:
RRR448SCHN
Catalog No:
A9XMSB11
EAN code:
3606480430602

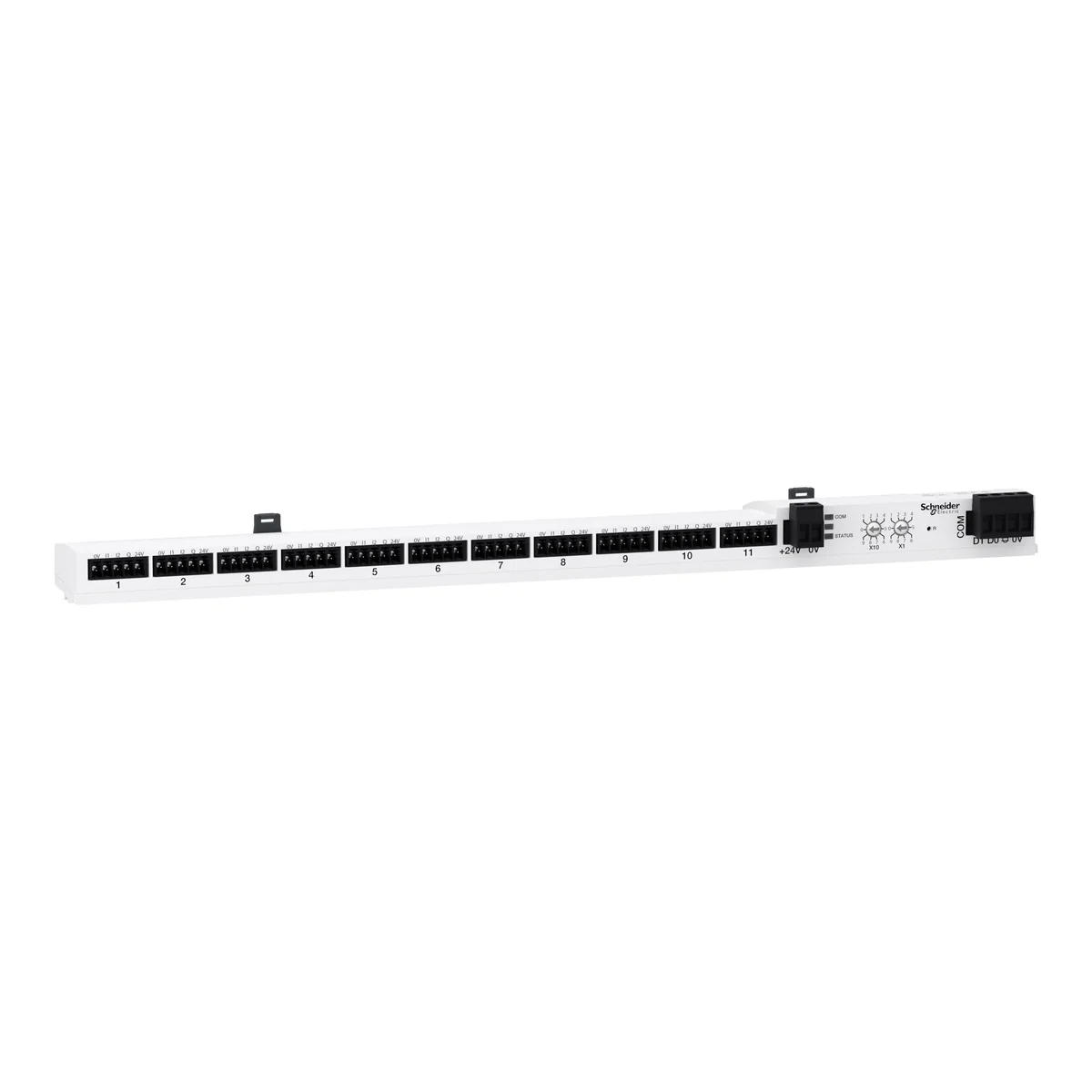

Acti9 Smartlink Modbus communication bus
Acti9 Smartlink Modbus communication bus

Click on the photo to enlarge

Price:
380,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Files to download

Product description

Acti9 Smartlink Modbus communication bus

Technical data

  • Color
    White
  • PKWIU
    27.12.40.0

Other technical data

  • Number of analogue inputs
    0
  • Analogue inputs configurable
    Yes
  • Number of digital inputs
    22
  • Digital inputs configurable
    Yes
  • Supply voltage DC
    24 ... 24 V
  • Input current at signal 1
    2.5 mA
  • Type of voltage (input voltage)
    DC
  • Output current at digital output
    0.1 A
  • Type of output voltage
    DC
  • Analogue input, current
    No
  • Analogue input, resistor
    No
  • Analogue input, thermocouple
    No
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Fieldbus connection over separate bus coupler possible
    No
  • Wall mounting/direct mounting
    Yes
  • Rack-assembly possible
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    359 mm
  • Depth
    42 mm
  • Number of analogue outputs
    0
  • Analogue outputs configurable
    No
  • Number of digital outputs
    11
  • Digital outputs configurable
    Yes
  • Voltage type (supply voltage)
    DC
  • Permitted voltage at input
    19.2 ... 28.8 V
  • Type of digital output
    Other
  • Output voltage at digital output
    24 ... 24 V
  • Short-circuit protection, digital outputs available
    Yes
  • Analogue input, voltage
    No
  • Analogue input, resistor temperature
    No
  • Analogue input signal configurable
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Plug-in connection
  • Rail mounting possible
    No
  • Front built-in possible
    No
  • SIL according to IEC 61508
    None
  • Suitable for safety functions
    No
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    23 mm

Manufacturer details

  • Manufacturer
    "SCHNEIDER ELECTRIC POLSKA" SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Address
    02-673 UL. KONSTRUKTORSKA 12
  • E-mail
    poland.helpdesk@pl.schneider-electric.com
  • Tax identification number
    5220011965
