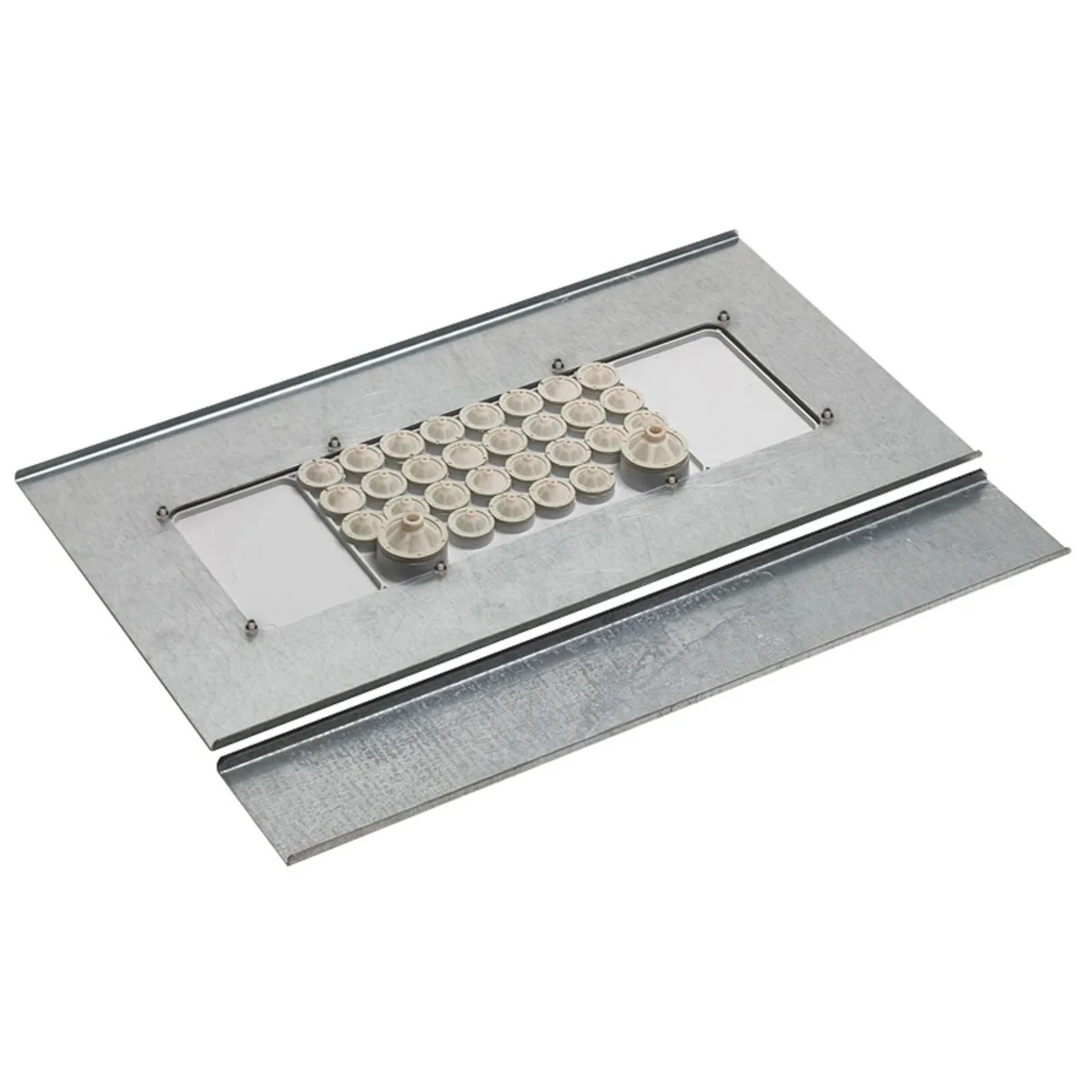

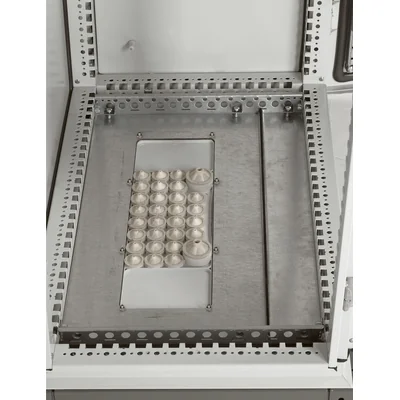

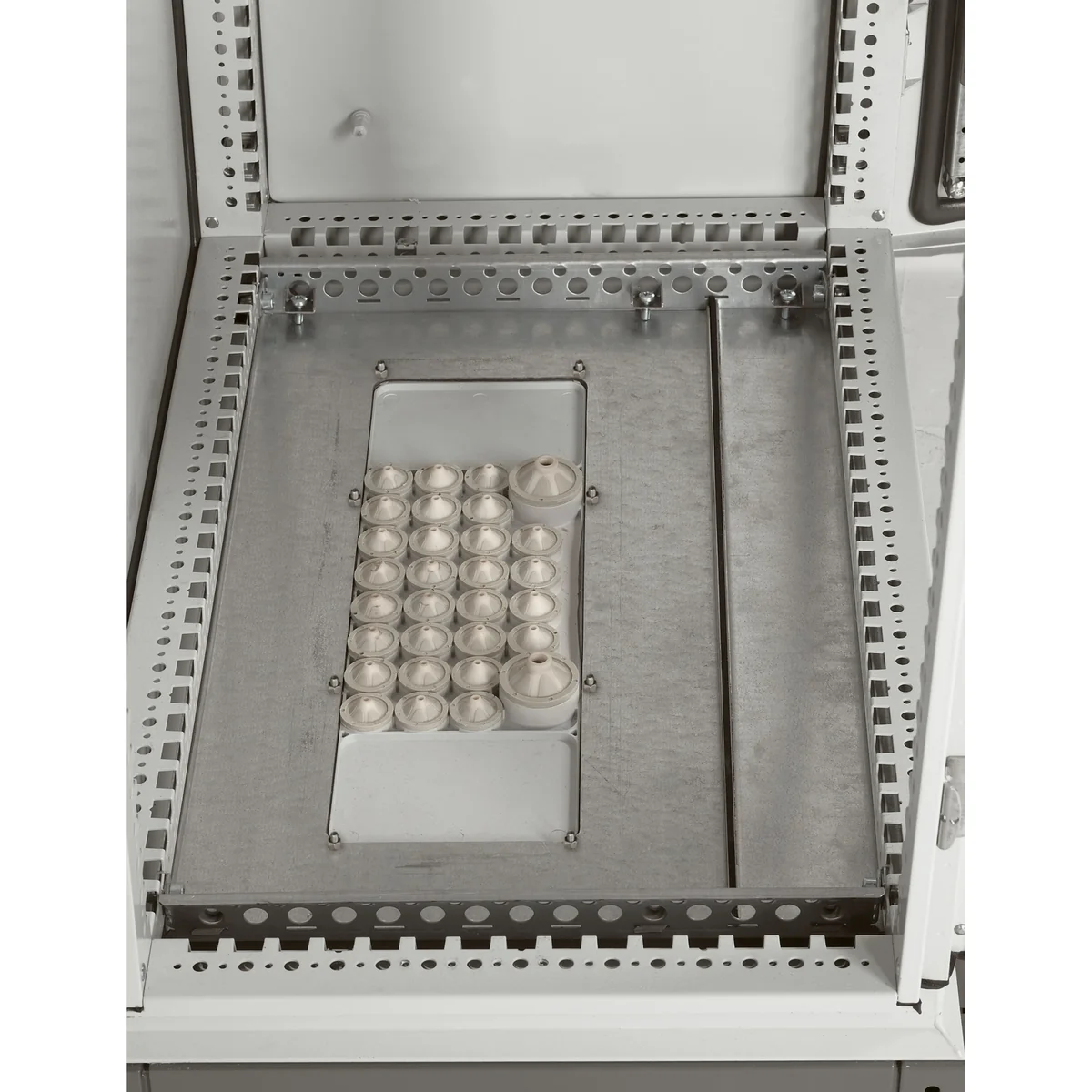

800 wide Cabstop plate 048174

Bottom plates with grommets for Altis cabinets:
- cable grommets (with brush seals, foam seals, crimped grommets and Cabstop)
Solid plates must be ordered separately, starting from a depth of 500 mm
For cabinets with a width of 1200 or 1600 mm, two sets of 600 and 800 mm are needed, respectively
Supplied with a set of screws and fasteners


Product parameters

Cabstop plates
Heat resistant polypropylene plates. Color RAL 7035
Cable entries incorporate self-locking jaws
By clamping onto the cable, they ensure mechanical tension is maintained, and parts
made of elastomer ensure tightness
Entry from ∅5 to ∅14 corresponding to PE ISO 16/20 and PE PG 9/11/13/16
Entry from ∅14 to ∅24 corresponding to PE ISO 25/32 and PE PG 21/22
Directly pierced with cable ( without tools)
Conduit design allows for quick cable replacement
Supplied with sealing plugs to plug entry holes
to ensure IP55 and cable extraction tools
