4mm2 neutral series self-clamping device for 10x3mm Cu busbars KYA04ND

Name: 4mm2 neutral series self-clamping device for 10x3mm Cu busbars
Brand: HAGER
SKU: RRR1L2HAGE
Price: 23.21 PLN
Availability: BackOrder

local index:

RRR1L2HAGE

Catalog number:

KYA04ND

EAN code:

3250613951290

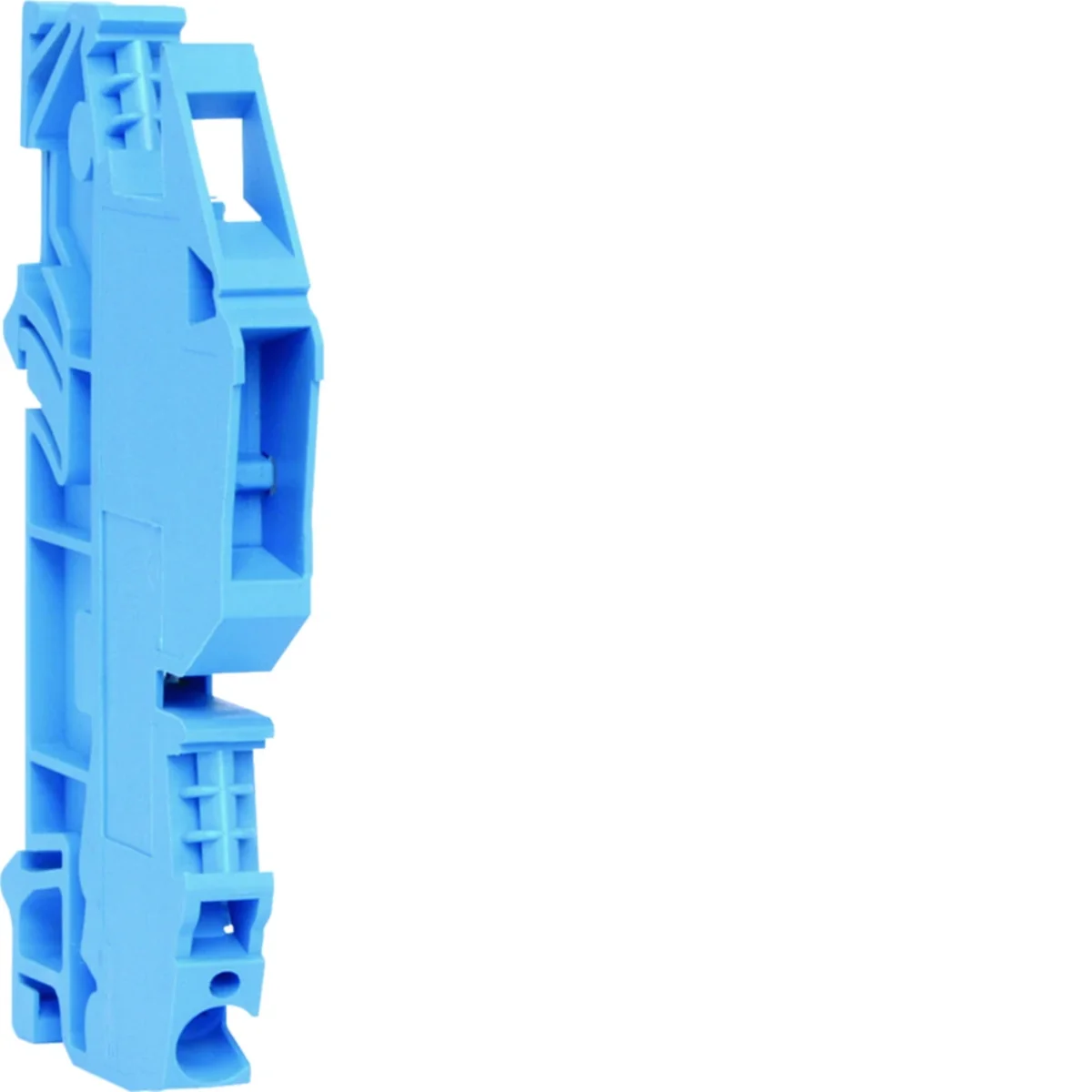

4mm2 neutral series self-clamping device for 10x3mm Cu busbars

Click on the photo to enlarge

Manufacturer: HAGER

Energy lost in cables [W]: 1

Depth [mm]: 6

Color: Blue

See full description

Price:

23,21 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Neutral series self-clamp:

4mm²,
for 10x3mm bridging busbars

Technical data

Energy lost in cables [W]

1
Color

Blue
Rated current [A]

25
Connection type

Quick Connect
Conductor cross-section (wire) [mm²]

0.13 - 6

Depth [mm]

6
Material

Polyamide
power loss [W]

1
Wire cross-section (cord) [mm²]

0.13 - 4
PKWIU

27.33.13.0

Other technical data

Rated current In

25 A
Mounting method

DIN rail (top hat rail) 35 mm
Width

69.5 mm
Depth

6 mm

Type of electric connection

Other
Material insulation body

Thermoplastic
Height

51.2 mm
Colour

Blue

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	100 pcs.	10000 pcs.	100 pcs.	10000 pcs.
Weight (kg)	1,126	137,600	1,126	137,600
Width (m)	0,120	0,800	0,120	0,800
Length (m)	0,050	0,600	0,050	0,600
Depth (m)	0,360	1,200	0,360	1,200
