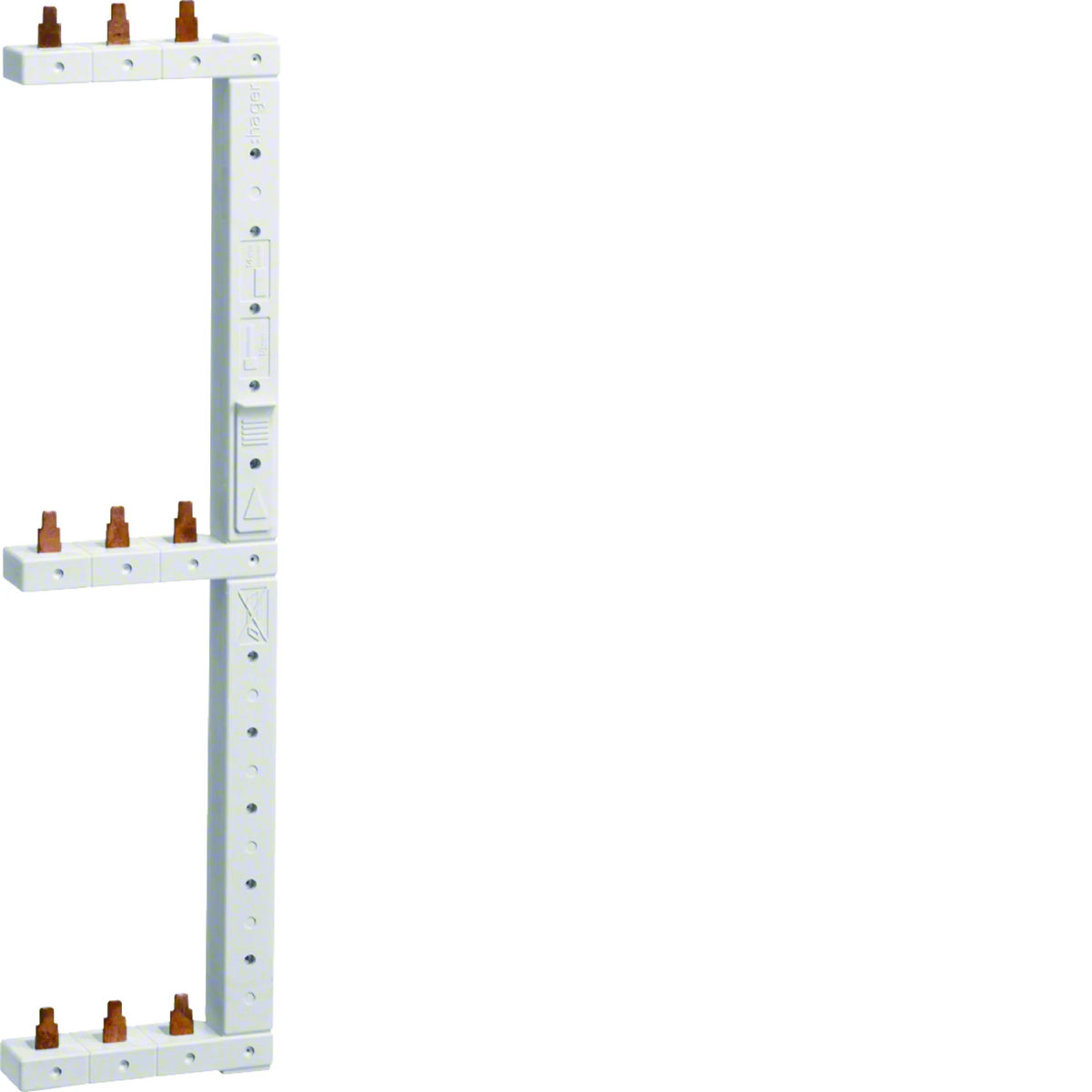

3P vertical comb rail for MCB 3-row right KCL368R

local index:
RPU087HAGE
Catalog No:
KCL368R
EAN code:
3250613730277
Manufacturer: HAGER
Length [mm]: 271
Color: Gray
Number of poles: 3P
Price:
34,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

3P vertical comb rail for MCB 3-row right

Technical data

  • Length [mm]
    271
  • Number of poles
    3P
  • Rated switching voltage [V]
    110/415
  • Maximum operating voltage [V]
    456
  • Conductor cross-section (wire) [mm²]
    10
  • Color
    Gray
  • Rated current [A]
    63
  • Rated impulse voltage [kV]
    4
  • Connection type
    comb rail
  • PKWIU
    27.33.13.0

Other technical data

  • Number of phases
    3
  • Module width
    17.8 mm
  • Length
    271 mm
  • Type of electric connection
    Pin
  • Rated surge voltage
    4 kV
  • Suitable for devices with N-conductor
    No
  • Number of poles
    3
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Max. rated operation voltage Ue
    415 V
  • Suitable for devices with auxiliary switch
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 4 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,122 0,865 5,590 157,160
Width (m) 0,051 0,096 0,313 0,800
Length (m) 0,039 0,081 0,212 0,998
Depth (m) 0,271 0,321 0,360 1,200
