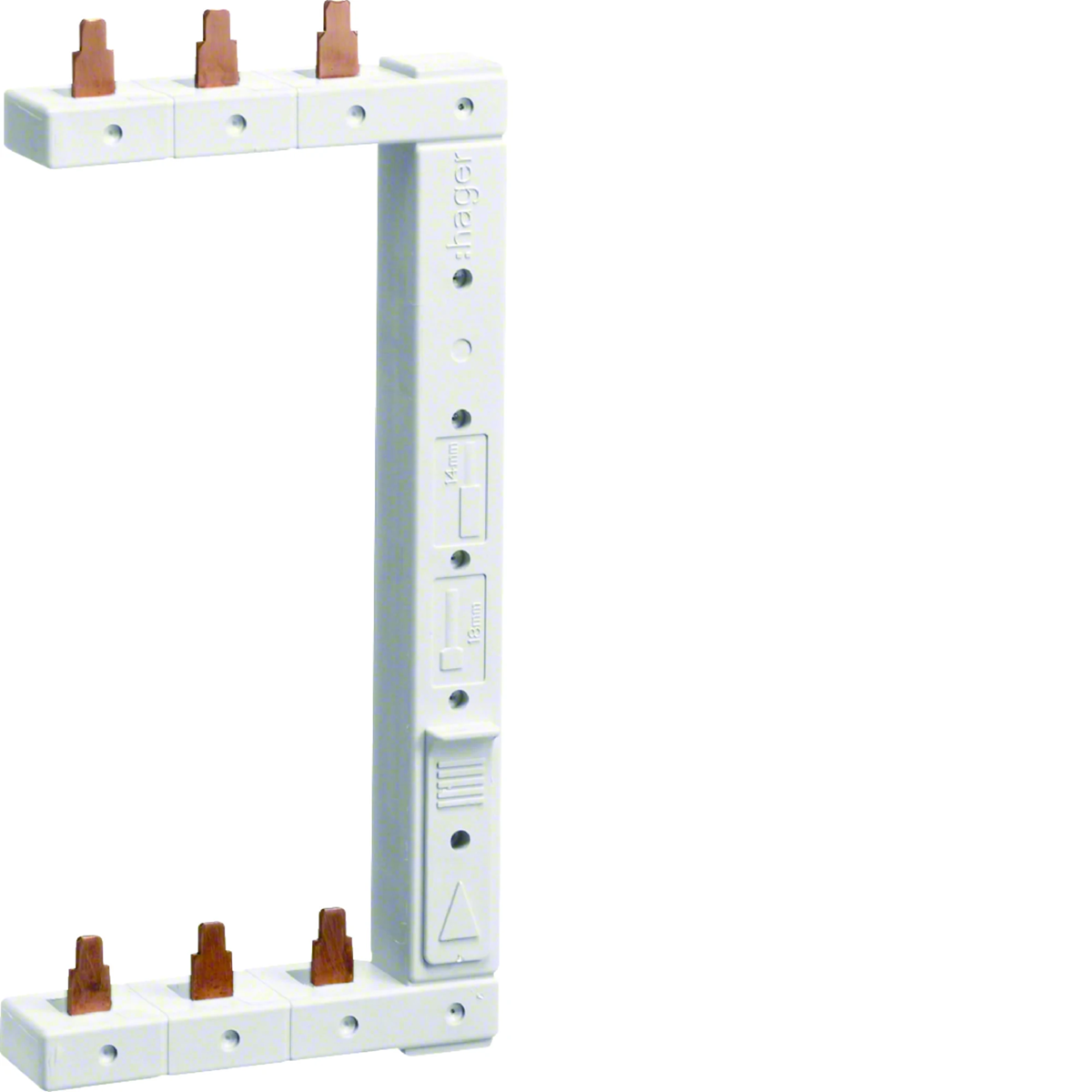

3P vertical comb rail for MCB, 2-row, right KCL363R

local index:
RPU086HAGE
Catalog No:
KCL363R
EAN code:
3250613730253
Manufacturer: HAGER
Length [mm]: 146
Color: Gray
Number of poles: 3P
Price:
27,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

3P vertical comb rail for MCB, 2-row, right

Technical data

  • Length [mm]
    146
  • Number of poles
    3P
  • Rated switching voltage [V]
    110/415
  • Maximum operating voltage [V]
    456
  • Conductor cross-section (wire) [mm²]
    10
  • Color
    Gray
  • Rated current [A]
    63
  • Rated impulse voltage [kV]
    4
  • Connection type
    comb rail
  • PKWIU
    27.33.13.0

Other technical data

  • Number of phases
    3
  • Module width
    17.8 mm
  • Length
    146 mm
  • Type of electric connection
    Pin
  • Rated surge voltage
    4 kV
  • Suitable for devices with N-conductor
    No
  • Number of poles
    3
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Max. rated operation voltage Ue
    415 V
  • Suitable for devices with auxiliary switch
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 8 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,077 0,988 6,280 173,720
Width (m) 0,097 0,097 0,316 0,800
Length (m) 0,084 0,082 0,211 0,994
Depth (m) 0,032 0,321 0,365 1,200
