3F current rail S-543F-10 45.310
local index:
RPU003ELOP
Catalog No:
45.310
EAN code:
5905548287324
Price:
23,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

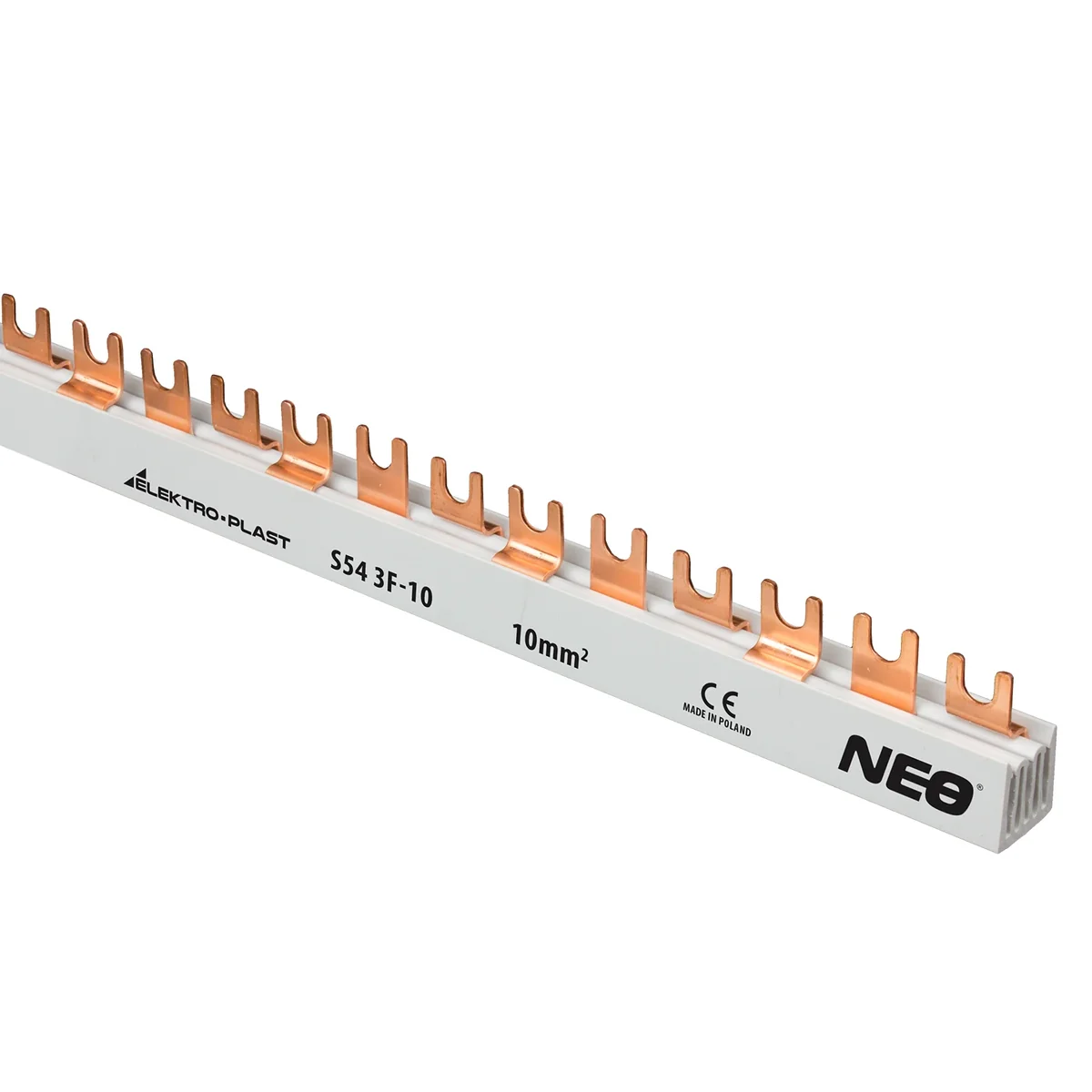

One and three-way. Easy-to-install insulated copper busbars are suitable for connecting switches and electrical devices of the "S" type.
Technical data
-

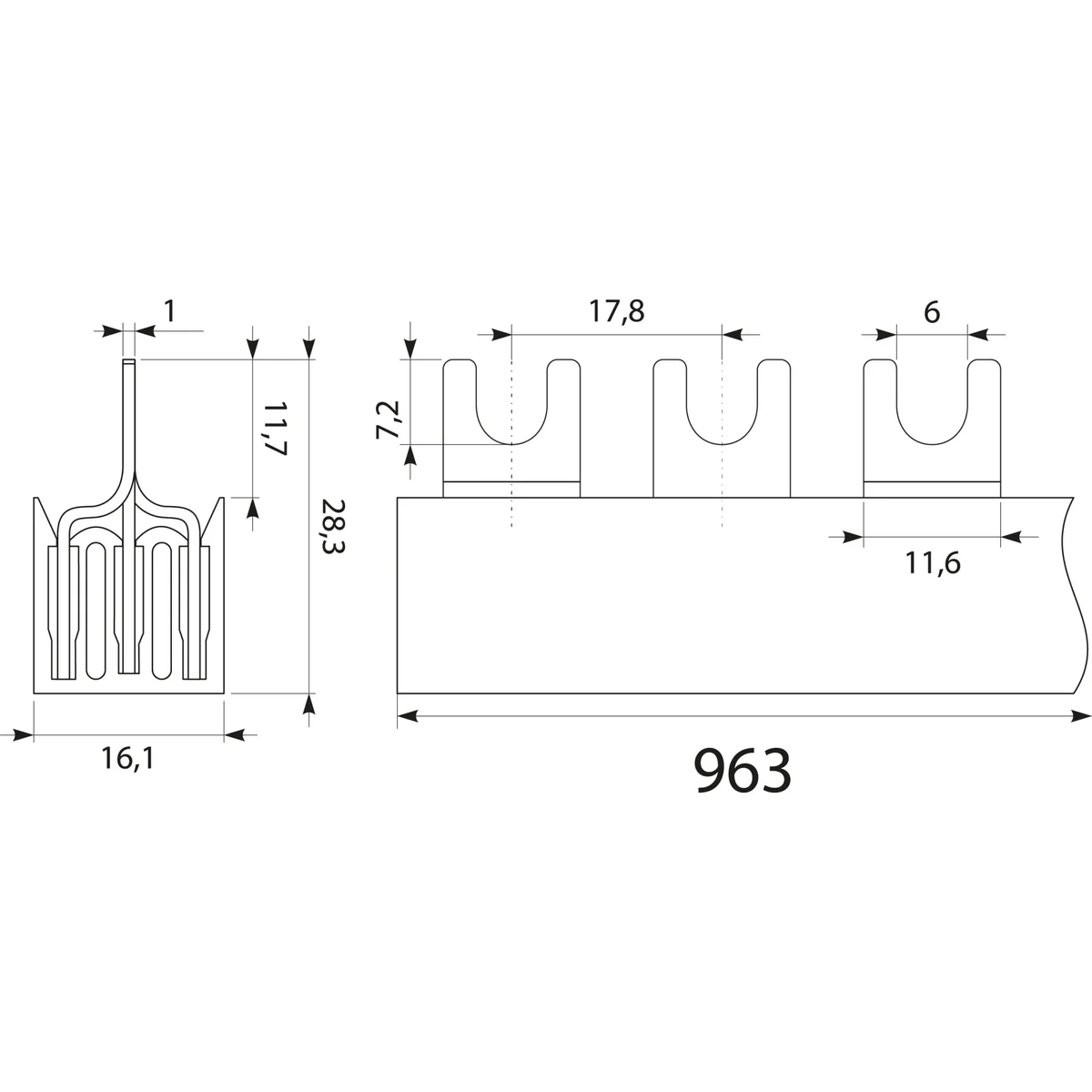

Length [mm]968
-
cross section [mm²]10
-
PKWIU27.12.40.0
-
Number of tracks3f
-
Current [A]63
Other technical data
-
Number of phases3
-
Suitable for number of devices54
-
Cross section10 mm²
-
Rated permanent current Iu63 A
-
InsulatedYes
-
Max. rated operation voltage Ue400 V
-
Suitable for devices with N-conductorNo
-
Number of poles3
-
Module width17.8 mm
-
Length965 mm
-
Type of electric connectionFork
-
Rated surge voltage2.5 kV
-
Rated short-time withstand current lcw0.063 kA
-
Suitable for devices with auxiliary switchNo
Manufacturer details
-
ManufacturerZ.P.H.ELEKTRO-PLAST SP.Z O.O.
-
Address62-860 UL.ROGATKA 14
-
E-mail
-
Tax identification number9680893101
Bulk packaging
| A kind of package | Sztuka | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,512 | - |
