Click on the photo to enlarge

BAKS

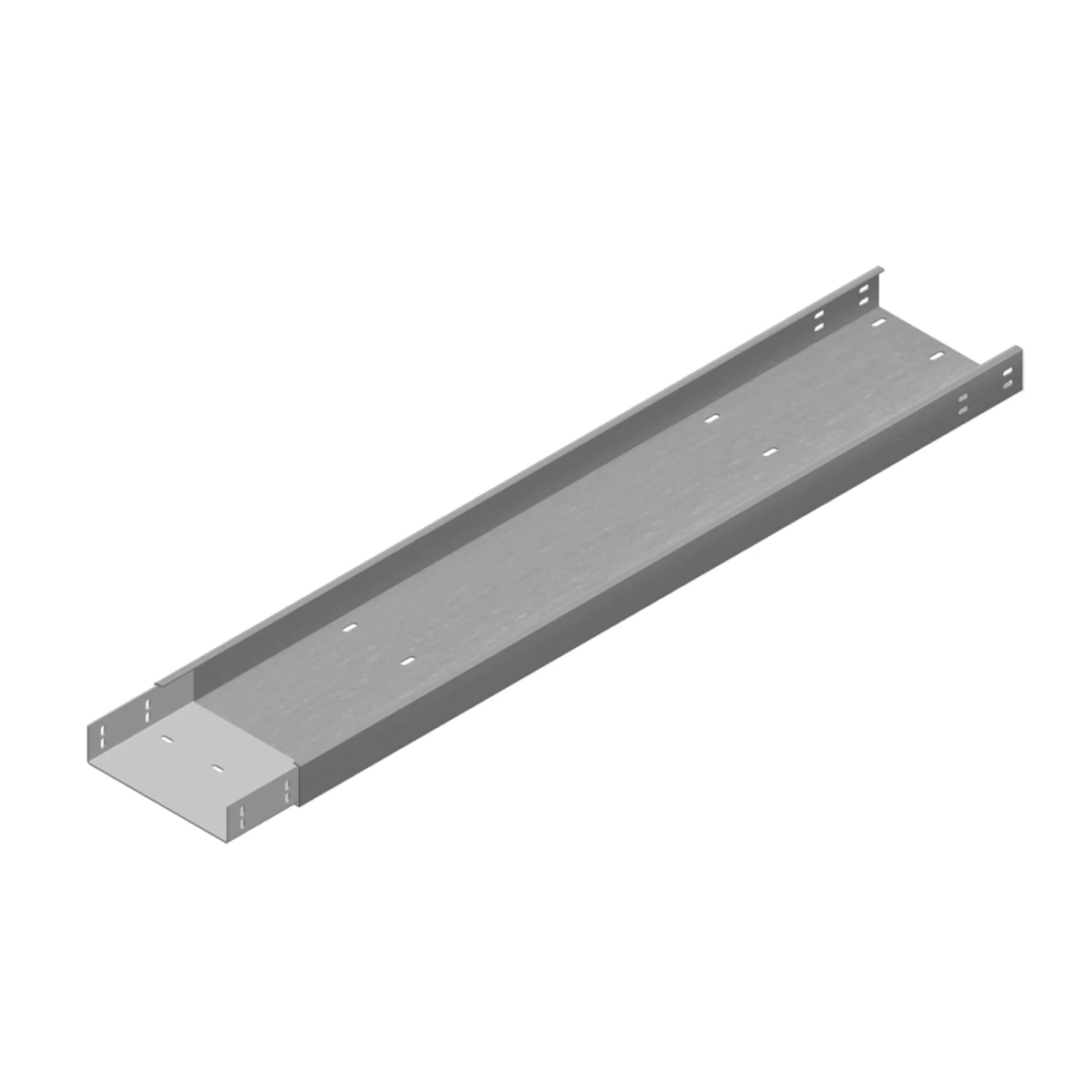

Tray with welded connector, KZLP50H50/3 352705

Name: Tray with welded connector, KZLP50H50/3
Brand: BAKS
SKU: TKM097BAKS
Price: 57.54 PLN

local index:

TKM097BAKS

Catalog No:

352705

EAN code:

5900993039160

Price:

57,54 €

gross / pcs.

including VAT 23%

Availability:

Product on individual request

Delivery:

Large-size product

From 68,97 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

details

Payment methods:

details

Go to section:

Product description Technical data

Product description

Tray with welded connector, KZLP50H50/3

Report an error

Technical data

Length [mm]

3000
Width [mm]

50
Compliance with standards

PN-EN 103462011

Material

galvanized steel
Type

KZLP50H50/3

Other technical data

Height

50 mm
Material thickness

1.5 mm
Useful cross section

2300 mm²
Side perforation

no
NATO-mounting holes

no
Model szerokorozpiętościowy

no
Material

Steel
Material quality

Other
Colour

Other

Width

50 mm
Length

3000 mm
With cover

no
Bottom perforation

no
Model

Integrated connector
Suitable for circuit integrity

no
Stainless steel, pickled

no
Surface protection

Hot-dip galvanized
Weight

2.4 kg/m

Catalog cards, diagrams, certificates

BAKS-TM-BS-EN.pdf

iso_pl.pdf

iso2_pl.pdf

Rekomendacja-Techniczna-ITB-RT1082_2012.pdf

SKM_C284e19060514120.pdf

Atest-Higieniczny.pdf

Deklaracja-Zgodności-CE-2020.10.16-standard.pdf
