el12 Running cables and wires Channels Metal channels Tray, KPL50H42/3
Tray, KPL50H42/3

Click on the photo to enlarge

Tray, KPL50H42/3
BAKS

Tray, KPL50H42/3 140405

local index:
TKM482BAKS
Catalog No:
140405
EAN code:
5900993030044
Price:
8,91 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
Large-size product
From 65,01 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

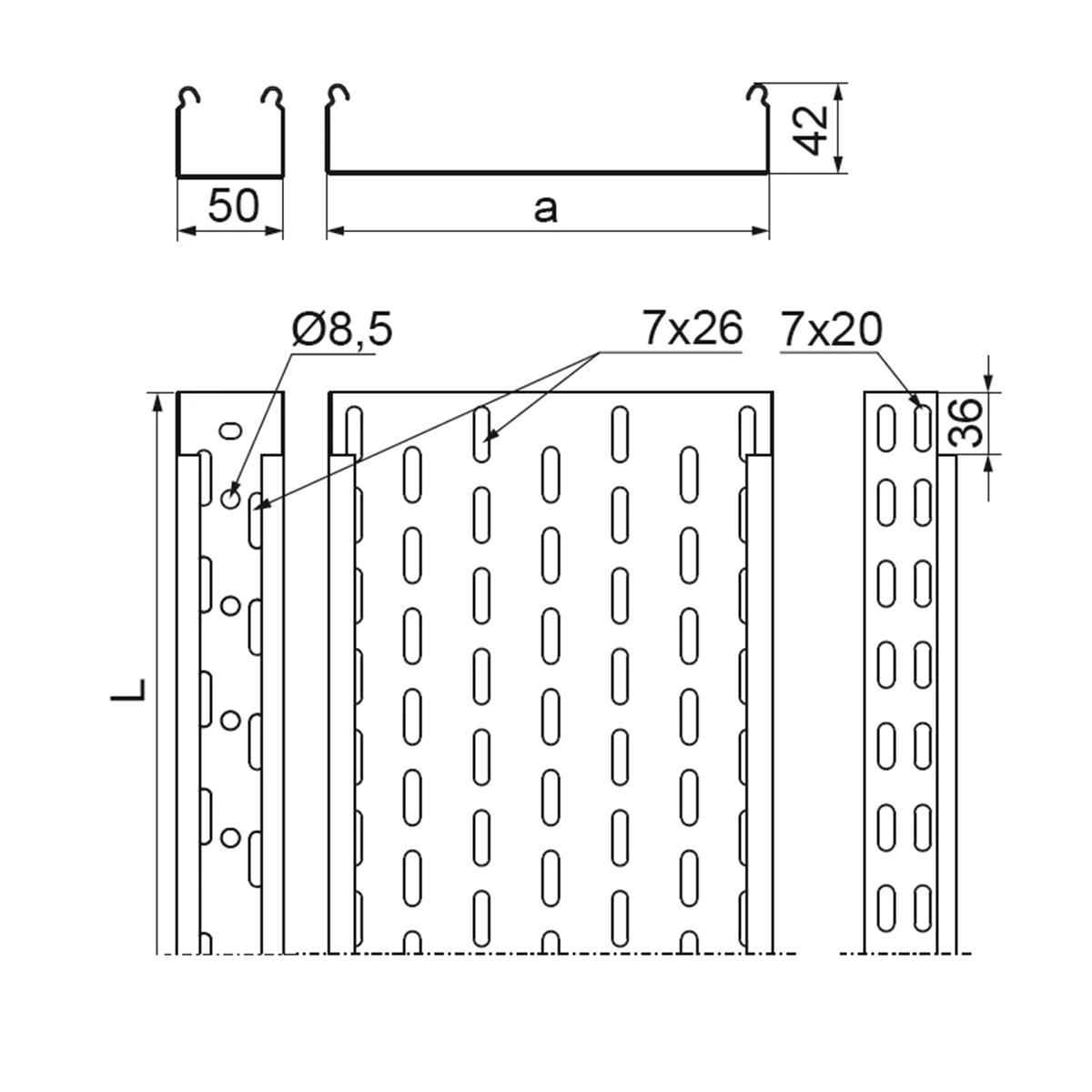

Perforated steel tray for  cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.

Print the product sheet Report an error

Technical data

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KPL50H42/3
  • net weight [kg]
    0.76
  • Sheet thickness [mm]
    0.7
  • Width [mm]
    50
  • Weight 1m [kg]
    0.76
  • Compliance with standards
    PN-EN 103462011

Other technical data

  • Height
    42 mm
  • Material thickness
    0.7 mm
  • With cover
    no
  • Bottom perforation
    yes
  • Model
    Integrated connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    0.73 kg/m
  • Width
    0.05 mm
  • Length
    3000 mm
  • Side perforation
    yes
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
