Tray, KPL50H42/2 140305
local index:
TKM120BAKS
Catalog No:
140305
EAN code:
5900993030037
Large-size product
Price:
5,99 €
gross / pcs.
(including VAT 23%)
7,88 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

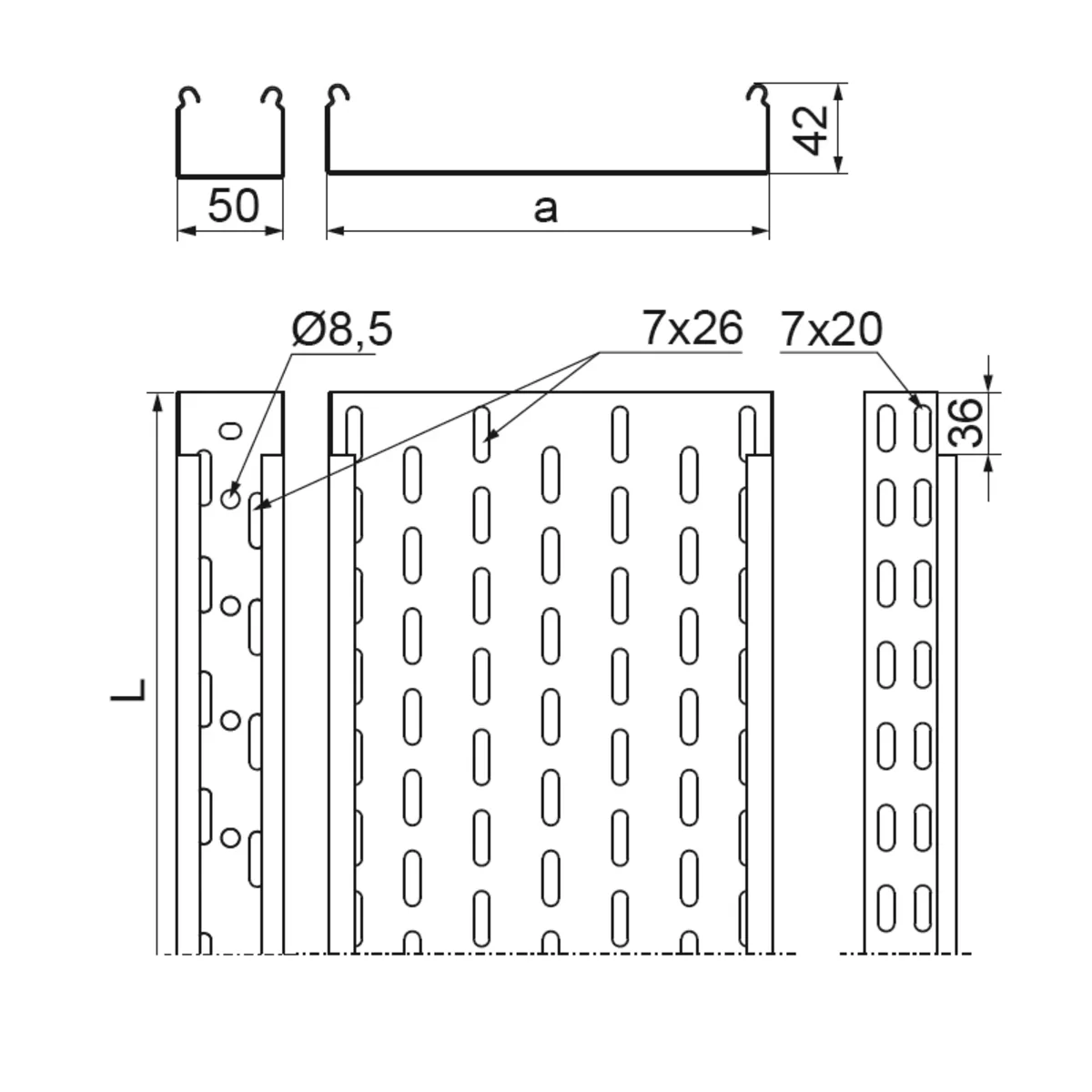

Perforated steel tray for cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.
Technical data
-
Length [mm]2000
-
Materialgalvanized steel
-
TypeKPL50H42/2
-
Weight 1m [kg]0.76
-
PKWIU25.11.23.0
-
Sheet thickness [mm]0.7
-
Width [mm]50
-
Weight [g]760
-
Compliance with standardsPN-EN 103462011
Other technical data
-
Height42 mm
-
Material thickness0.7 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight0.73 kg/m
-
Width0.05 mm
-
Length2000 mm
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
