el12 Running cables and wires Channels Metal channels Tray, KPL35H30/3

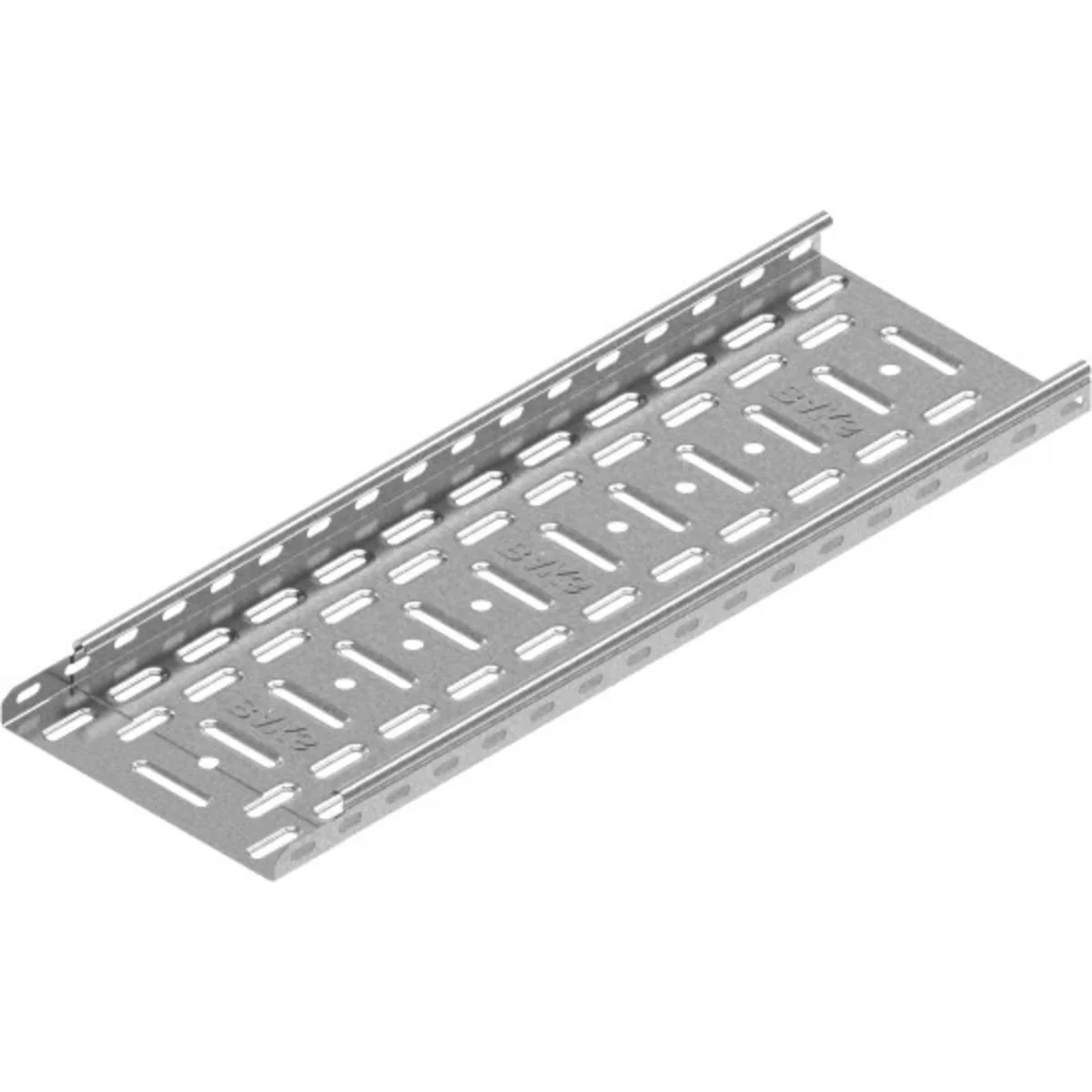

Tray, KPL35H30/3

Click on the photo to enlarge

Tray, KPL35H30/3
BAKS

Tray, KPL35H30/3 130403

local index:
TKM026BAKS
Catalog No:
130403
EAN code:
5900993029017
Price:
7,90 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
Large-size product
From 65,09 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Perforated steel tray for  cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.

Print the product sheet Report an error

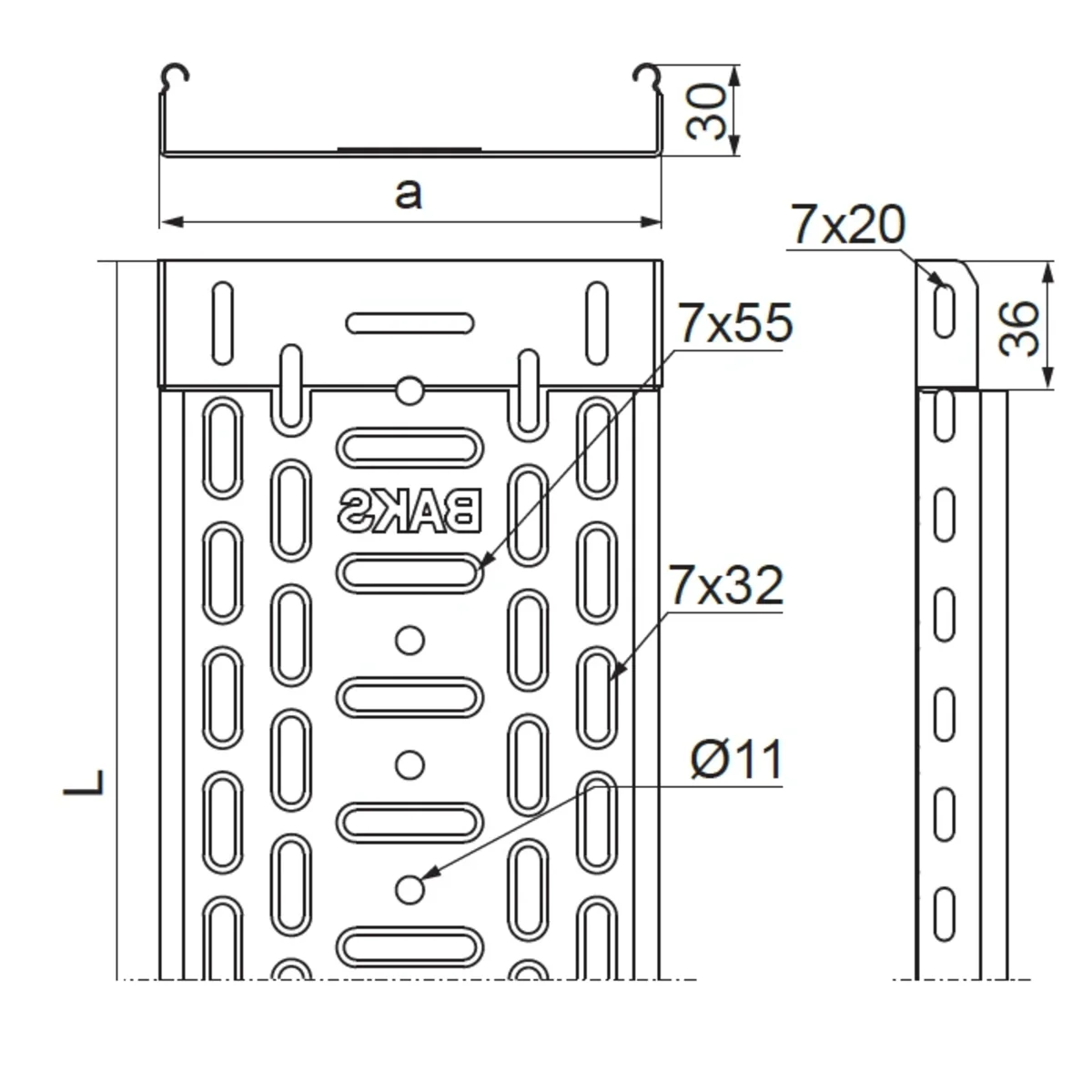

Technical data

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KPL35H30/3
  • net weight [kg]
    0.57
  • Sheet thickness [mm]
    0.7
  • Width [mm]
    35
  • Weight 1m [kg]
    0.57
  • Compliance with standards
    PN-EN 103462011

Other technical data

  • Height
    30 mm
  • Material thickness
    0.7 mm
  • Useful cross section
    850 mm²
  • Side perforation
    yes
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    35 mm
  • Length
    3000 mm
  • With cover
    no
  • Bottom perforation
    yes
  • Model
    Integrated connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    0.53 kg/m
