BAKS

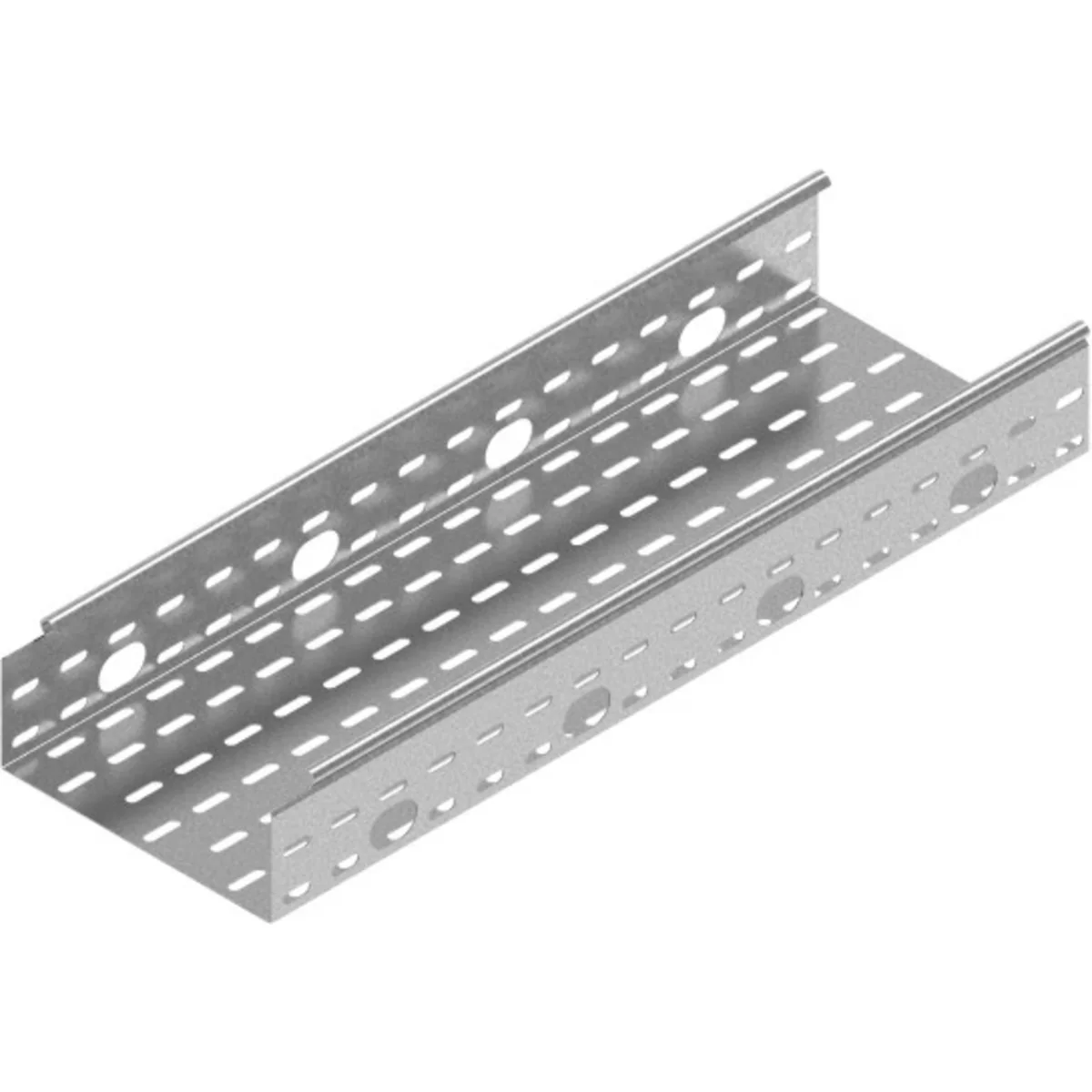

Tray, KOJ400H80/3 N 181040

local index:
TKM415BAKS
Catalog No:
181040
EAN code:
5900993035926
Price:
51,96 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
Large-size product
From 68,97 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

The possibility of connecting KOJ... trays by sliding one into the other and assembly without connectors. KOP... cable trays can only be connected using connectors (no cut-out in the tray side). For a large order, a cable tray with a length of 2 m. Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

Print the product sheet Report an error

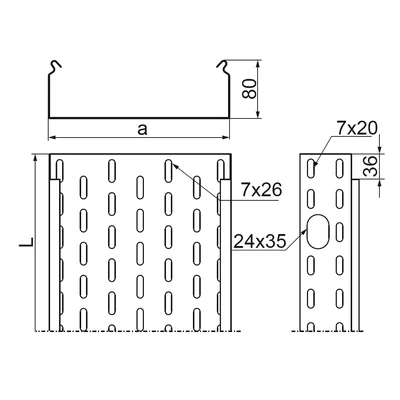

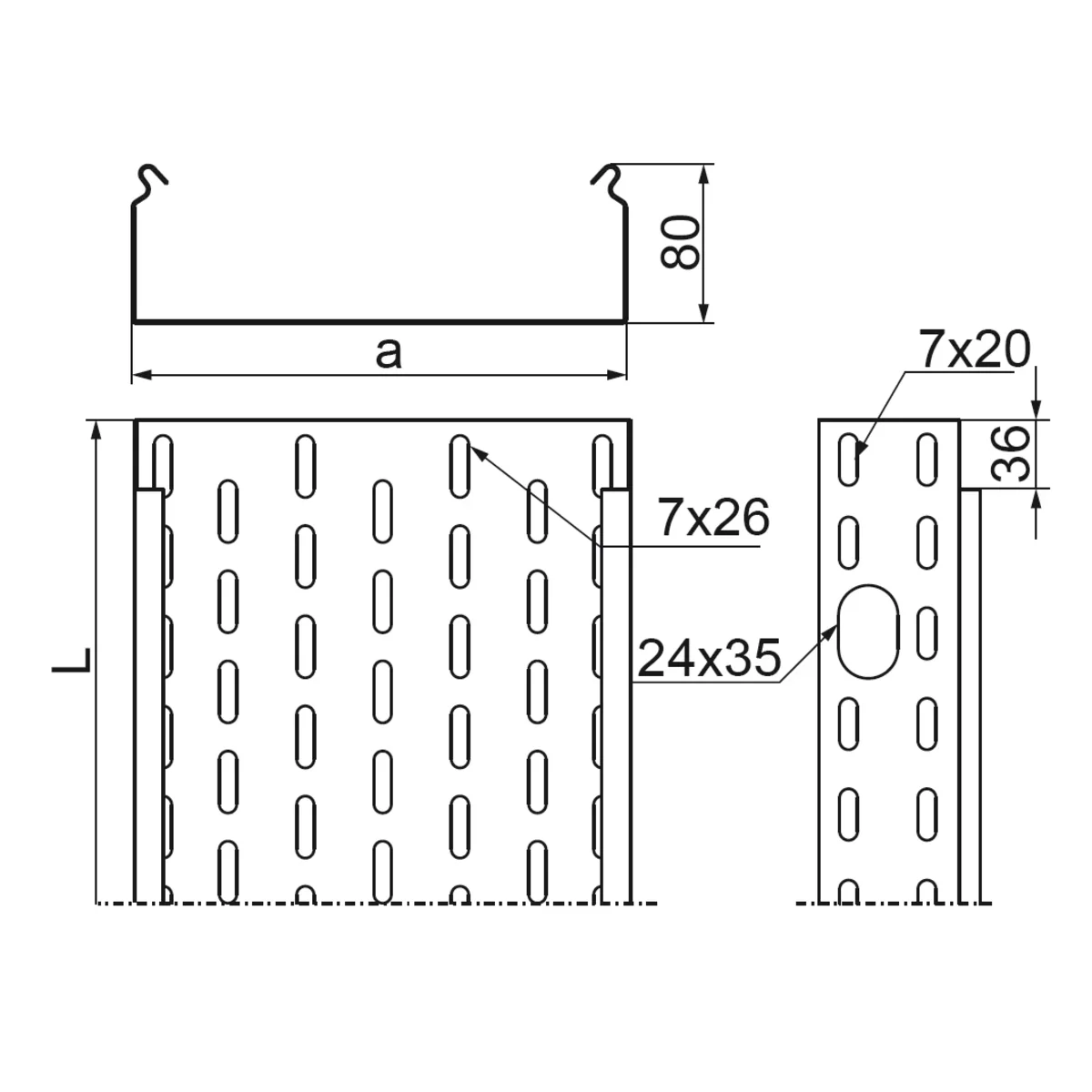

Technical data

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KOJ400H80/3N
  • Compliance with standards
    PN-EN 103462011
  • Sheet thickness [mm]
    1
  • Width [mm]
    400
  • Weight 1m [kg]
    3.87

Other technical data

  • Height
    80 mm
  • Material thickness
    1 mm
  • Useful cross section
    31800 mm²
  • Side perforation
    yes
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    400 mm
  • Length
    3000 mm
  • With cover
    no
  • Bottom perforation
    yes
  • Model
    Integrated connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    3.64 kg/m

Catalog cards, diagrams, certificates

BAKS-TM-BS-EN.pdf
Certyfikat-i-raport-VDE-ciągłość-elektryczna-koryt-drabin-i-ceowników-EN_DE.pdf
iso_pl.pdf
iso2_pl.pdf
Rekomendacja-Techniczna-ITB-RT1082_2012.pdf
SKM_C284e19060514120.pdf
Atest-Higieniczny.pdf
Deklaracja-Zgodności-CE-2020.10.16-standard.pdf
