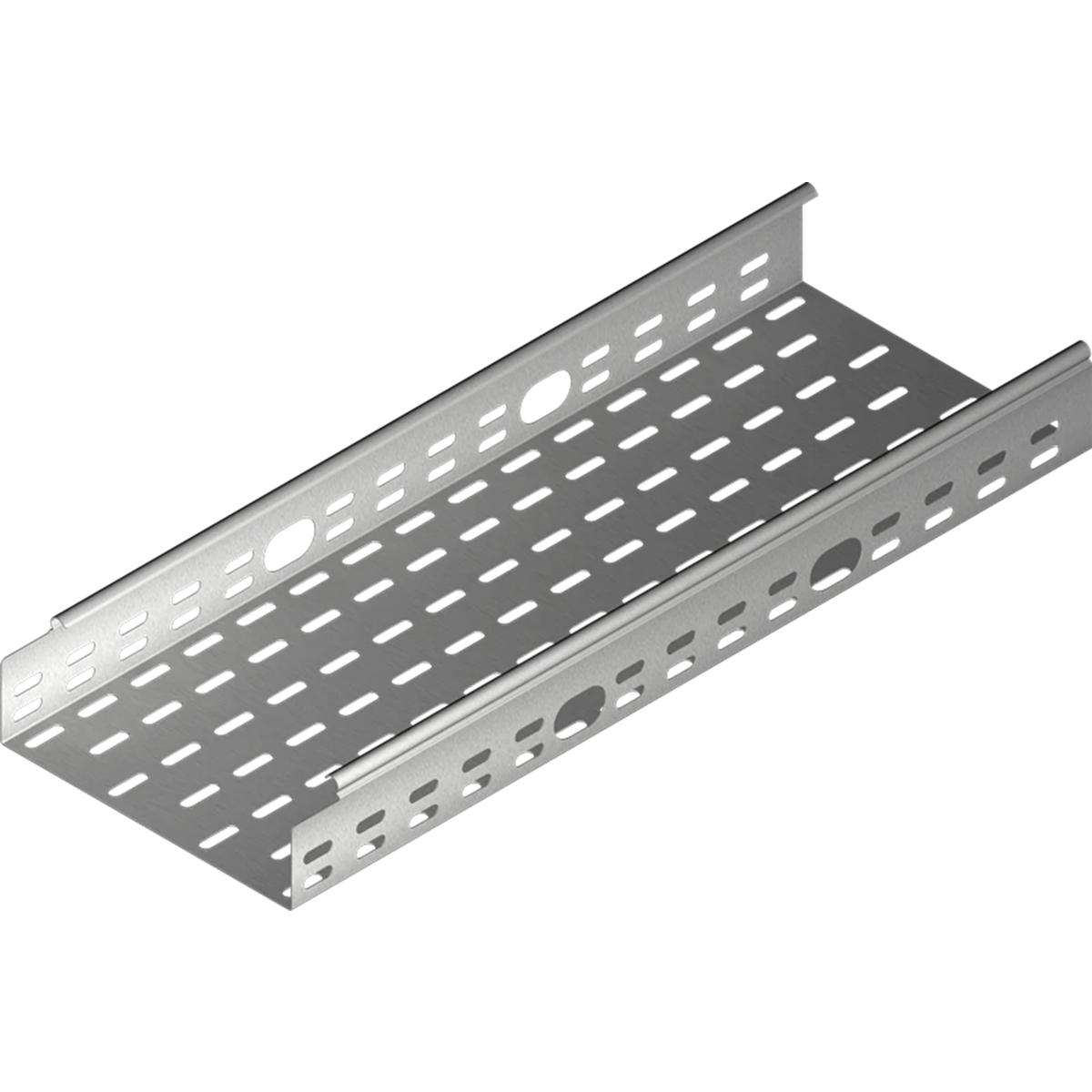

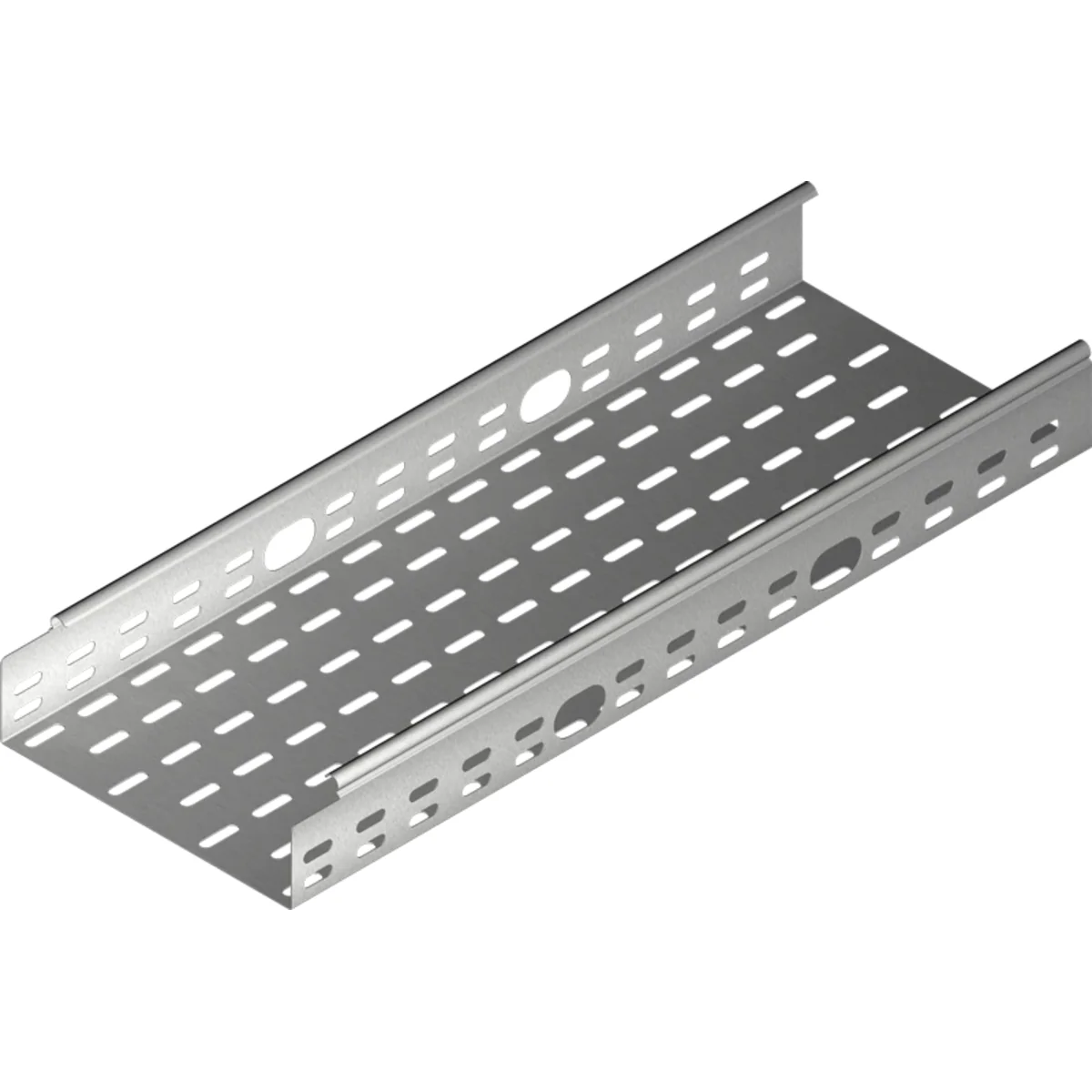

Tray, KOJ400H60/3 N 161040
local index:
TKM419BAKS
Catalog No:
161040
EAN code:
5900993034523
Large-size product
Price:
44,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The possibility of connecting the trays by sliding one into the other and assembly without connectors. For a large order, a cable tray with a length of 2 m. For assembly, use screw sets SGK M6x12 or SG M6x12
Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKOJ400H60/3N
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]1
-
Width [mm]400
-
Weight 1m [kg]3.65
-
PKWIU25.11.23.0
Other technical data
-
Height60 mm
-
Material thickness1 mm
-
Useful cross section23800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width400 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight2.87 kg/m
Manufacturer details
-
ManufacturerBAKS Kazimierz Sielski
-
Address05-480 KARCZEW JAGODNE 5
-
Phone number
-
E-mail
-
Tax identification number5320102041
-
GLN5909000679306
