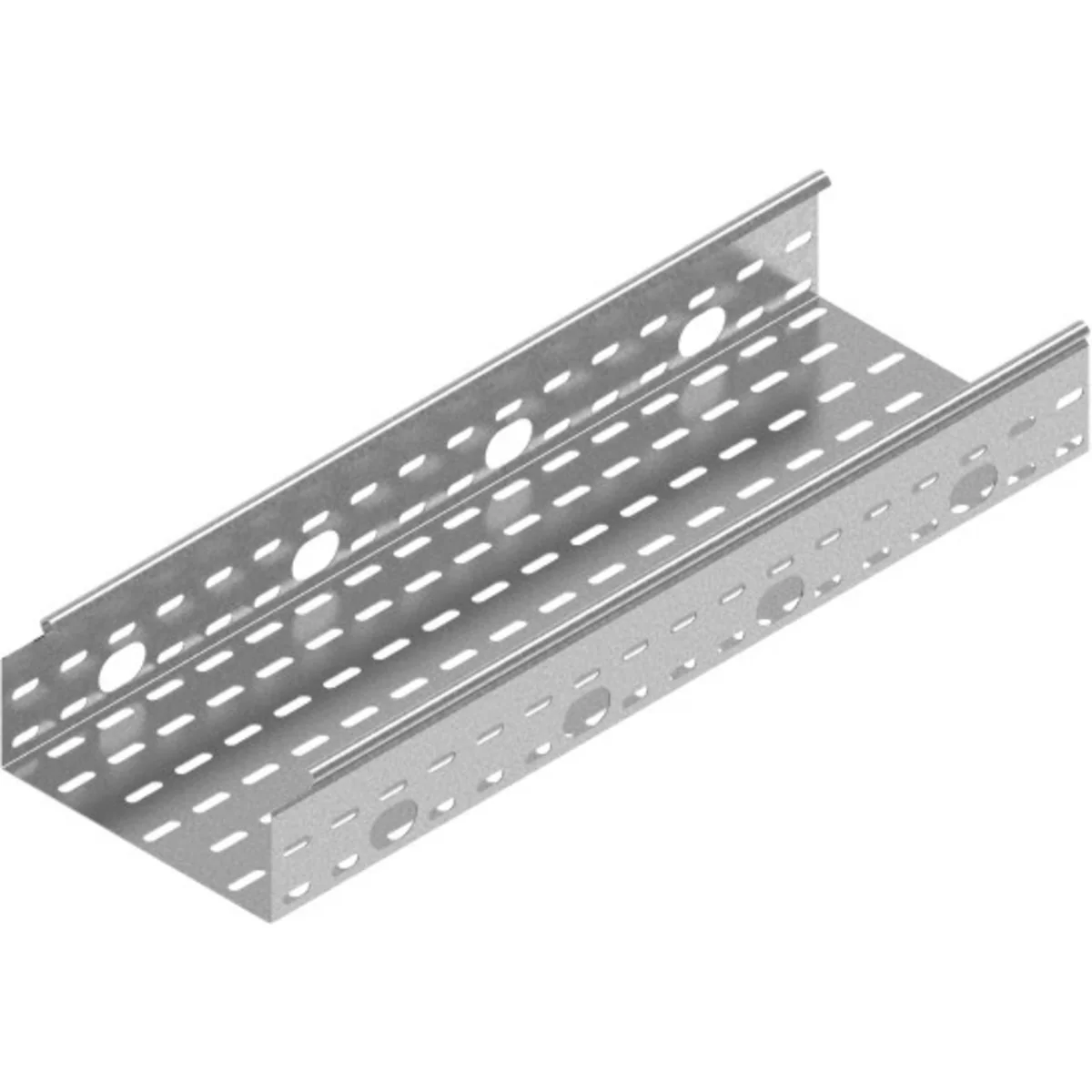

Tray, KOJ300H80/3 N 181030
local index:
TKM142BAKS
Catalog No:
181030
EAN code:
5900993035902
Large-size product
Price:
41,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The possibility of connecting KOJ... trays by sliding one into the other and assembly without connectors. KOP... cable trays can only be connected using connectors (no cut-out in the tray side). For a large order, a cable tray with a length of 2 m.
Screw sets SGK M6x12 or SG M6x12 should be used for assembly.
Screw sets SGK M6x12 or SG M6x12 should be used for assembly.
Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKOJ300H80/3N
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]1
-
Width [mm]300
-
Weight 1m [kg]3.21
-
PKWIU25.11.23.0
Other technical data
-
Height80 mm
-
Material thickness1 mm
-
Useful cross section23800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width300 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight2.87 kg/m
