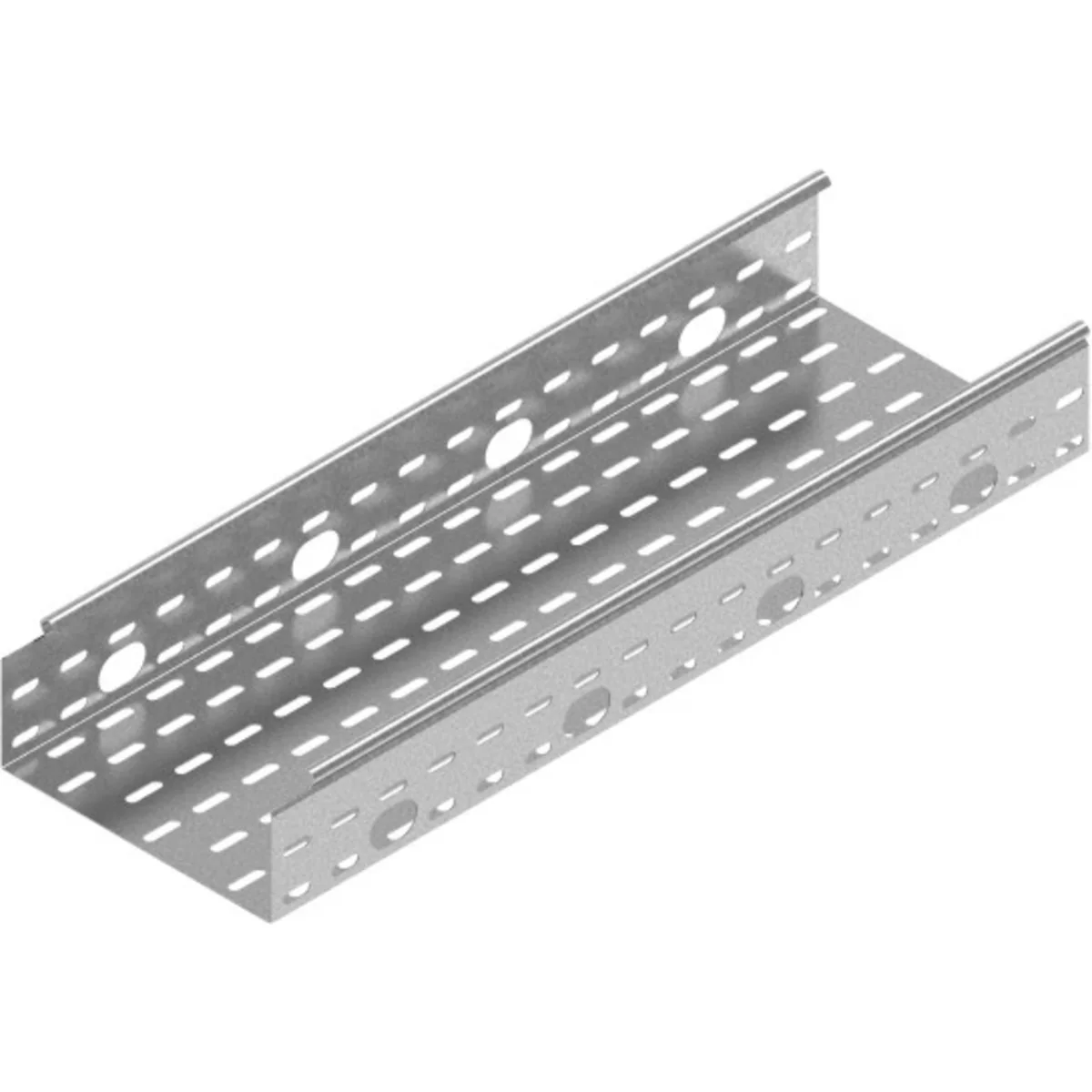

Tray, KOJ200H80/3 N 181020

local index:
TKM009BAKS
Catalog No:
181020
EAN code:
5900993035889
Manufacturer: BAKS
Length [mm]: 3000
Sheet thickness [mm]: 1
Material: galvanized steel
Large-size product
Price:
31,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The possibility of connecting KOJ... trays by sliding one into the other and assembly without connectors. KOP... cable trays can only be connected using connectors (no cut-out in the tray side). For a large order, a cable tray with a length of 2 m. Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

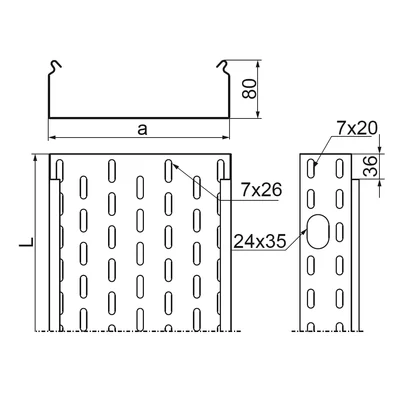

Technical data

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KOJ200H80/3N
  • Compliance with standards
    PN-EN 103462011
  • Sheet thickness [mm]
    1
  • Width [mm]
    200
  • Weight 1m [kg]
    2.36
  • PKWIU
    25.11.23.0

Other technical data

  • Height
    80 mm
  • Material thickness
    1 mm
  • Useful cross section
    15800 mm²
  • Side perforation
    Yes
  • NATO-mounting holes
    No
  • Model szerokorozpiętościowy
    No
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    200 mm
  • Length
    3000 mm
  • With cover
    No
  • Bottom perforation
    Yes
  • Model
    Integrated connector
  • Suitable for circuit integrity
    No
  • Stainless steel, pickled
    No
  • Surface protection
    Hot-dip galvanized
  • Weight
    2.33 kg/m
