Running cables and wires
Channels
Metal channels

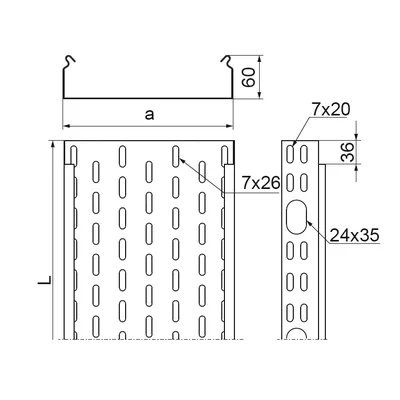

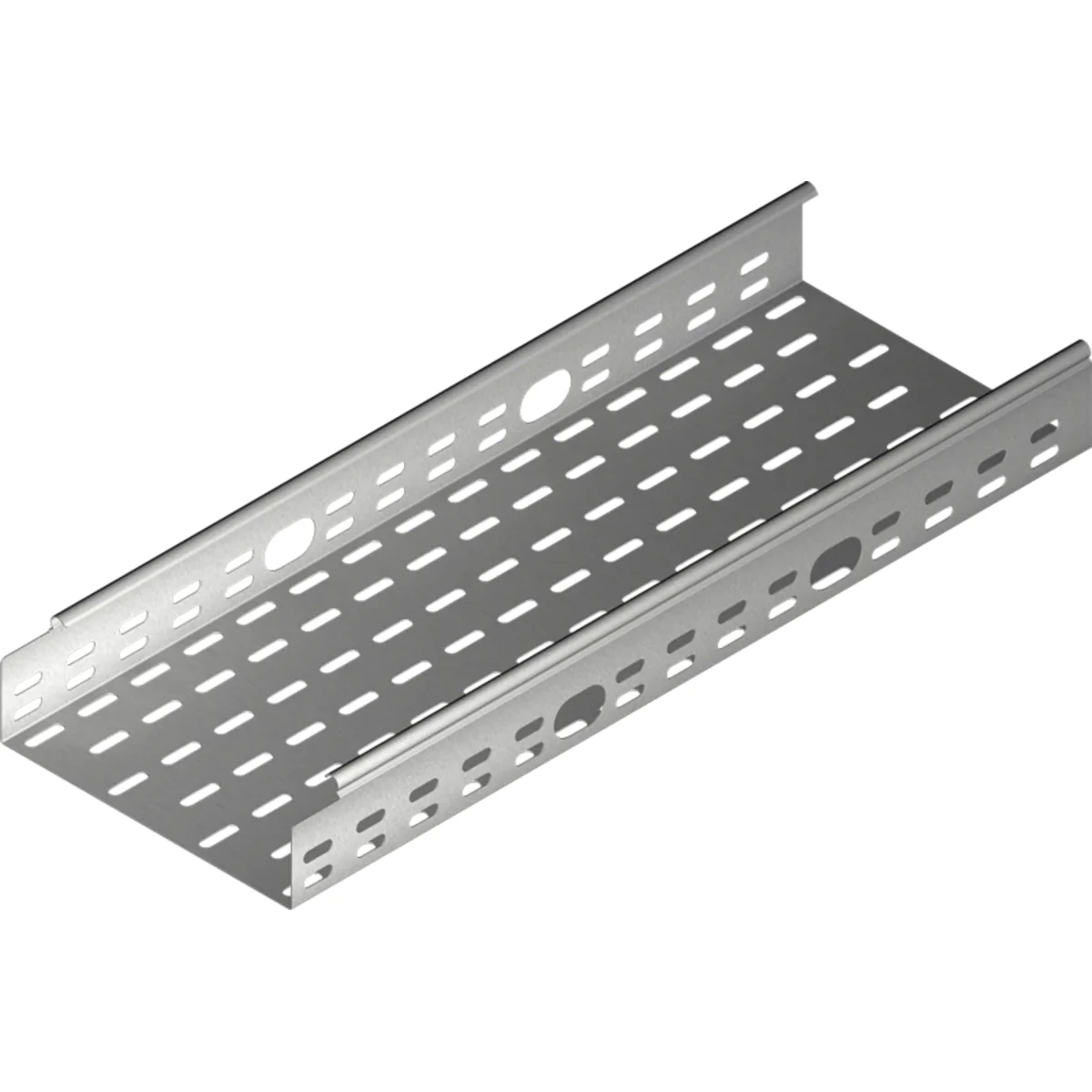

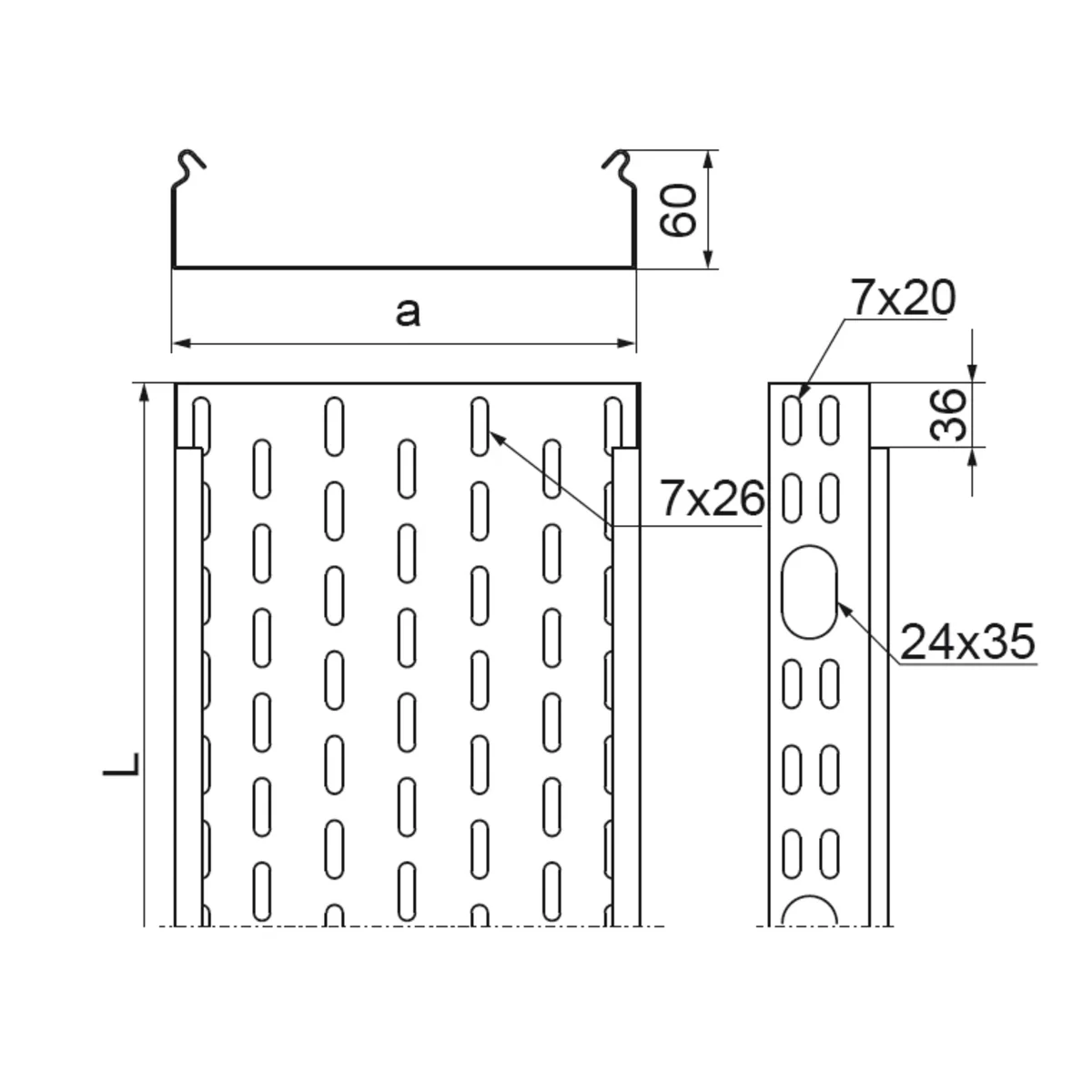

Tray, KOJ200H60/3 N 161620
local index:
TKM420BAKS
Catalog No:
161620
EAN code:
5900993034486
Click on the photo to enlarge
Manufacturer:
BAKS
Length [mm]:
3000
Sheet thickness [mm]:
1
Material:
galvanized steel
See full description
Large-size product
Price:
25,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
The possibility of connecting the trays by sliding one into the other and assembly without connectors. For a large order, a cable tray with a length of 2 m. For assembly, use screw sets SGK M6x12 or SG M6x12
Technical data
Length [mm]
3000
Material
galvanized steel
Type
KOJ200H60/3N
Compliance with standards
PN-EN 103462011
Sheet thickness [mm]
1
Width [mm]
200
Weight 1m [kg]
2.28
PKWIU
25.11.23.0
Other technical data
Height
60 mm
Material thickness
1 mm
Useful cross section
11800 mm²
Side perforation
Yes
NATO-mounting holes
No
Model szerokorozpiętościowy
No
Material
Steel
Material quality
Other
Colour
Other
Width
200 mm
Length
3000 mm
With cover
No
Bottom perforation
Yes
Model
Integrated connector
Suitable for circuit integrity
No
Stainless steel, pickled
No
Surface protection
Hot-dip galvanized
Weight
2.28 kg/m
Files to download
BAKS-TM-BS-EN.pdf
Certyfikat-i-raport-VDE-ciągłość-elektryczna-koryt-drabin-i-ceowników-EN_DE.pdf
iso_pl.pdf
iso2_pl.pdf
Rekomendacja-Techniczna-ITB-RT1082_2012.pdf
SKM_C284e19060514120.pdf
Atest-Higieniczny.pdf
Deklaracja-Zgodności-CE-2020.10.16-standard.pdf
Atest-Higieniczny.pdf
BAKS-TM-BS-EN.pdf
Certyfikat-i-raport-VDE-ciągłość-elektryczna-koryt-drabin-i-ceowników-EN_DE.pdf
