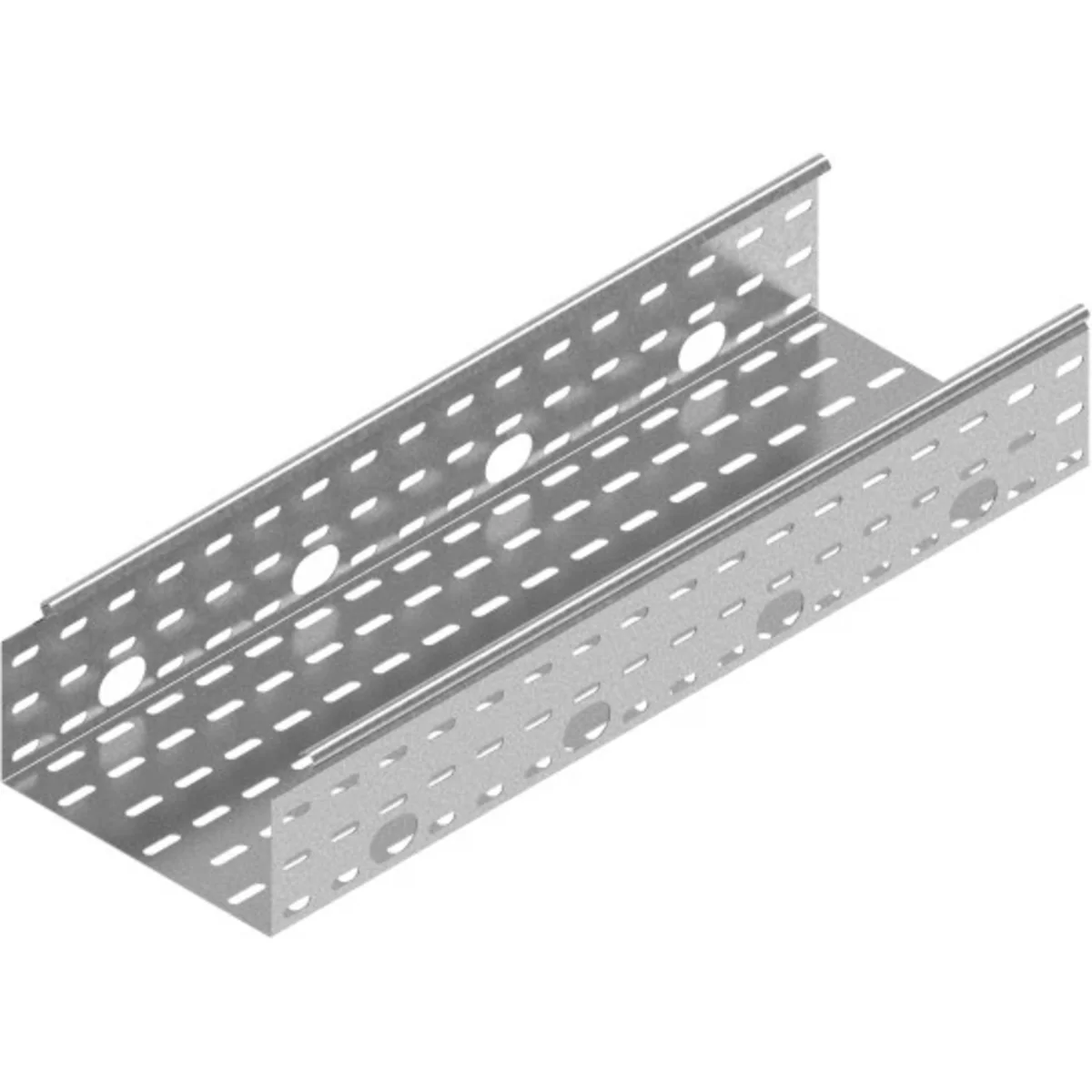

Tray, KOJ200H100/3 N 111020

Lokaler Index:
TKM065BAKS
Katalognummer:
111020
EAN-Code:
5900993037289
Hersteller: BAKS
Length [mm]: 3000
Sheet thickness [mm]: 1
Material: galvanized steel
Großformatiges Produkt
Preis:
33,92 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

The possibility of connecting KOJ...N trays by sliding one into the other and assembly without connectors. KOP...N cable trays can only be connected using connectors (no cut-out in the tray side). For a large order, a cable tray with a length of 2 m. Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

Technische Daten

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KOJ200H100/3N
  • Compliance with standards
    PN-EN 103462011
  • Sheet thickness [mm]
    1
  • Width [mm]
    200
  • Weight 1m [kg]
    2.82
  • PKWIU
    25.11.23.0

Weitere technische Daten

  • Height
    100 mm
  • Material thickness
    1 mm
  • Useful cross section
    19800 mm²
  • Side perforation
    Yes
  • NATO-mounting holes
    No
  • Model szerokorozpiętościowy
    No
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    200 mm
  • Length
    3000 mm
  • With cover
    No
  • Bottom perforation
    Yes
  • Model
    Integrated connector
  • Suitable for circuit integrity
    No
  • Stainless steel, pickled
    No
  • Surface protection
    Hot-dip galvanized
  • Weight
    2.15 kg/m

Hersteller-Details

  • Hersteller
    BAKS Kazimierz Sielski
  • Adresse
    05-480 Karczew Jagodne 5 Polska
