el12 Running cables and wires Channels Metal channels Tray, KOJ100H100/3 N

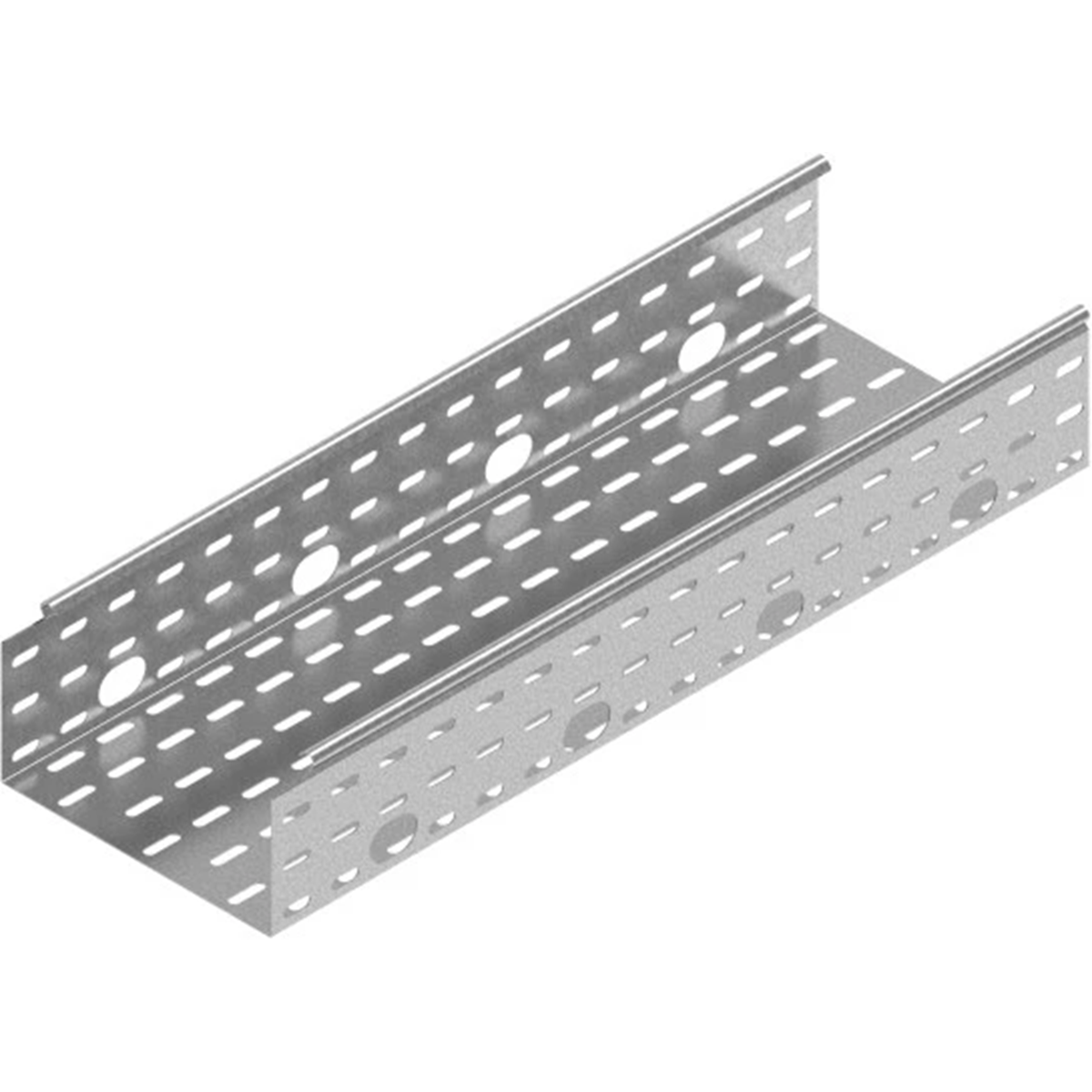

Tray, KOJ100H100/3 N

Click on the photo to enlarge

Tray, KOJ100H100/3 N
BAKS

Tray, KOJ100H100/3 N 111010

local index:
TKM085BAKS
Catalog No:
111010
EAN code:
5900993037241
Price:
24,69 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
Large-size product
From 65,01 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

The possibility of connecting KOJ...N trays by sliding one into the other and assembly without connectors. KOP...N cable trays can only be connected using connectors (no cut-out in the tray side). For a large order, a cable tray with a length of 2 m. Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

Print the product sheet Report an error

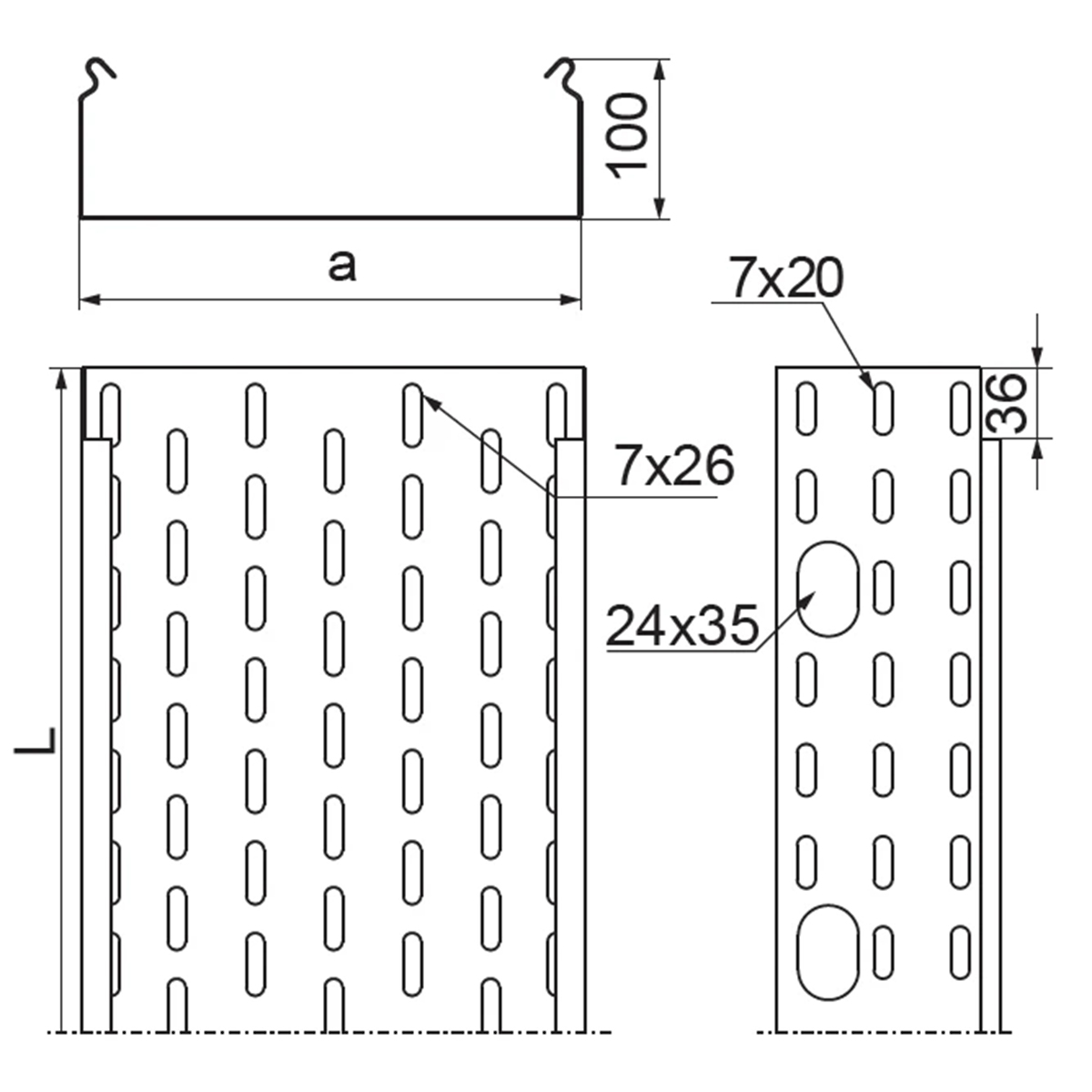

Technical data

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KOJ100H100/3N
  • Compliance with standards
    PN-EN 103462011
  • Sheet thickness [mm]
    1
  • Width [mm]
    100
  • Weight 1m [kg]
    2.16

Other technical data

  • Height
    100 mm
  • Material thickness
    1 mm
  • Useful cross section
    9800 mm²
  • Side perforation
    yes
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    100 mm
  • Length
    3000 mm
  • With cover
    no
  • Bottom perforation
    yes
  • Model
    Integrated connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    1.86 kg/m
