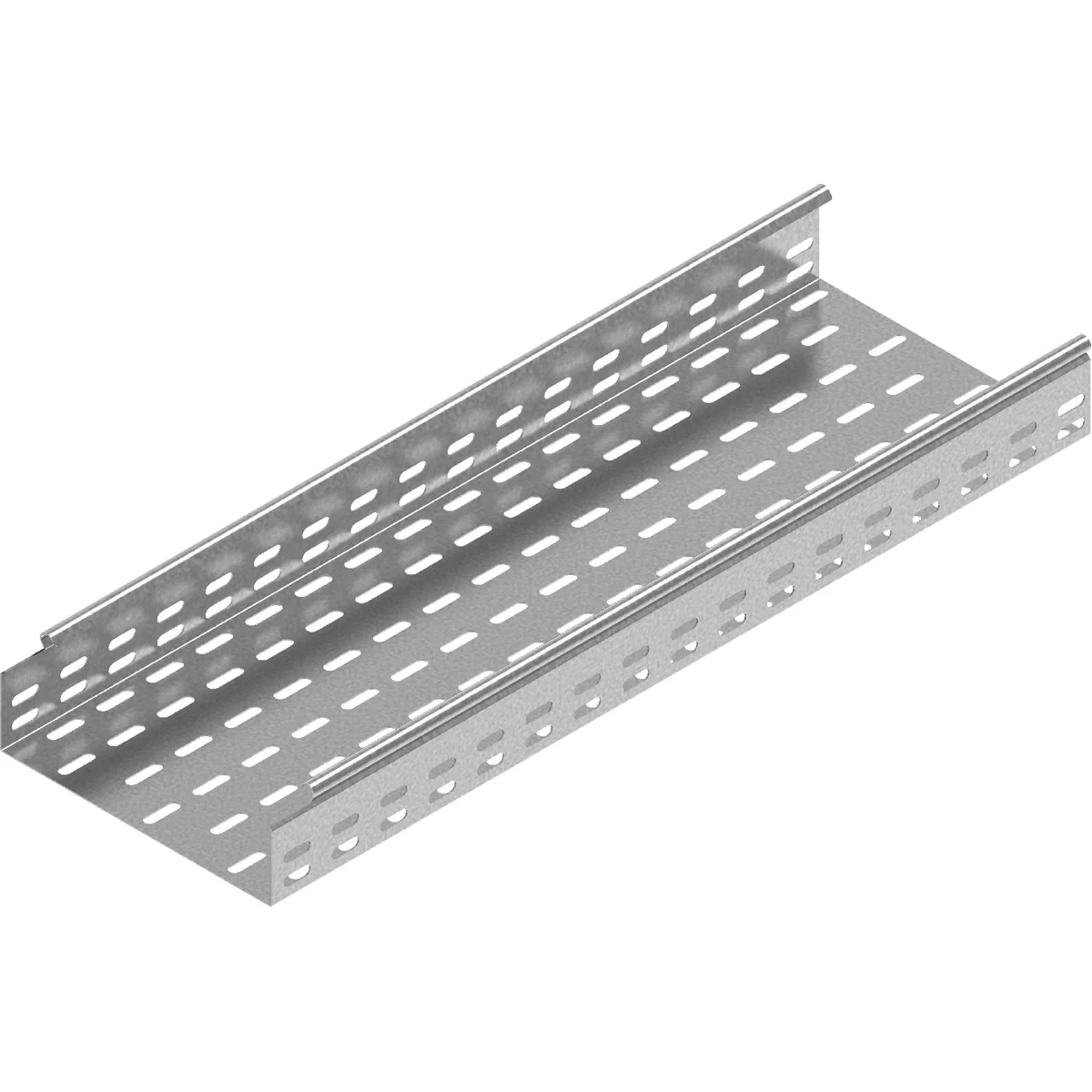

Tray, KCL200H60/3N 160820
local index:
TKM297BAKS
Catalog No:
160820
EAN code:
5900993033922
Large-size product
Price:
17,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The possibility of connecting the trays by sliding one into the other and assembly without connectors. Screw sets SGK M6x12 or SG M6x18 should be used for assembly
Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKCL200H60/3N
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]0.7
-
Width [mm]200
-
Weight 1m [kg]1.68
-
PKWIU25.11.23.0
Other technical data
-
Height60 mm
-
Material thickness0.7 mm
-
Useful cross section11800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width200 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityYes
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight1.63 kg/m
