Running cables and wires
Channels
Metal channels
Tray, KCJ200H42/3 N 141020
local index:
TKM506BAKS
Catalog No:
141020
EAN code:
5900993030464
Click on the photo to enlarge
Manufacturer:
BAKS
Length [mm]:
3000
Sheet thickness [mm]:
1
Material:
galvanized steel
See full description
Large-size product
Price:
22,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description

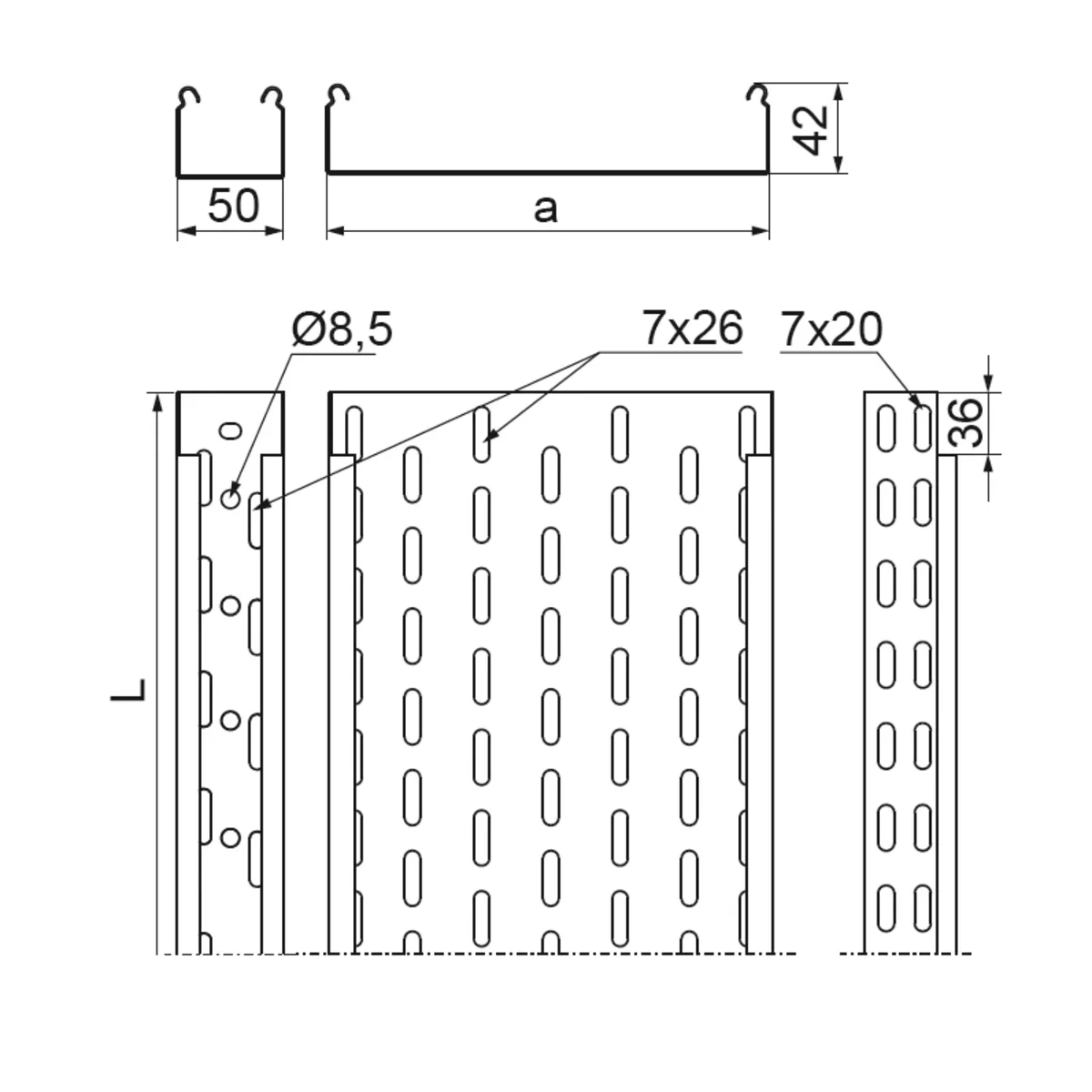

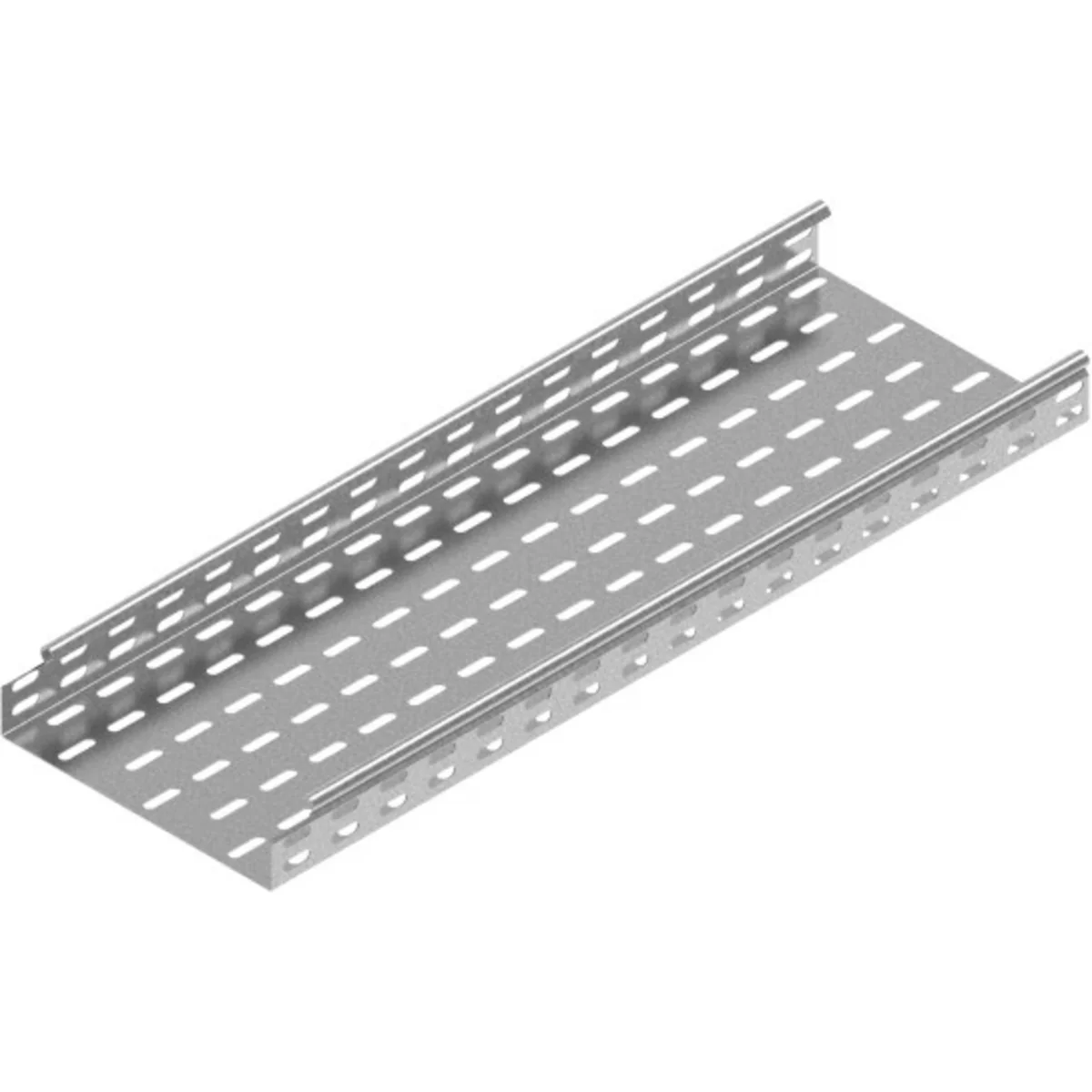

Perforated steel tray for cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.
Technical data
Length [mm]
3000
Material
galvanized steel
Type
KCJ200H42/3N
Compliance with standards
PN-EN 103462011
Sheet thickness [mm]
1
Width [mm]
200
Weight 1m [kg]
2.8
PKWIU
25.11.23.0
Other technical data
Height
42 mm
Material thickness
1 mm
Useful cross section
8200 mm²
Side perforation
Yes
NATO-mounting holes
No
Model szerokorozpiętościowy
No
Material
Steel
Material quality
Other
Colour
Other
Width
200 mm
Length
3000 mm
With cover
No
Bottom perforation
Yes
Model
Integrated connector
Suitable for circuit integrity
No
Stainless steel, pickled
No
Surface protection
Hot-dip galvanized
Weight
1.9 kg/m
Files to download
Atest-Higieniczny.pdf
BAKS-TM-BS-EN.pdf
Certyfikat-i-raport-VDE-ciągłość-elektryczna-koryt-drabin-i-ceowników-EN_DE.pdf
