135685
2

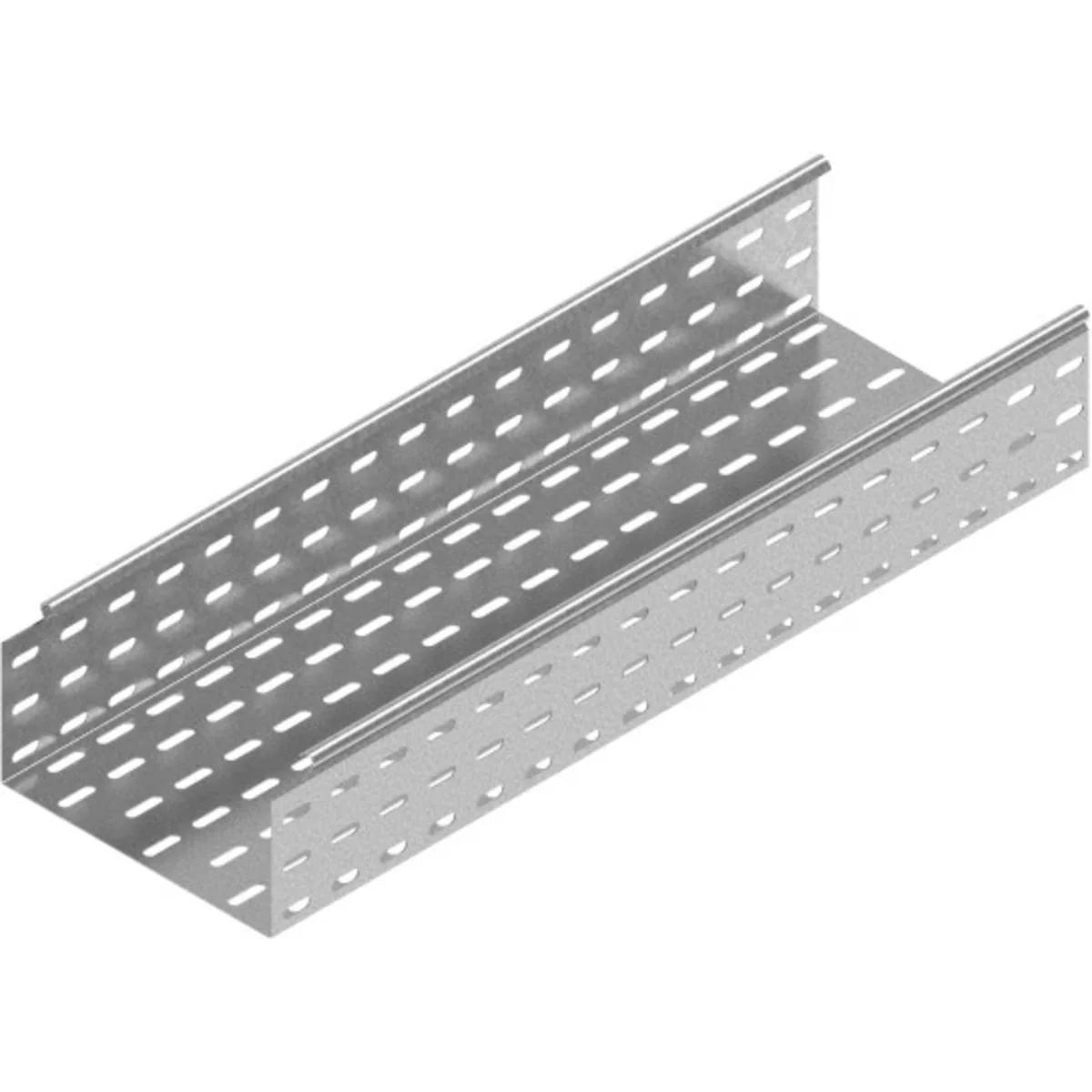

Tray, KCJ100H100/3N 110410
local index:
TKM480BAKS
Catalog No:
110410
EAN code:
5900993036824
Large-size product
Price:
25,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Possibility of connecting KCL..., KCJ... and KCD... trays by sliding one into the other and assembly without connectors. KCP... trays can only be connected using connectors (no cut-out in the tray side). Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

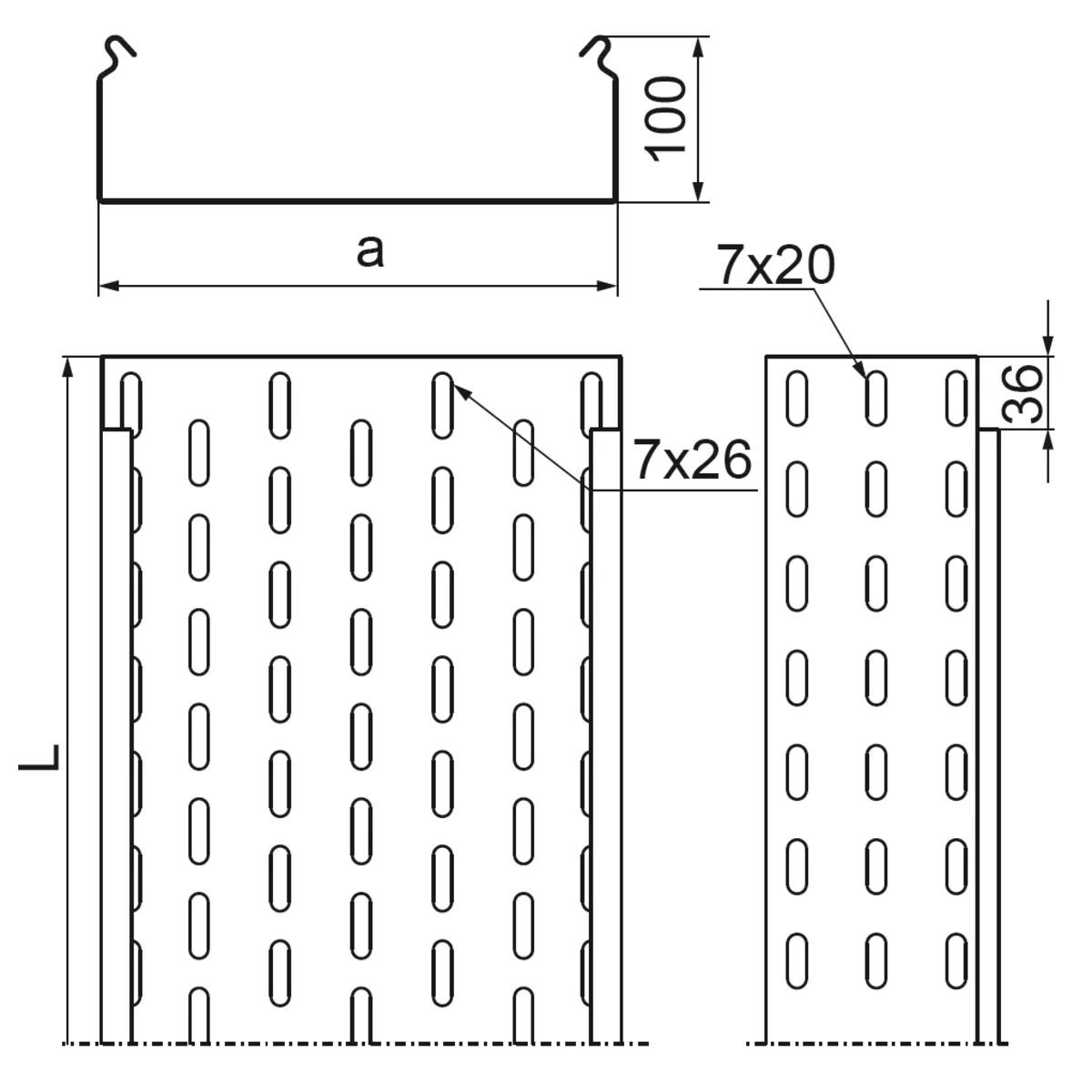

Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKCJ100H100/3N
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]1
-
Width [mm]100
-
Weight 1m [kg]2.19
-
PKWIU25.11.23.0
Other technical data
-
Height100 mm
-
Material thickness1 mm
-
Useful cross section9800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width100 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight2 kg/m
Manufacturer details
-
ManufacturerBAKS Kazimierz Sielski
-
Address05-480 KARCZEW JAGODNE 5
-
Phone number
-
E-mail
-
Tax identification number5320102041
-
GLN5909000679306
