Tray, KCD50H50/3N 151205

Lokaler Index:
TKM524BAKS
Katalognummer:
151205
EAN-Code:
5900993032123
Hersteller: BAKS
Length [mm]: 3000
Sheet thickness [mm]: 1.2
Material: galvanized steel
Großformatiges Produkt
Preis:
17,77 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

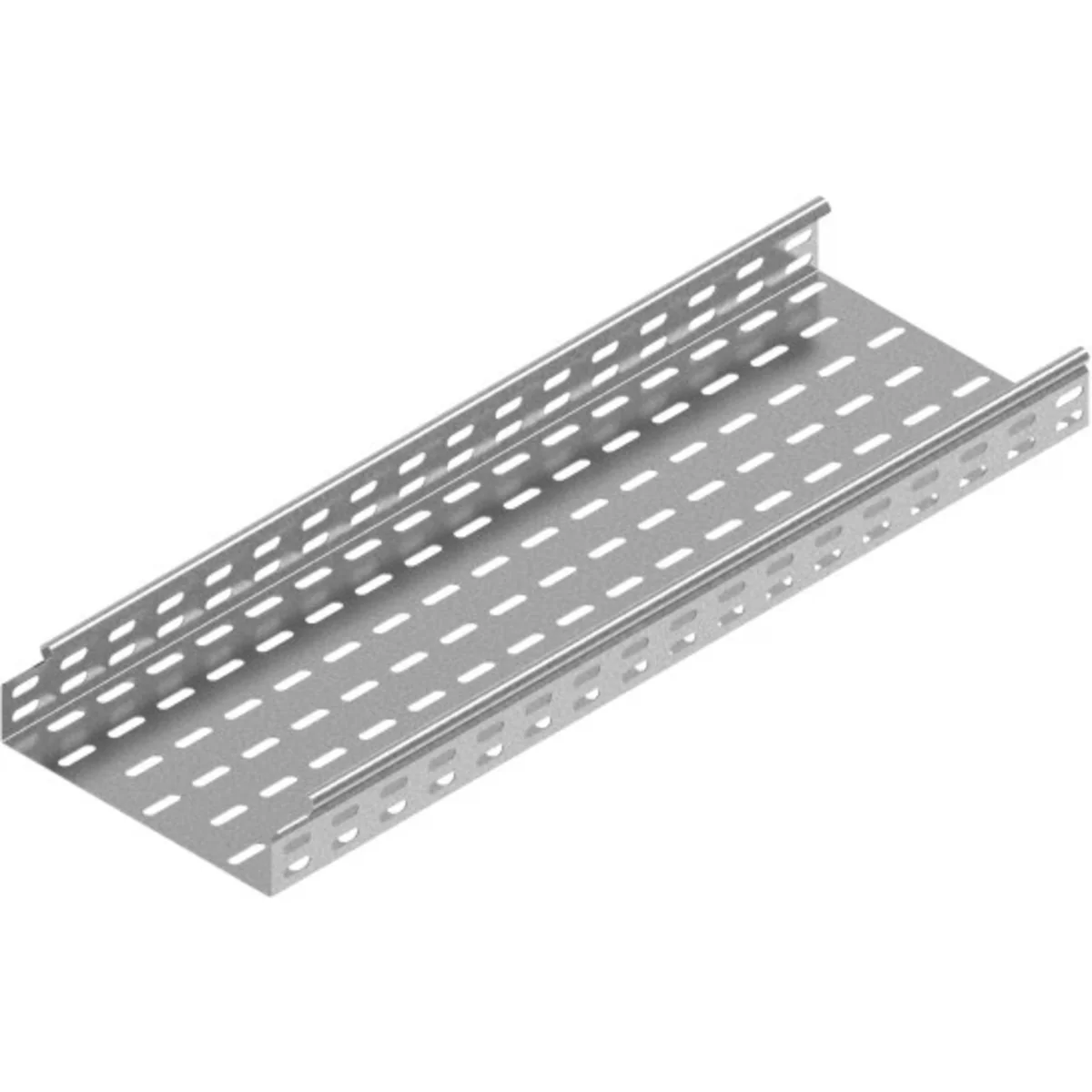

Perforated steel tray for  cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.

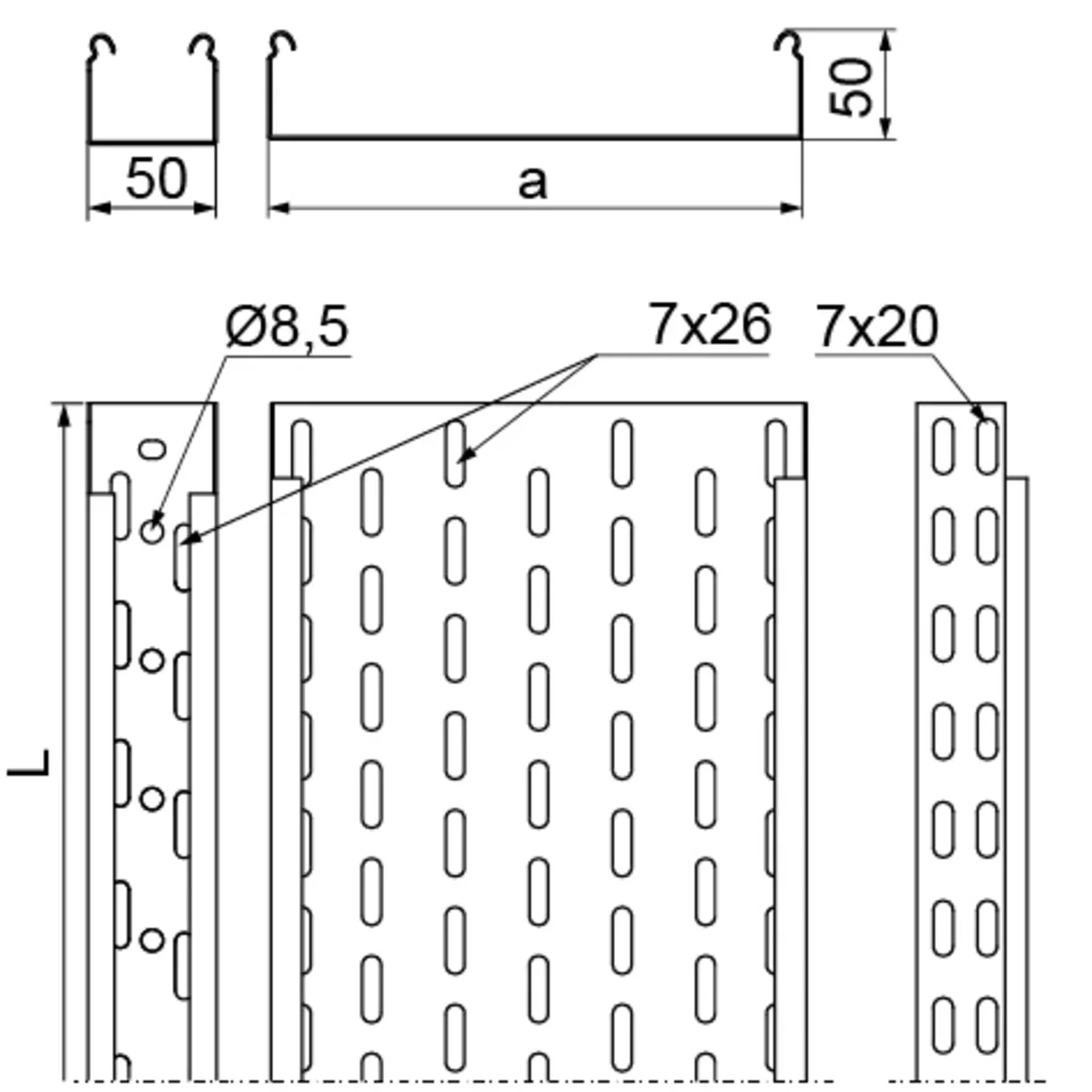

Technische Daten

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KCD50H50/3N
  • Compliance with standards
    PN-EN 103462011
  • Sheet thickness [mm]
    1.2
  • Width [mm]
    50
  • Weight 1m [kg]
    1.49
  • PKWIU
    25.11.23.0

Weitere technische Daten

  • Height
    50 mm
  • Material thickness
    1.2 mm
  • Useful cross section
    2300 mm²
  • Side perforation
    Yes
  • NATO-mounting holes
    No
  • Model szerokorozpiętościowy
    No
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    50 mm
  • Length
    3000 mm
  • With cover
    No
  • Bottom perforation
    Yes
  • Model
    Integrated connector
  • Suitable for circuit integrity
    No
  • Stainless steel, pickled
    No
  • Surface protection
    Hot-dip galvanized
  • Weight
    1.33 kg/m

Hersteller-Details

  • Hersteller
    BAKS Kazimierz Sielski
  • Adresse
    05-480 Karczew Jagodne 5 Polska
