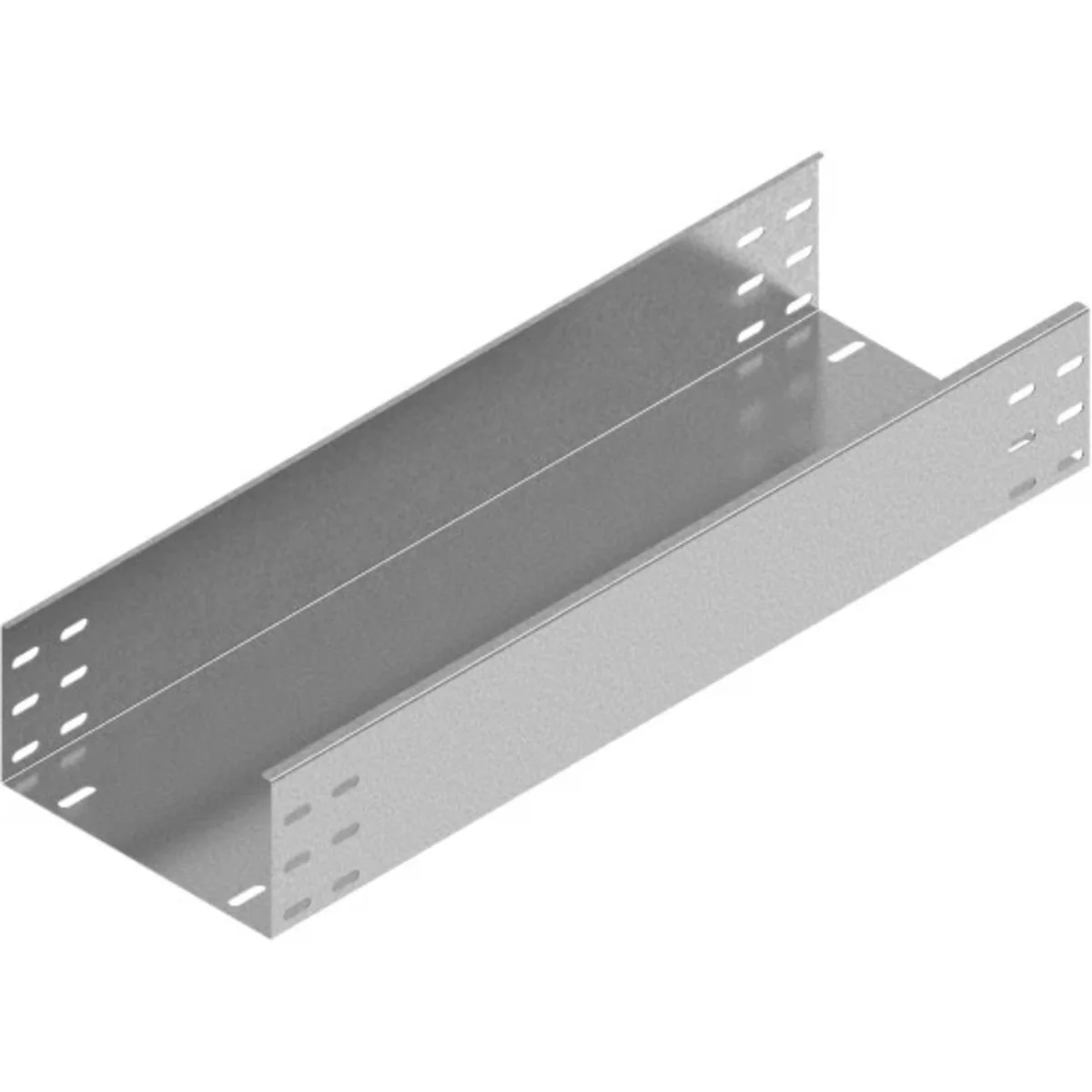

Tray, KBP600H100/3 112060
local index:
TKM181BAKS
Catalog No:
112060
EAN code:
5900993038064
Large-size product
Price:
87,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Possibility of connecting KBL..., KBJ...KBP.... and KBD... trays by sliding one into the other and assembly without connectors. KBP... trays can only be connected using connectors (no cut-out in the tray side). Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

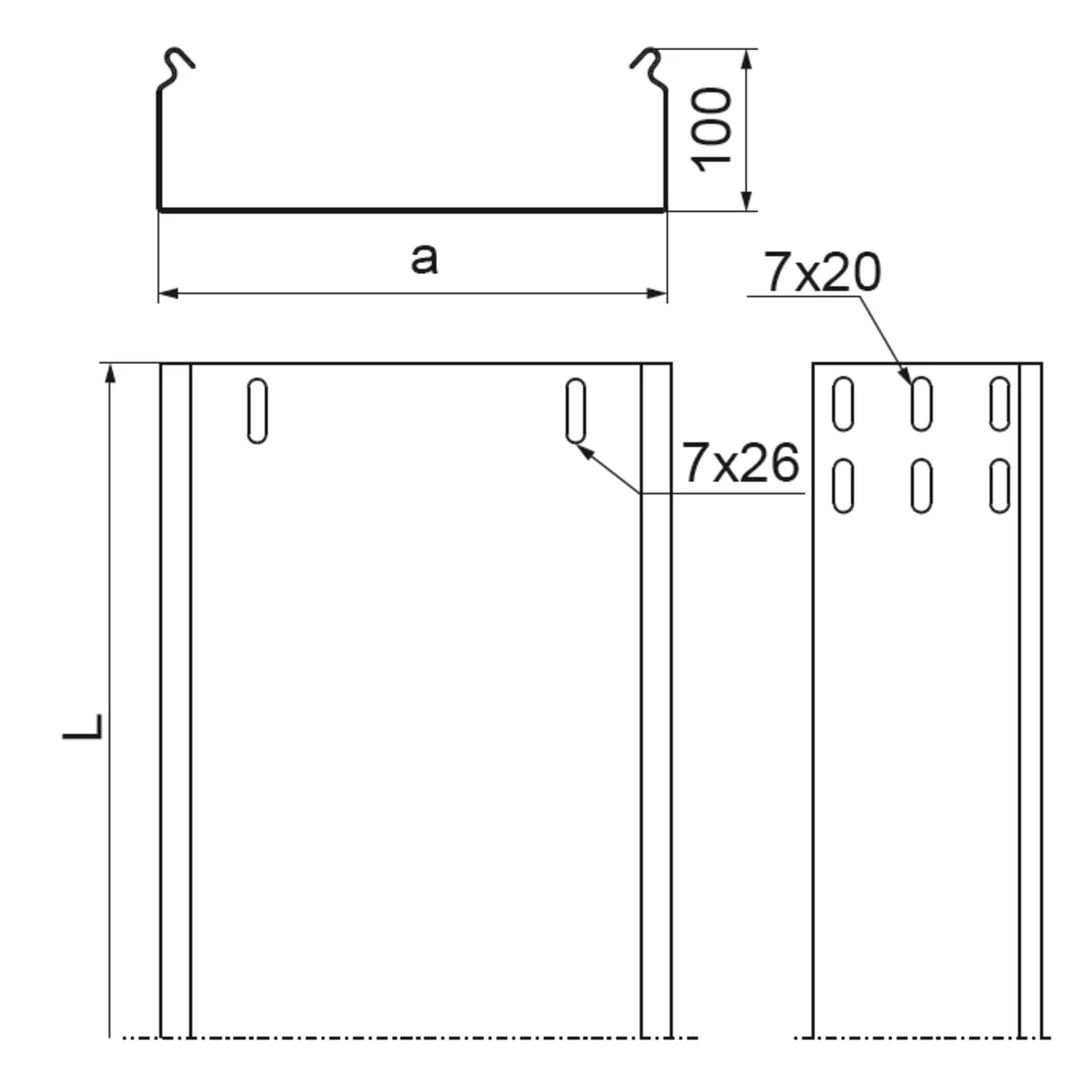

Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKBP600H100/3
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]1.5
-
Width [mm]600
-
Weight 1m [kg]9.96
-
PKWIU25.11.23.0
Other technical data
-
Height100 mm
-
Material thickness1.5 mm
-
Useful cross section59800 mm²
-
Side perforationNo
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width600 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationNo
-
ModelWithout connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight9.57 kg/m
