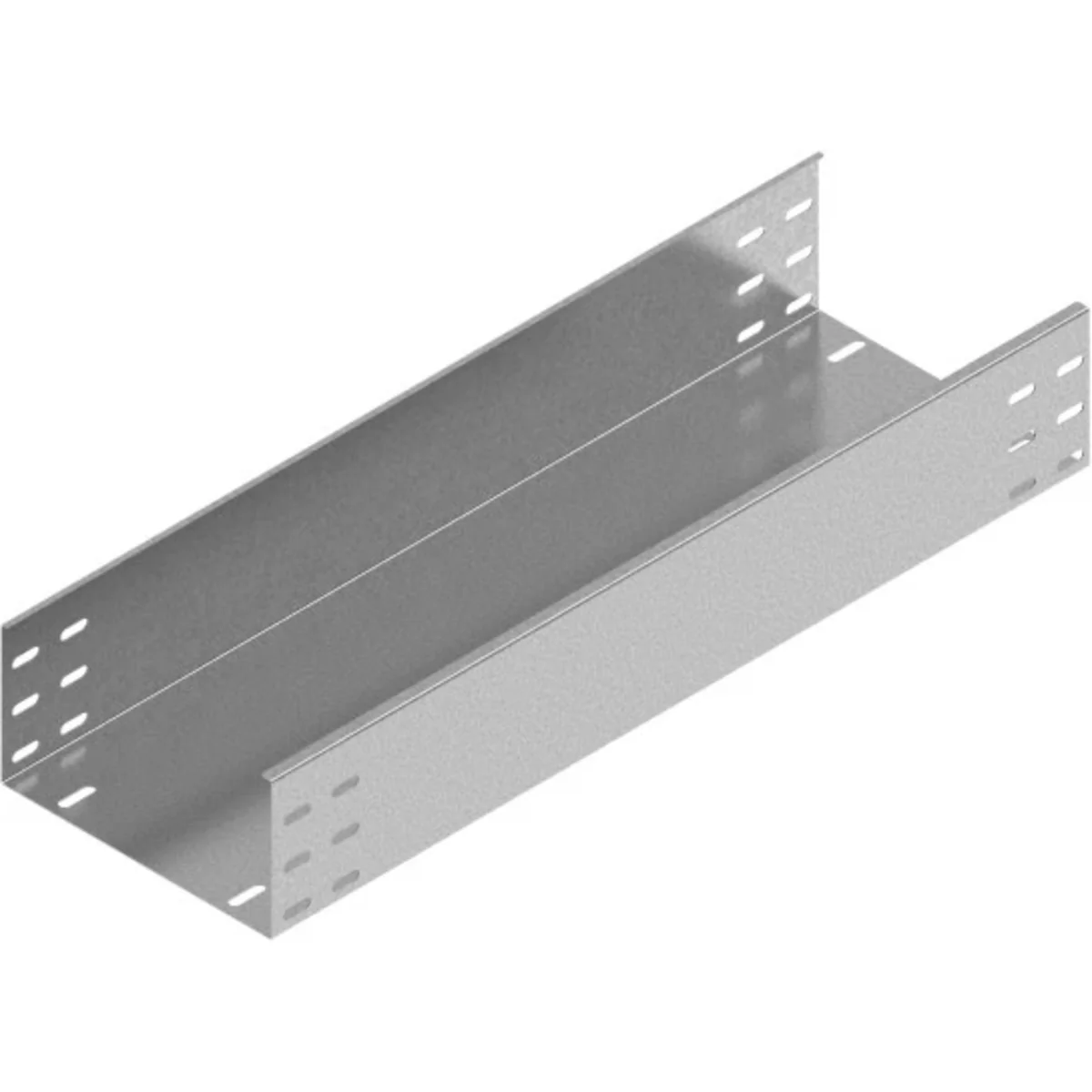

el12 Running cables and wires Accessories for cables and wires Metal constructions Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3

Click on the photo to enlarge

Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
Tray, KBP100H100/3
BAKS

Tray, KBP100H100/3 112010

local index:
TAM011BAKS
Catalog No:
112010
EAN code:
5900993037944
Price:
35,66 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
Large-size product
From 68,97 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Possibility of connecting KBL..., KBJ...KBP.... and KBD... trays by sliding one into the other and assembly without connectors. KBP... trays can only be connected using connectors (no cut-out in the tray side). Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

Print the product sheet Report an error

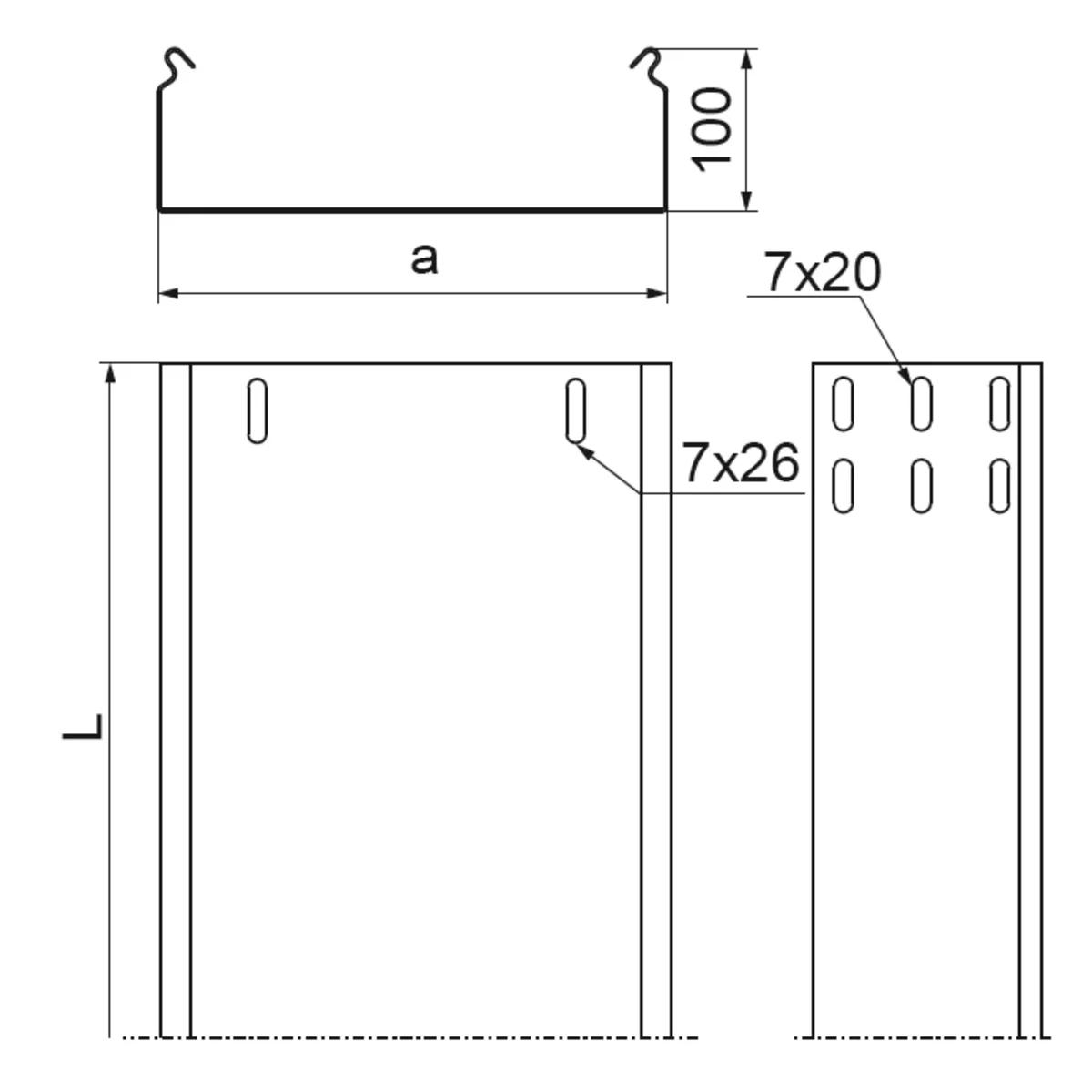

Technical data

  • Producer
    BAKS

Other technical data

  • Height
    100 mm
  • Material thickness
    1.5 mm
  • Useful cross section
    9800 mm²
  • Side perforation
    no
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    100 mm
  • Length
    3000 mm
  • With cover
    no
  • Bottom perforation
    no
  • Model
    Without connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    3.82 kg/m

Catalog cards, diagrams, certificates

BAKS-TM-BS-EN.pdf
Certyfikat-i-raport-VDE-ciągłość-elektryczna-koryt-drabin-i-ceowników-EN_DE.pdf
iso_pl.pdf
iso2_pl.pdf
Rekomendacja-Techniczna-ITB-RT1082_2012.pdf
SKM_C284e19060514120.pdf
Atest-Higieniczny.pdf
Deklaracja-Zgodności-CE-2020.10.16-standard.pdf
