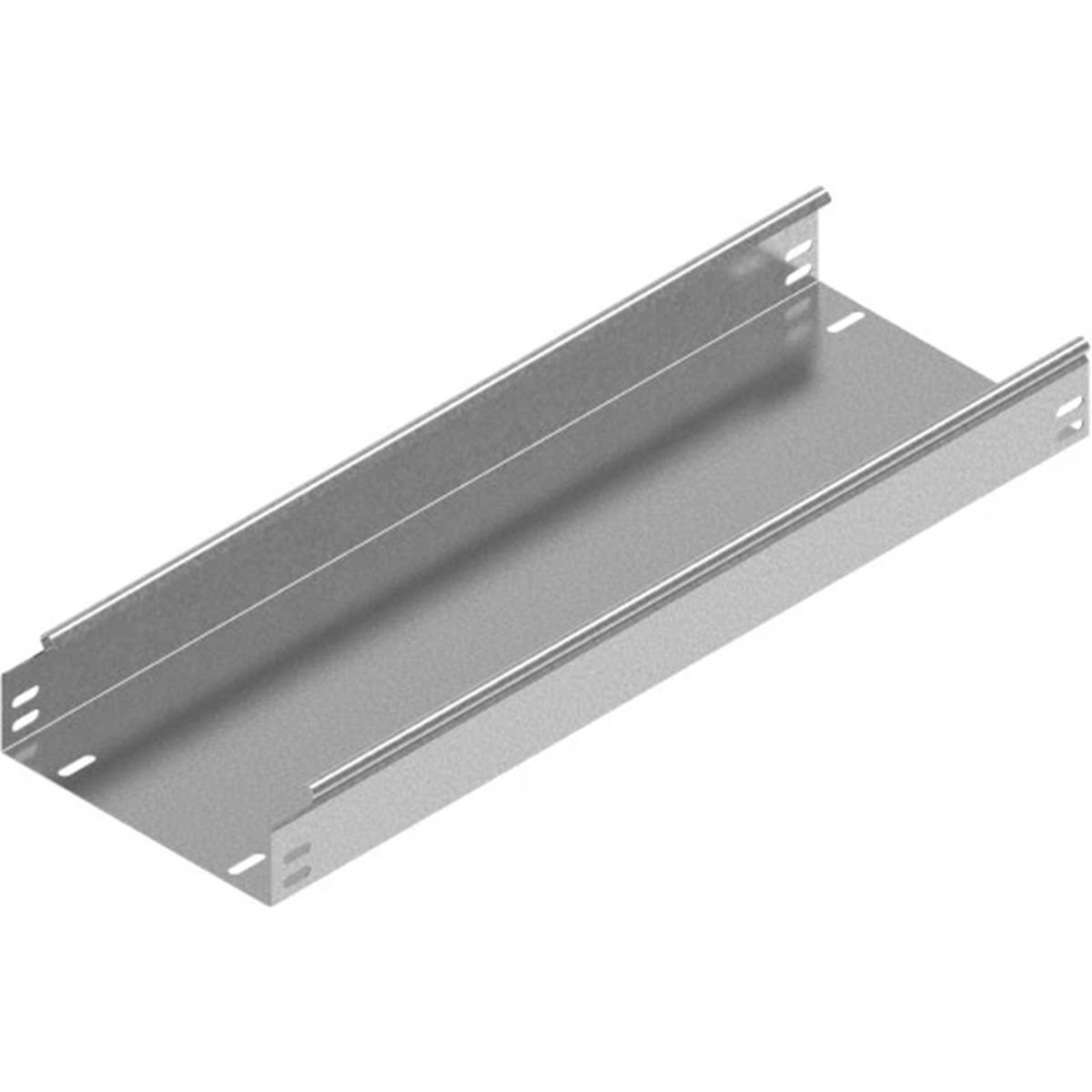

Tray, KBL100H60/3 162010

local index:
TKM229BAKS
Catalog No:
162010
EAN code:
5900993034721
Manufacturer: BAKS
Length [mm]: 3000
Sheet thickness [mm]: 0.7
Material: galvanized steel
Large-size product
Price:
14,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Possibility of connecting KBL..., KBJ... and KBD... trays by sliding one into the other and assembly without connectors. KBP... cable trays can only be joined using connectors (no cut-out in the tray side).

For assembly, screw sets SGK M6x12 or SG M6x12 should be used.

Technical data

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KBL100H60/3
  • Compliance with standards
    PN-EN 103462011
  • Sheet thickness [mm]
    0.7
  • Width [mm]
    100
  • Weight 1m [kg]
    1.44
  • PKWIU
    25.11.23.0

Other technical data

  • Height
    60 mm
  • Material thickness
    0.7 mm
  • Useful cross section
    5800 mm²
  • Side perforation
    No
  • NATO-mounting holes
    No
  • Model szerokorozpiętościowy
    No
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    100 mm
  • Length
    3000 mm
  • With cover
    No
  • Bottom perforation
    No
  • Model
    Integrated connector
  • Suitable for circuit integrity
    Yes
  • Stainless steel, pickled
    No
  • Surface protection
    Hot-dip galvanized
  • Weight
    1.44 kg/m
