Strap holder - "UP 50" 12.3

local index:
TAP003ELOP
Catalog No:
12.3
EAN code:
5905548280394
Length [mm]: 130
Color: White
Maximum cable diameter [mm]: 50
Price:
2,13 €
gross / pkg.
(including VAT 23%)
0,21 € gross/pcs.
Delivery in 3h
Accessible 36 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

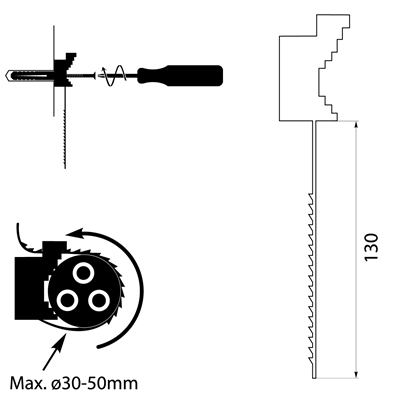

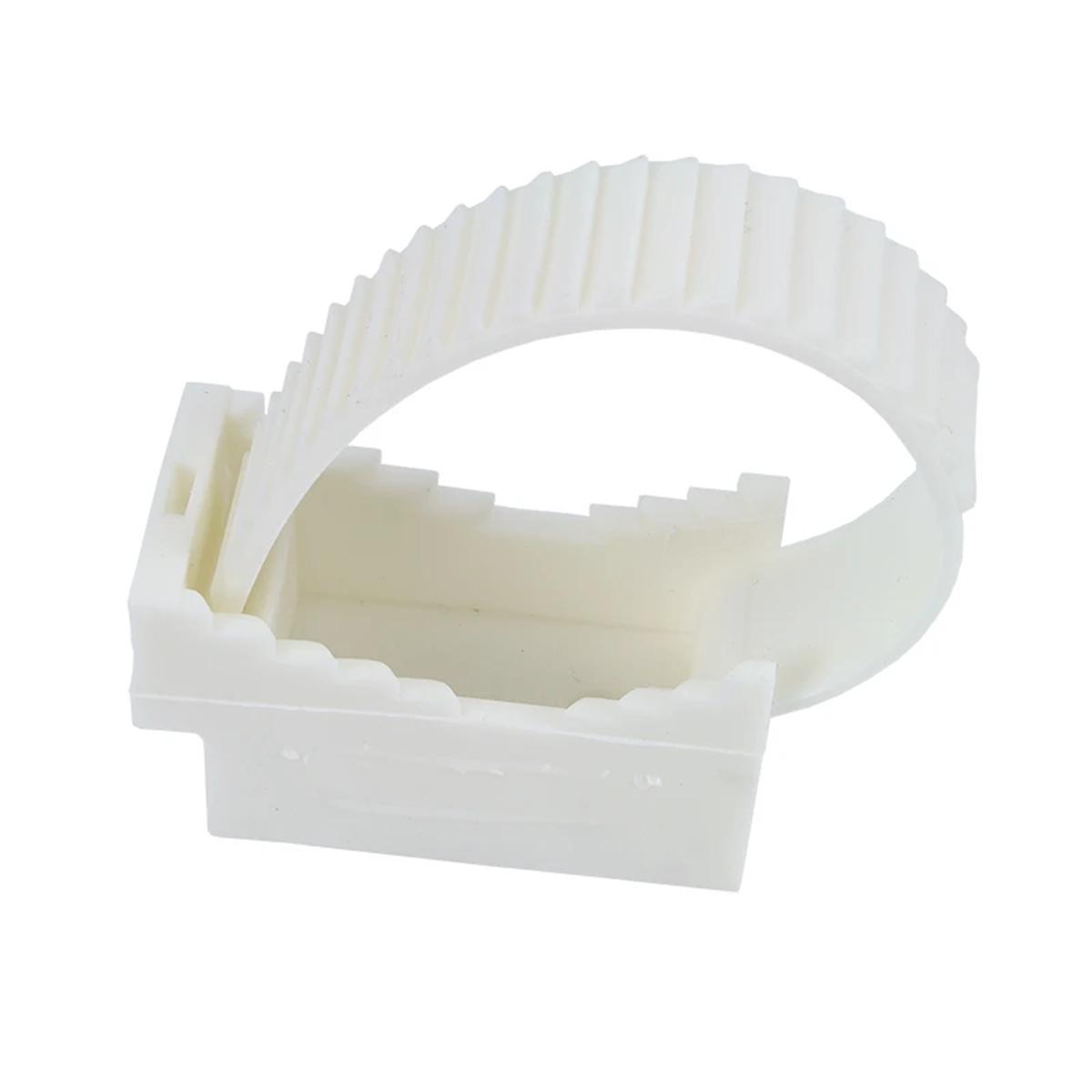

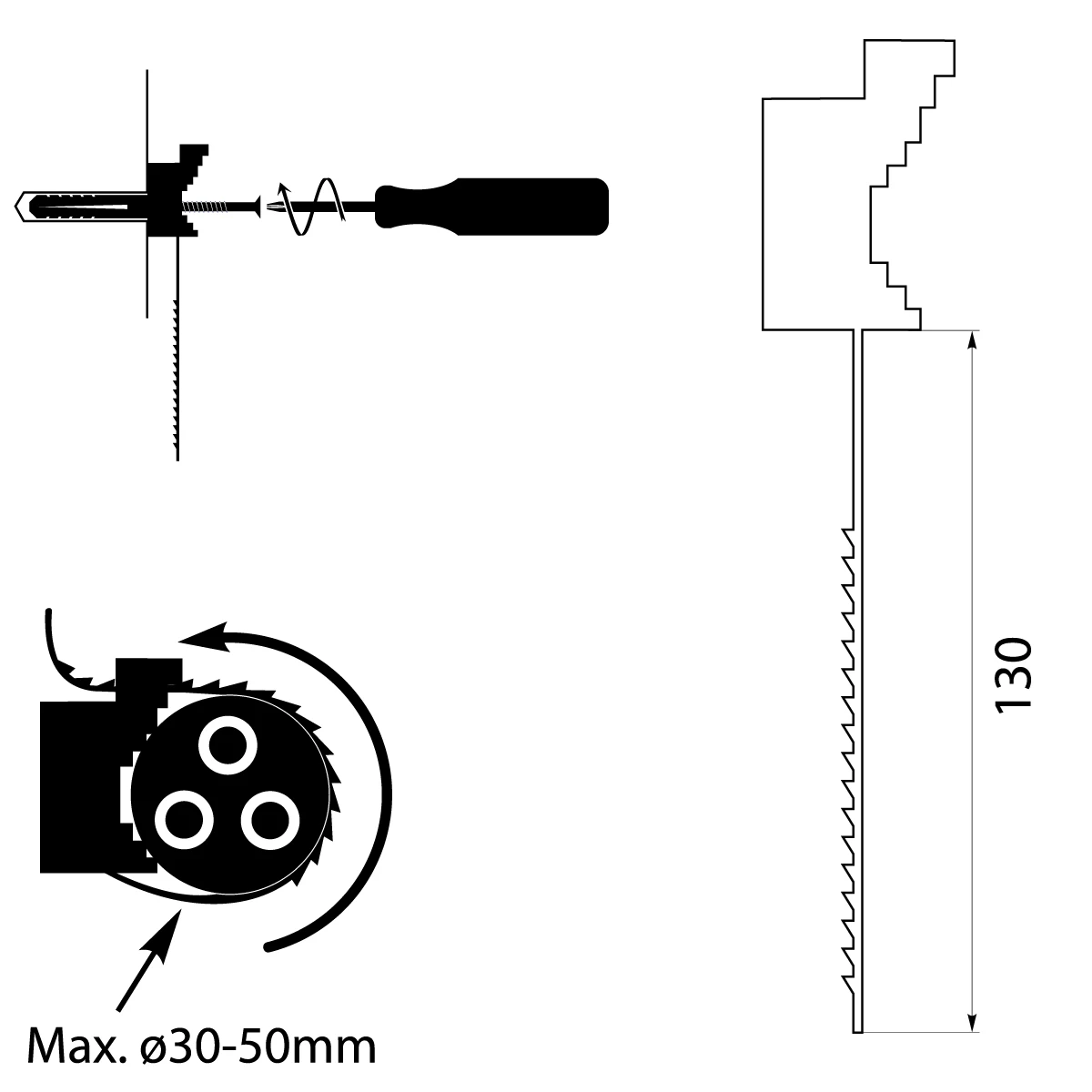

Made of polypropylene, the UP holder consists of a serrated strap and a mounting saddle. It is used to fix both wires and plastic pipes. Fastening is done by placing the object to be fastened on the saddle and fastening it with a toothed belt. Mounting brackets are adapted for mounting electric, telecommunication and control cables as well as installation pipes to various surfaces. The use of mounting brackets for cables guarantees min. very quick assembly, secure fixing, professional appearance of the installation, the possibility of releasing the handle in order to make any corrections to the installation and relatively low cost of assembly.

Technical data

  • Length [mm]
    130
  • Maximum cable diameter [mm]
    50
  • Accurate color
    White
  • Color
    White
  • Pieces in the package
    10
  • PKWIU
    27.33.14.0

Other technical data

  • Band width
    21 mm
  • Tie thickness
    3.5 mm
  • Model
    Internal toothing
  • Material
    Plastic
  • Surface protection
    Untreated
  • Halogen free
    Yes
  • Transparent
    No
  • Text strip
    None
  • Type of fastening
    Screw hole
  • Length belt/tape/tie
    214 mm
  • Maks. średnica wiązki
    50 mm
  • Band closure
    Plastic lip/-cam
  • Material quality
    Polypropylene (PP)
  • UV-stable according to ASTM D6779
    No
  • Colour
    White
  • Fluorescent
    No
  • Solvable fastener
    No

Bulk packaging

A kind of package Paczka
Quantity 1 pkg. 1 pkg.
Weight (kg) 0,238 0,002
Width (m) - 0,030
Length (m) - 0,245
Depth (m) - 0,180
