Strap handle - "UP 22" 12.1

Místní index:
TAP051ELOP
Katalogové číslo.:
12.1
EAN kód:
5903978376199
Length [mm]: 60
Color: White
Maximum cable diameter [mm]: 22
Cena:
12,42 zł
gross / balení
(včetně DPH 23%)
0,12 zł gross/kusů.
k dispozici 49 balení
Vyzvednutí za 1h
Dodání do 3 hodin
Množství balení
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

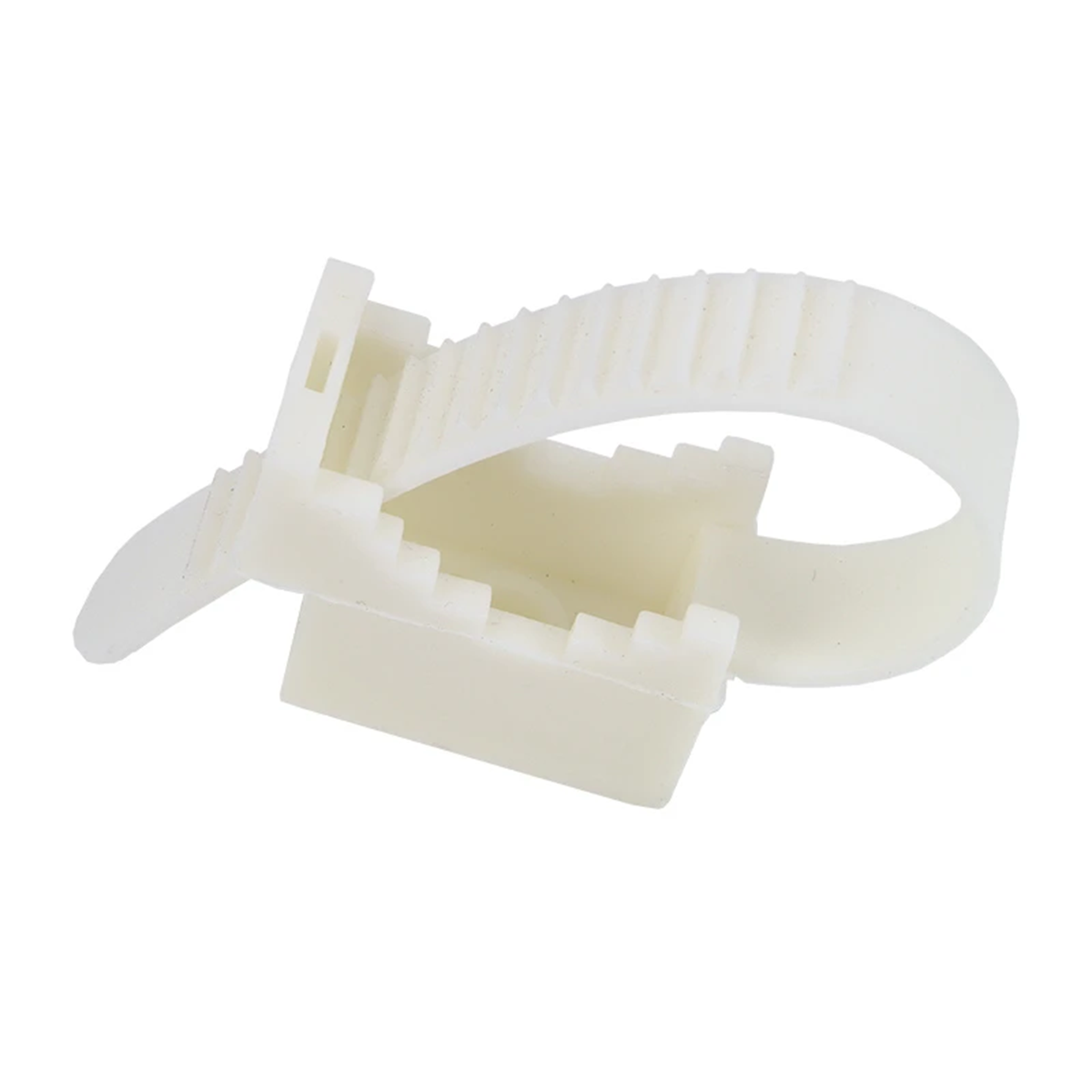

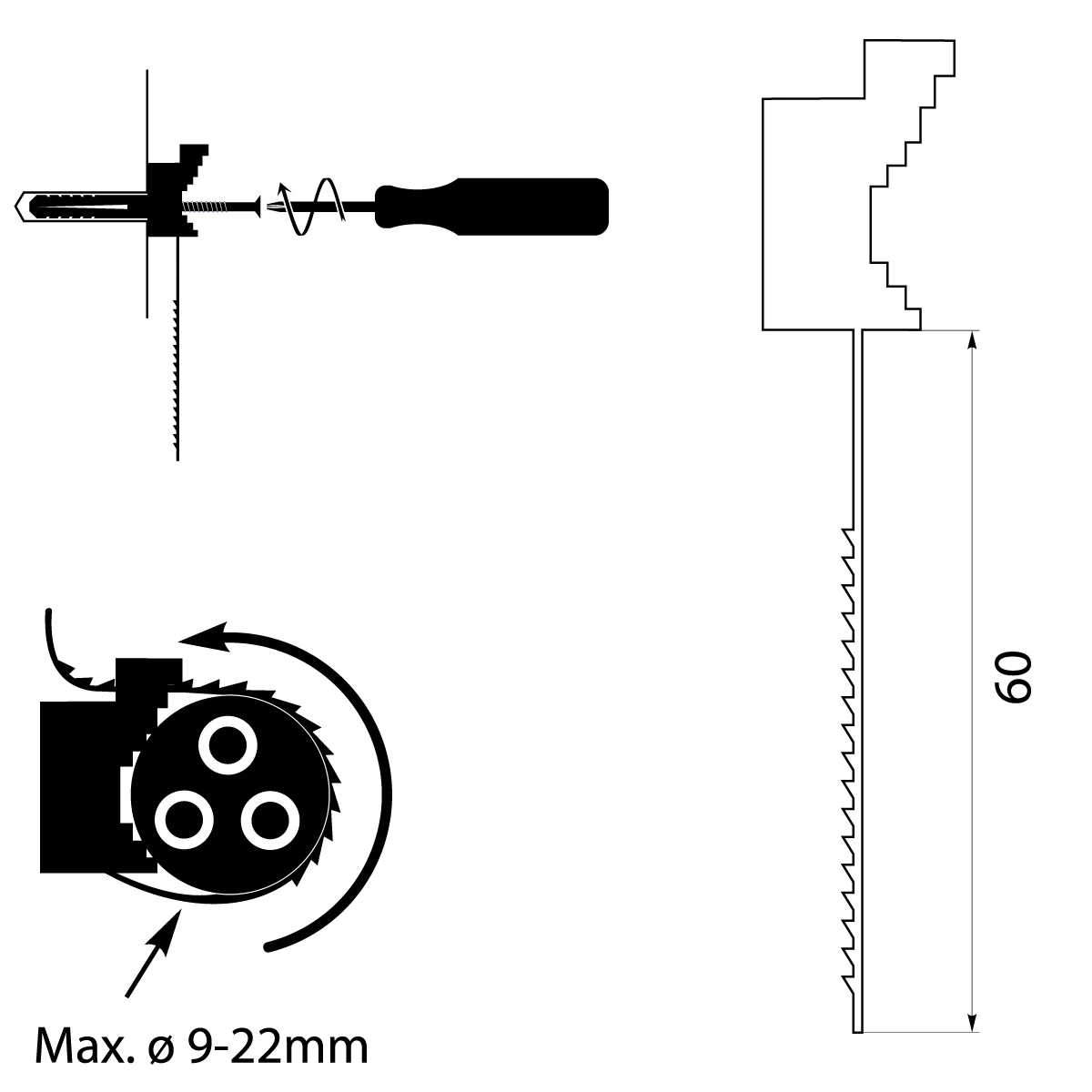

Made of polypropylene, the UP holder consists of a serrated strap and a mounting saddle. It is used to fix both wires and plastic pipes. Fastening is done by placing the object to be fastened on the saddle and fastening it with a toothed belt. Mounting brackets are adapted for mounting electric, telecommunication and control cables as well as installation pipes to various surfaces. The use of mounting brackets for cables guarantees min. very quick assembly, secure fixing, professional appearance of the installation, the possibility of releasing the handle in order to make any corrections to the installation and relatively low cost of assembly.

Technické údaje

  • Length [mm]
    60
  • Maximum cable diameter [mm]
    22
  • Accurate color
    White
  • Color
    White
  • Pieces in the package
    100
  • PKWIU
    27.33.14.0

Další technické údaje

  • Band width
    9 mm
  • Tie thickness
    2 mm
  • Model
    Internal toothing
  • Material
    Plastic
  • Surface protection
    Untreated
  • Halogen free
    Yes
  • Transparent
    No
  • Text strip
    None
  • Type of fastening
    Screw hole
  • Length belt/tape/tie
    98 mm
  • Maks. średnica wiązki
    22 mm
  • Band closure
    Plastic lip/-cam
  • Material quality
    Polypropylene (PP)
  • UV-stable according to ASTM D6779
    No
  • Colour
    White
  • Fluorescent
    No
  • Solvable fastener
    No

Podrobnosti o výrobci

  • Výrobce
    Z.P.H. ELEKTRO-PLAST Sp. z o.o.
  • Adresa
    62-860 Opatówek Rogatka 14 Polska

Velkoobjemová balení

Typ obalu Paczka
Množství 1 balení
Hmotnost (kg) 0,002
Šířka (m) 0,070
Délka (m) 0,250
Hloubka (m) 0,200
