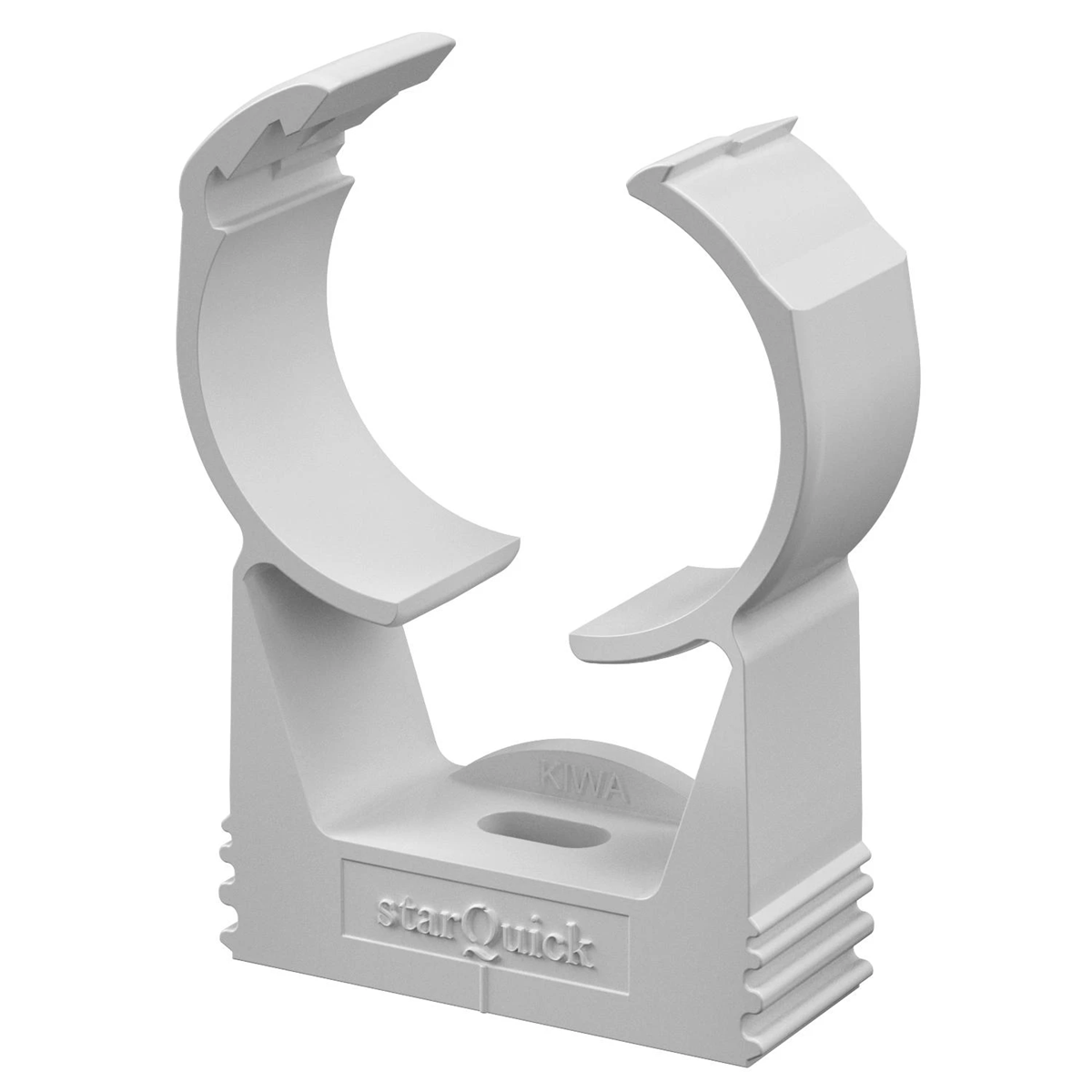

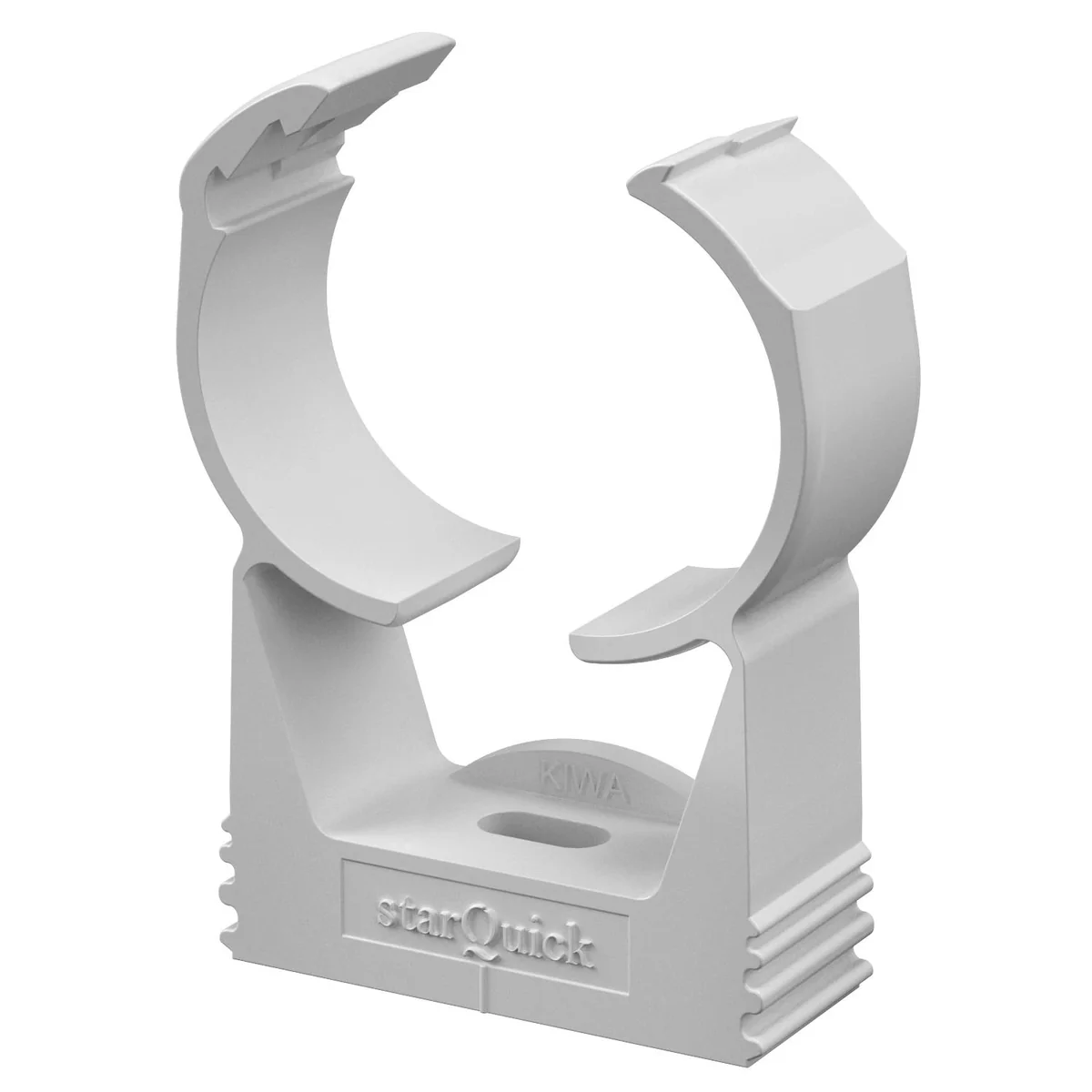

Possibility of serial connection to SQ-28. Breaking load: with screw DIN 96; Wed. 4.5mm, minimum breaking load at 20°. The starQuick clamp type SQ... is a comprehensive program of high-quality clamps, particularly suitable for use in outdoor conditions, public places, as well as in car parks or under bridges and on open steel structures. Weatherproof: the clamp is made of UV- and weather-resistant polyamide. The range, with a total of thirteen different sizes with a clamping range of 10-65 mm, enables trouble-free fastening of various pipe systems. The starQuick clamp is used to fix both plastic and metal pipes, so it can be used for electrical and sanitary installations. Clamps can be mounted on the wall and on the ceiling. Assembly is quick and uncomplicated, no tools required. It is also possible to easily assemble several pipes:
- by placing individual clamps in series

A kind of package	Skrzynia	Karton	Paleta
Quantity	50 pcs.	400 pcs.	7200 pcs.
Weight (kg)	0,616	4,928	111,204
Volume (m3)	0,004	0,038	0,912
Width (m)	0,187	0,388	0,800
Length (m)	0,187	0,395	1,200
Depth (m)	0,116	0,249	0,950

Snap clamp for pipes 32-35MM, SQ-32 LGR 2146258

Product description

Technical data

Bulk packaging
