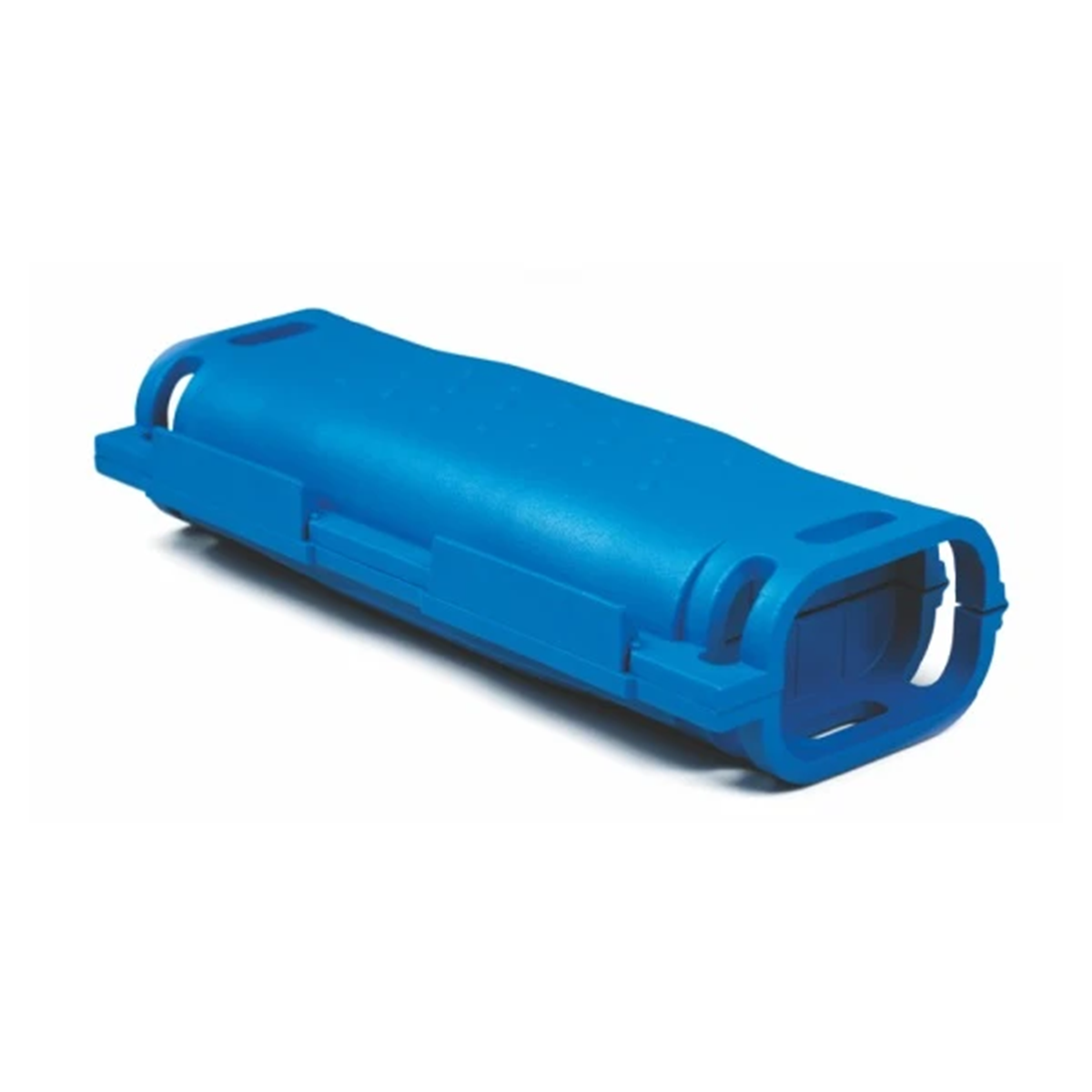

Shark406 gel muff SH-0406

SHARK gel joints create insulation/protection of connection points for electric wires up to 1kV, telecommunication wires or small electronic circuits. To secure this type of connection, the person making it does not need any additional tools apart from the standard tools necessary to connect the wires. Contrary to heat-shrink joints, also offered by TRYTYT, gel joint insulation can be performed by people who do not have much experience in the field of electrical installations.

Recommended especially for use in hard-to-reach places or small spaces with limited possibilities of shrinking heat-shrinkable joints with gas heat guns.

CLASSIC SERIES, for securing single and multi-wire connections. It includes a patented system of partitions and separators that lock the cable in the joint. The Shark 125 and Shark 150 joints include a brass connector in the set that allows making an outlet without damaging the main cable. Depending on the type and size of the joint and the type of connection (through or branch connection), they can be used to connect wires/wires with a cross-section of 2.5 to 240 mm2 (for through connections) and 1.5 to 120 mm2 (for branch connections) .

Cable cross section for straight/through connections: 2 - 4 x 1.5 - 6
Cable cross-section for branch connections:

• Power cord: 2 - 4 x 1.5 - 6
• Drain hose: 2 x 1.5 - 6
