Resin joint for cable with a diameter of 7-23mm B1-0406

local index:
TMN006BORP
Catalog No:
B1-0406
EAN code:
8033501680565
Manufacturer: TRYTYT
For cables with diameter [mm]: 7-23
Color: Green
Material: PP
Price:
38,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

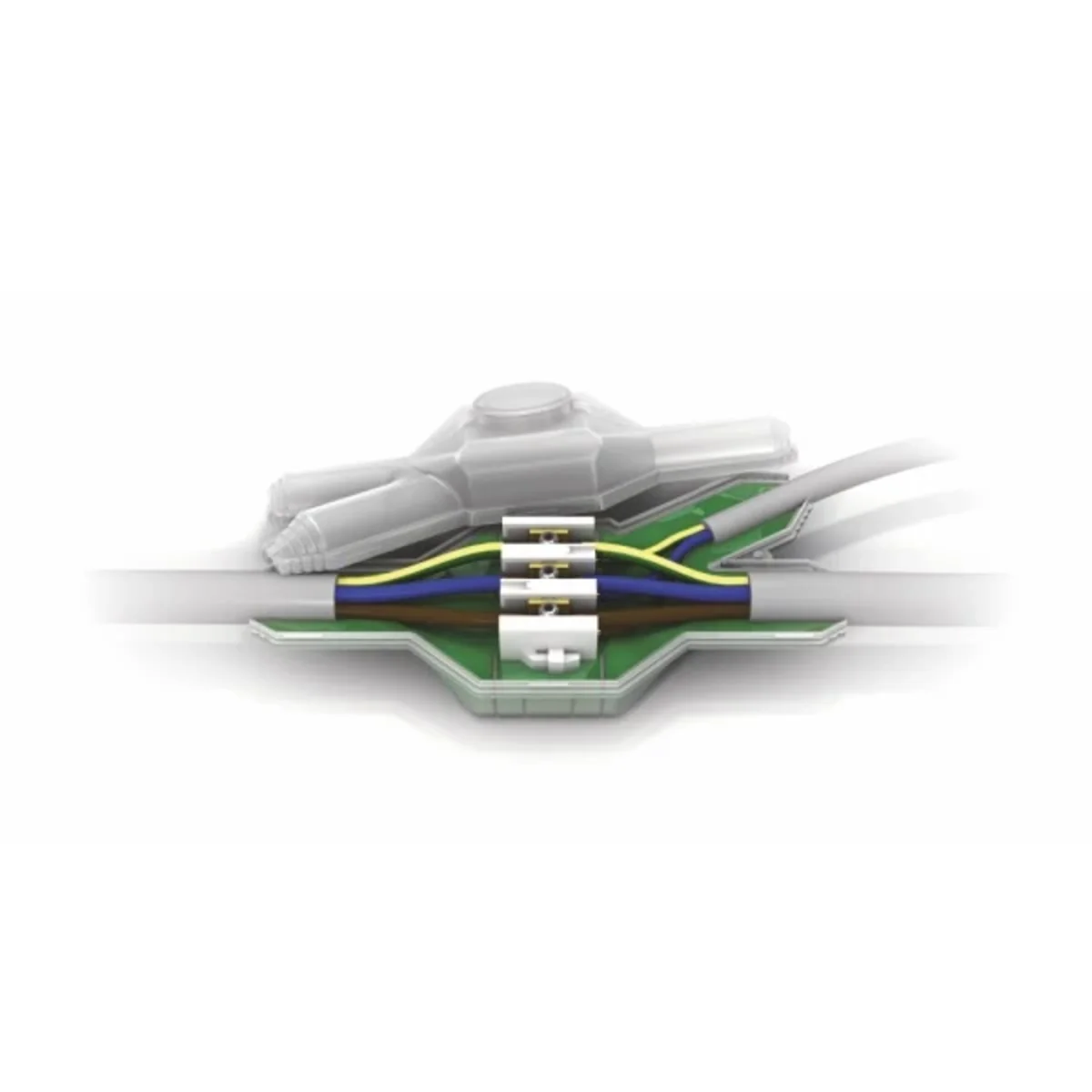

Submarine B series resin joints for making down-conductors for single and multi-core polymer insulated cables 0.6/1kV. The set includes a transparent polypropylene housing (consisting of two parts), an insulated connector (up to 5 wires), two-component polyurethane resin and other accessories necessary for assembly.

The connector allows you to make an outlet without having to cut the main supply wires. It is equipped with brass clamps that are tightened with an Allen key.

The joint casing contains a special saddle in which the connector is mounted, which guarantees proper arrangement of the wires inside the joint. Each joint kit contains a two-component polyurethane resin, resin mixture and hardener (selected in the appropriate proportion for each type of joint).

Technical data

  • For cables with diameter [mm]
    7-23
  • Material
    PP
  • Level of security
    IPx8
  • Dielectric strength [kV/mm]
    >20
  • PKWIU
    27.33.13.0
  • Color
    Green
  • Type
    resinous
  • Shore hardness (D)
    55
  • Accurate color
    transparent/light yellow

Manufacturer details

  • Manufacturer
    TRYTYT Sp. z o.o.
  • Address
    43-382 Bielsko-Biała Horeszków 8 Polska
