Resin joint for cable with a diameter of 12-27mm B2-0416

local index:
TMN028BORP
Catalog No:
B2-0416
EAN code:
8033501680572
Price:
62,13 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

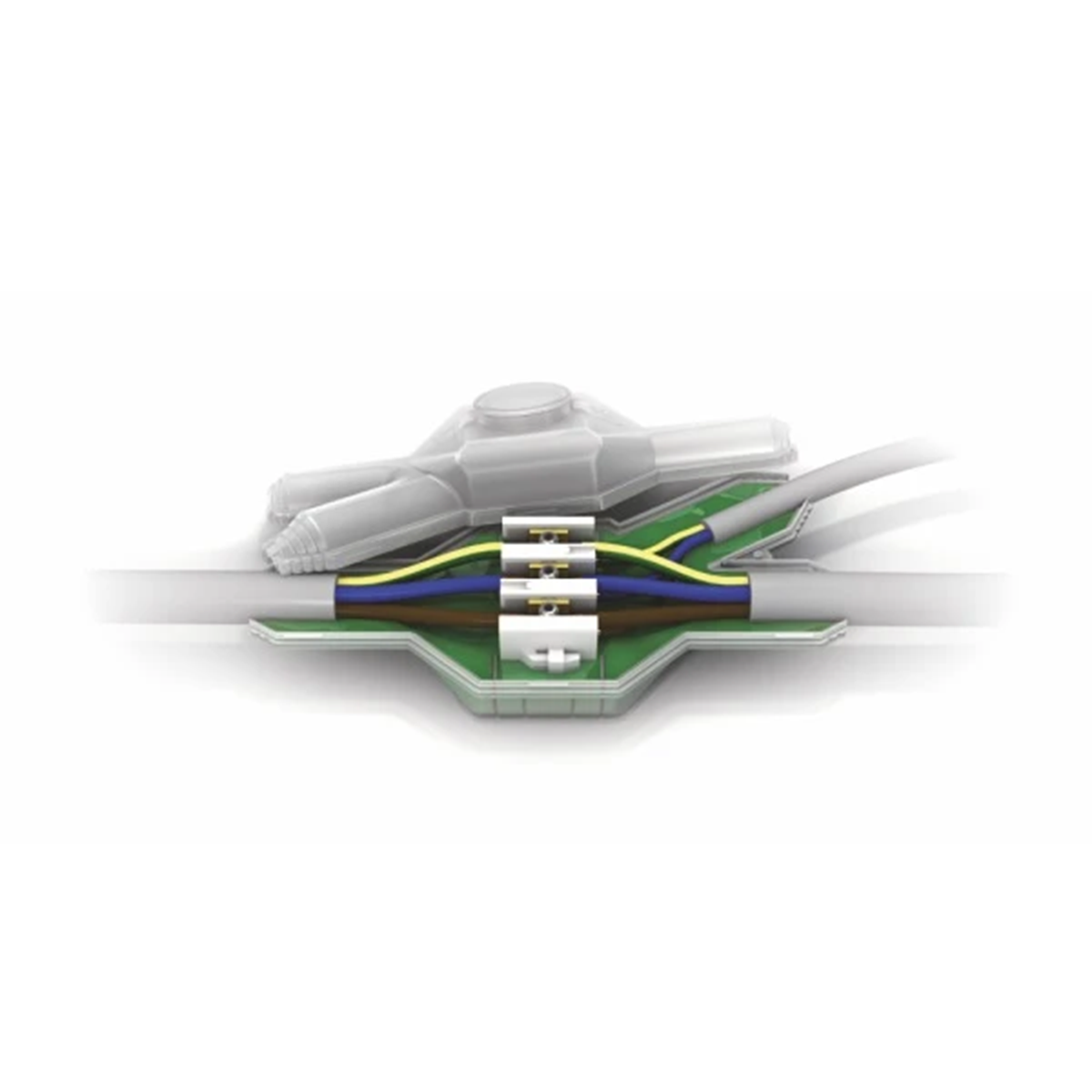

Submarine B-series resin joints for making down-conductors for single and multi-core polymer insulated cables 0.6/1kV. The set includes a transparent polypropylene housing (consisting of two parts), an insulated connector (up to 5 wires), two-component polyurethane resin and other accessories necessary for assembly.

The connector allows you to make an outlet without having to cut the main supply wires. It is equipped with brass clamps that are tightened with an Allen key.

The joint casing contains a special saddle in which the connector is mounted, which guarantees proper arrangement of the wires inside the joint. Each joint kit contains a two-component polyurethane resin, resin mixture and hardener (selected in the appropriate proportion for each type of joint).

Technical data

  • For cables with diameter [mm]
    12-27
  • Material
    PP
  • Level of security
    IPx8
  • Dielectric strength [kV/mm]
    >20
  • Color
    Green
  • Type
    resinous
  • Shore hardness (D)
    55
