Renovation and assembly heat shrink sleeve SVCZ-S4-41 SVCZ-S4-41

local index:
TMN046BORP
Catalog No:
SVCZ-S4-41
EAN code:
8595055715198
Price:
301,97 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

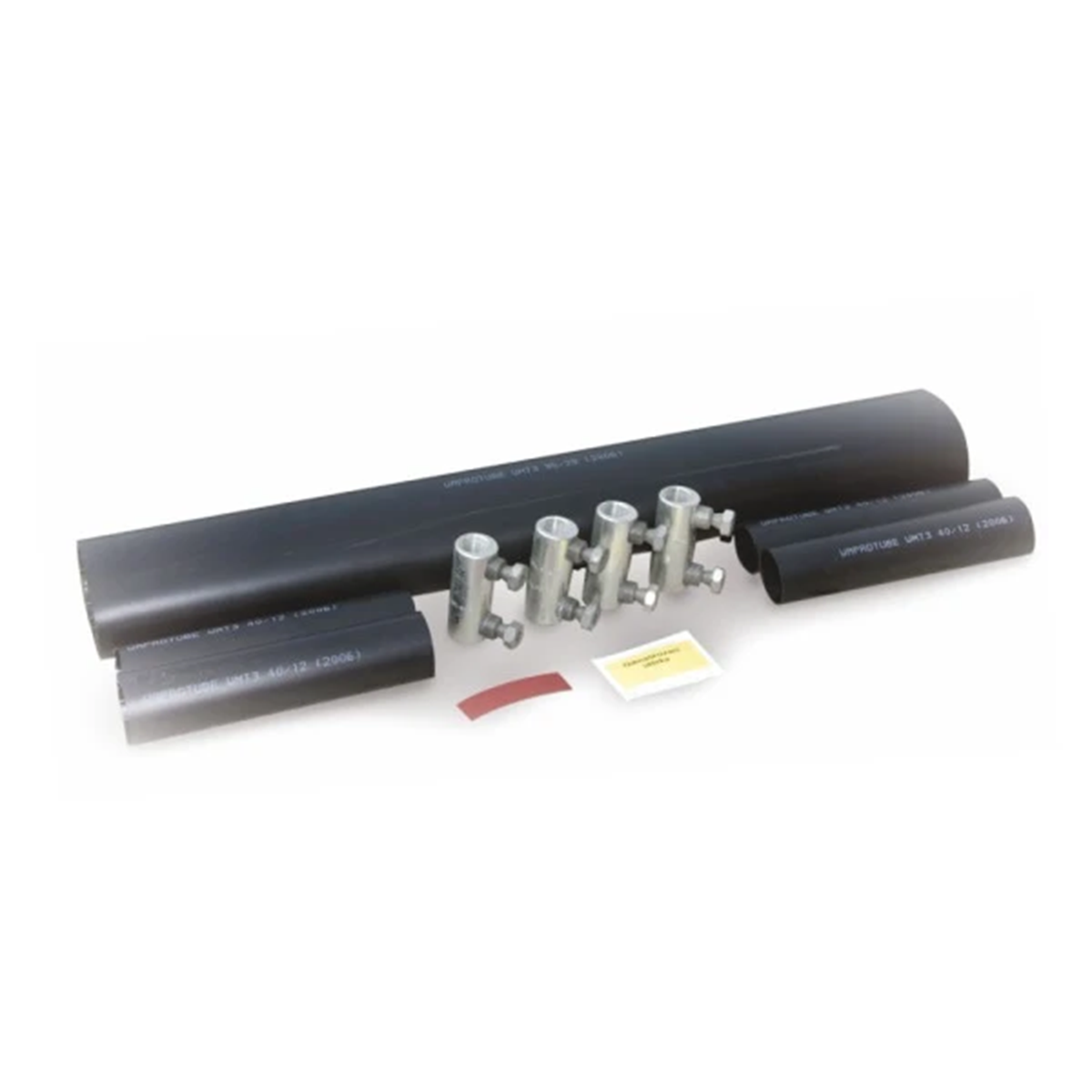

SVCZ heat-shrink joints are intended mainly for repairs of LV 1,3,4,5 core Al and Cu power cables (e.g. YAKY, YKY). They include heat-shrinkable tubes with glue for reconstructing the insulation of cores and cable sheaths, screw connectors for connecting individual cores and auxiliary materials. They are characterized by water resistance and good electrical and mechanical parameters.

The range of core cross-sections depends on the cable type: Al 3x185 mm^2 +95 mm^2 SM+RE, Al 3x240 mm^2 + 120 mm^2 SM +SM, RE Al 4x185 mm^2 SM , Al 4x240 mm^2 SM
Connectors: aluminum with 2 shear Allen screws

Technical data

  • Maximum operating temperature [°C]
    90
  • Type
    Heat shrinkable
  • Minimum operating temperature [°C]
    -55
  • Material
    Polyolefin
  • Shrink temperature [°C]
    100

See other products in the category: Pass-through joints no
