Renovation and assembly heat shrink sleeve SVCZ-S4-4 SVCZ-S4-4

local index:
TMN047BORP
Catalog No:
SVCZ-S4-4
EAN code:
8595055715181
Manufacturer: TRYTYT
Maximum operating temperature [°C]: 90
Material: Polyolefin
Type: Heat shrinkable
Price:
306,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

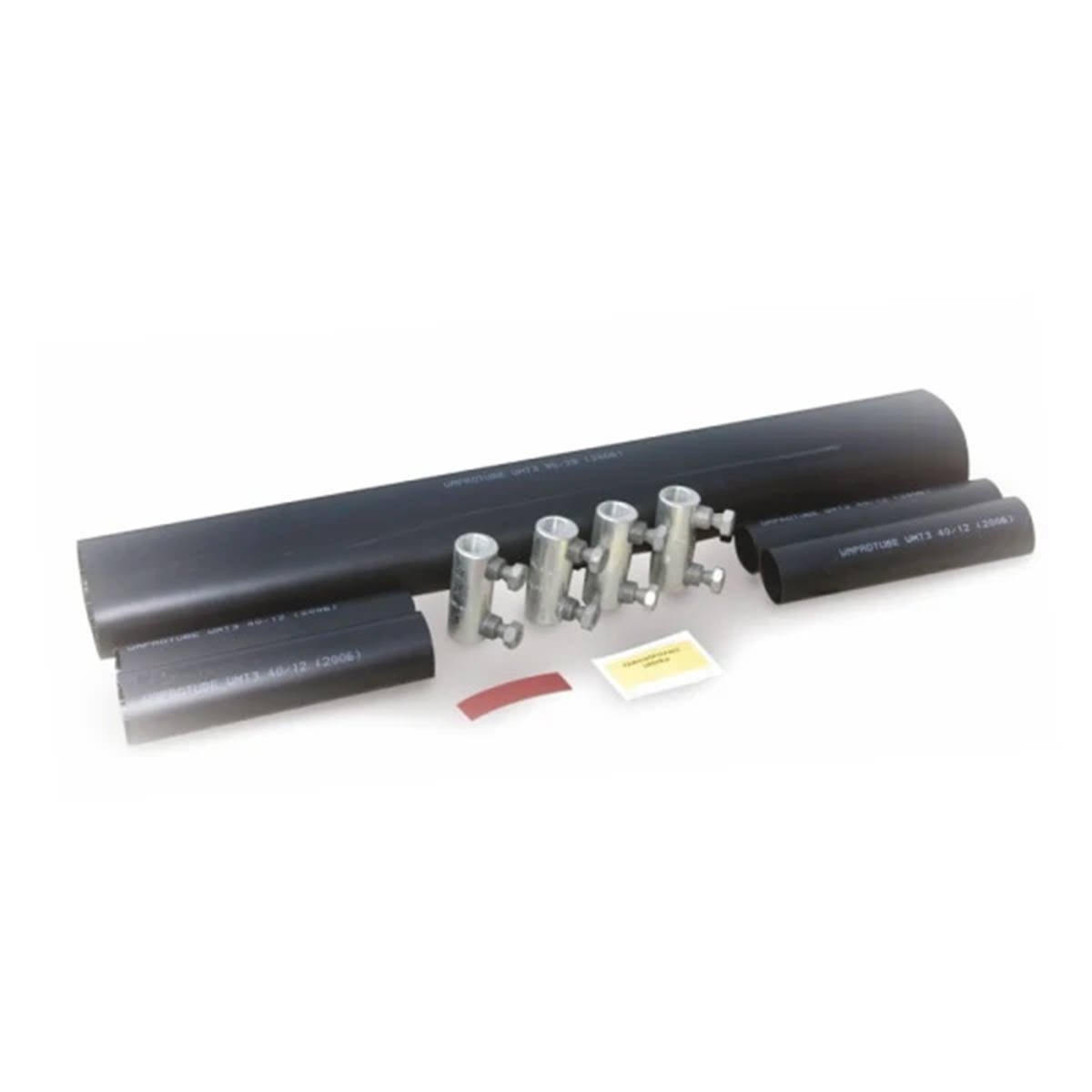

SVCZ heat-shrink joints are intended mainly for repairs of LV 1,3,4,5 core Al and Cu power cables (e.g. YAKY, YKY). They include heat-shrinkable tubes with glue for reconstructing the insulation of cores and cable sheaths, screw connectors for connecting individual cores and auxiliary materials. They are characterized by water resistance and good electrical and mechanical parameters.

The range of cross-sections of wires depends on the cable type: Al 3x185 mm^2 +95 mm^2 SM+RE, Al 3x240 mm^2 + 120 mm^2 SM +SM, RE
Connectors: aluminum with 2 shear Allen screws

Technical data

  • Maximum operating temperature [°C]
    90
  • Type
    Heat shrinkable
  • Minimum operating temperature [°C]
    -55
  • Material
    Polyolefin
  • Shrink temperature [°C]
    100
  • PKWIU
    27.90.12.0
