Reinforced boom WW/WWSR50 65x47mm 751805

Lokaler Index:
TAM293BAKS
Katalognummer:
751805
EAN-Code:
5900993249934
Hersteller: BAKS
Sheet thickness [mm]: 1.2
Material: galvanized steel
Height [mm]: 47
Preis:
0,59 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Zugänglich 372 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

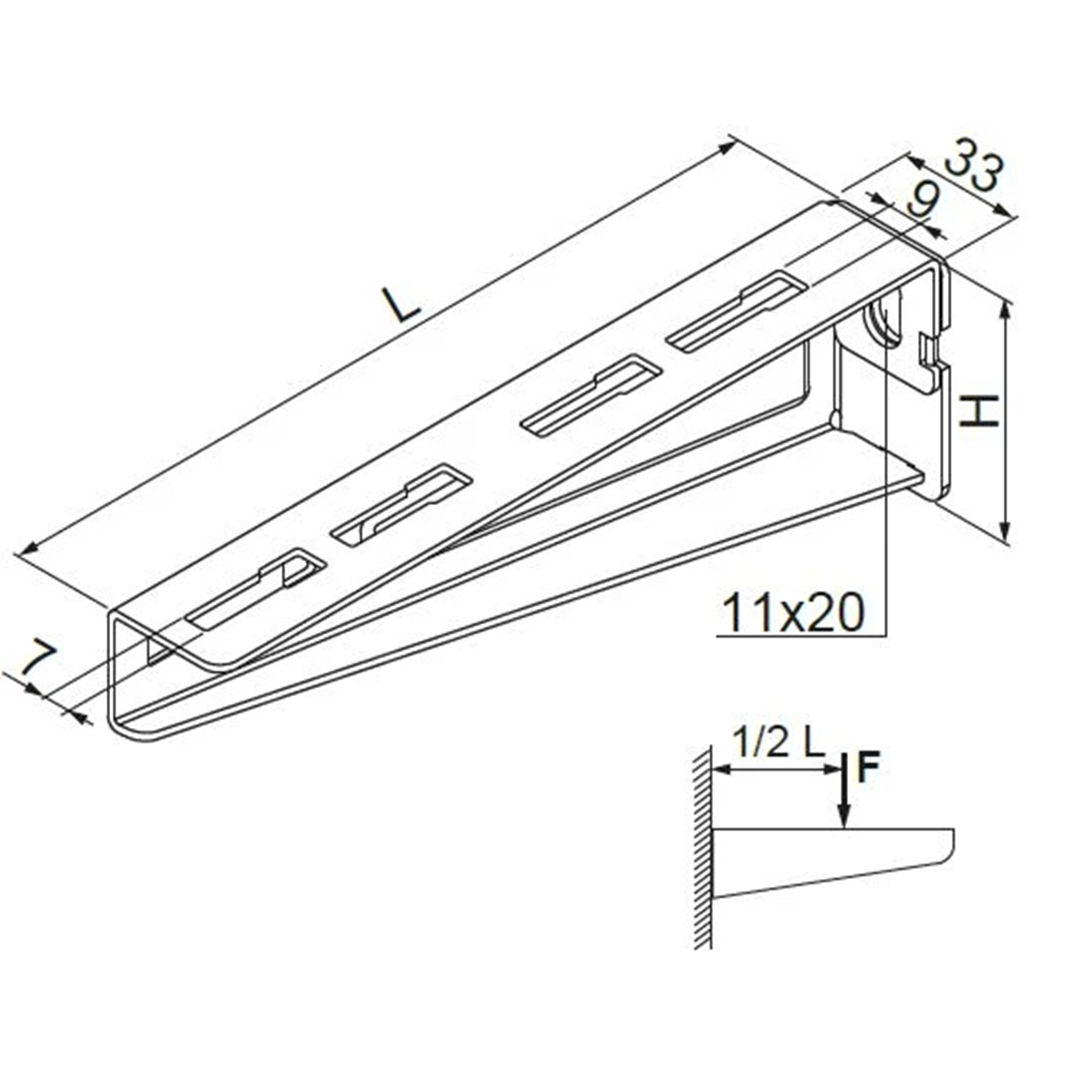

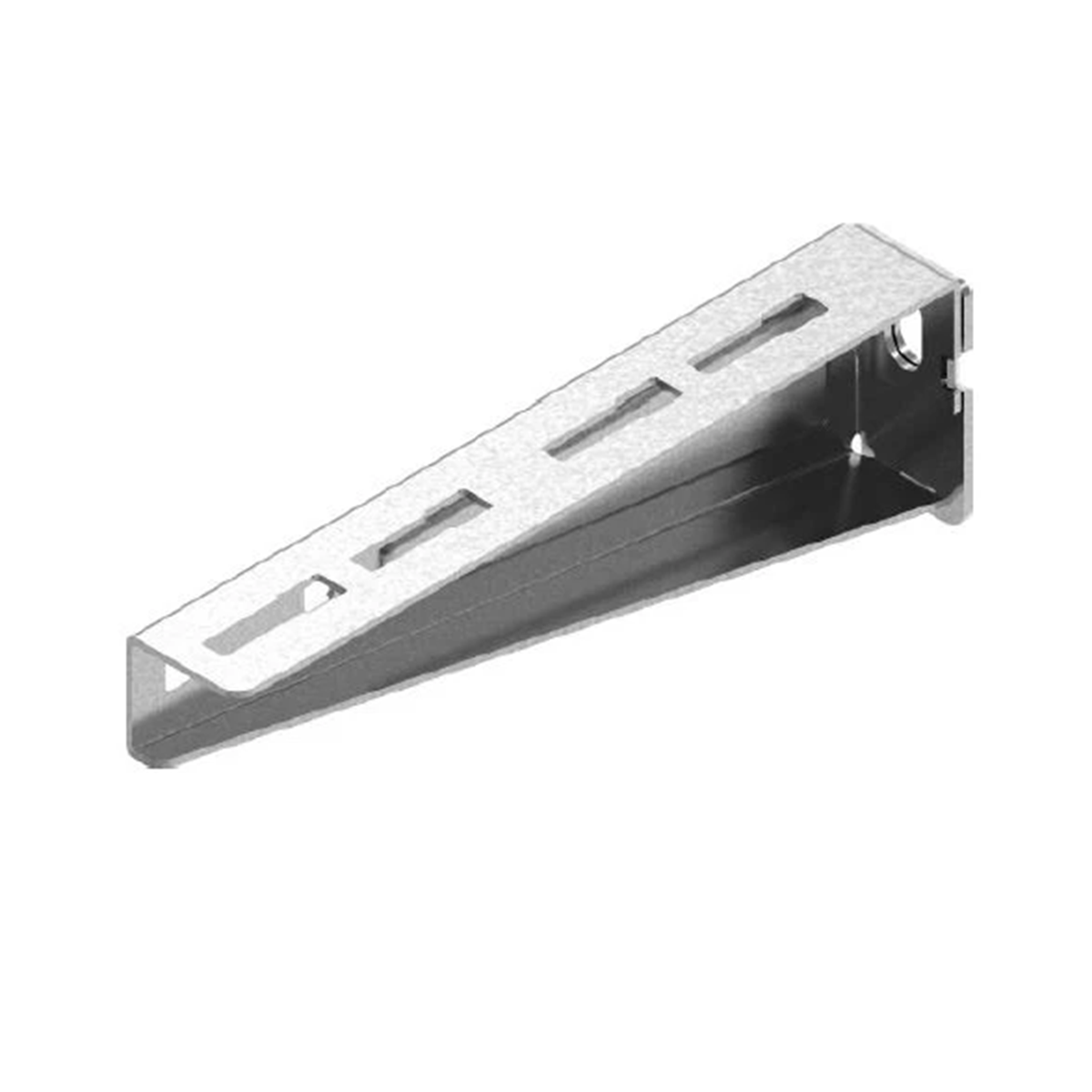

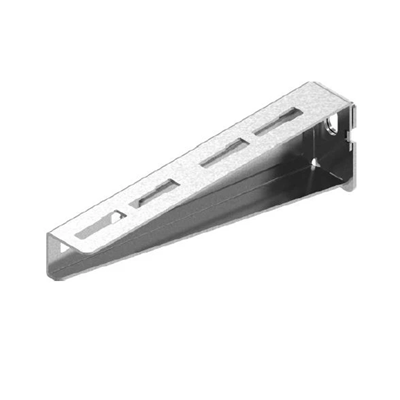

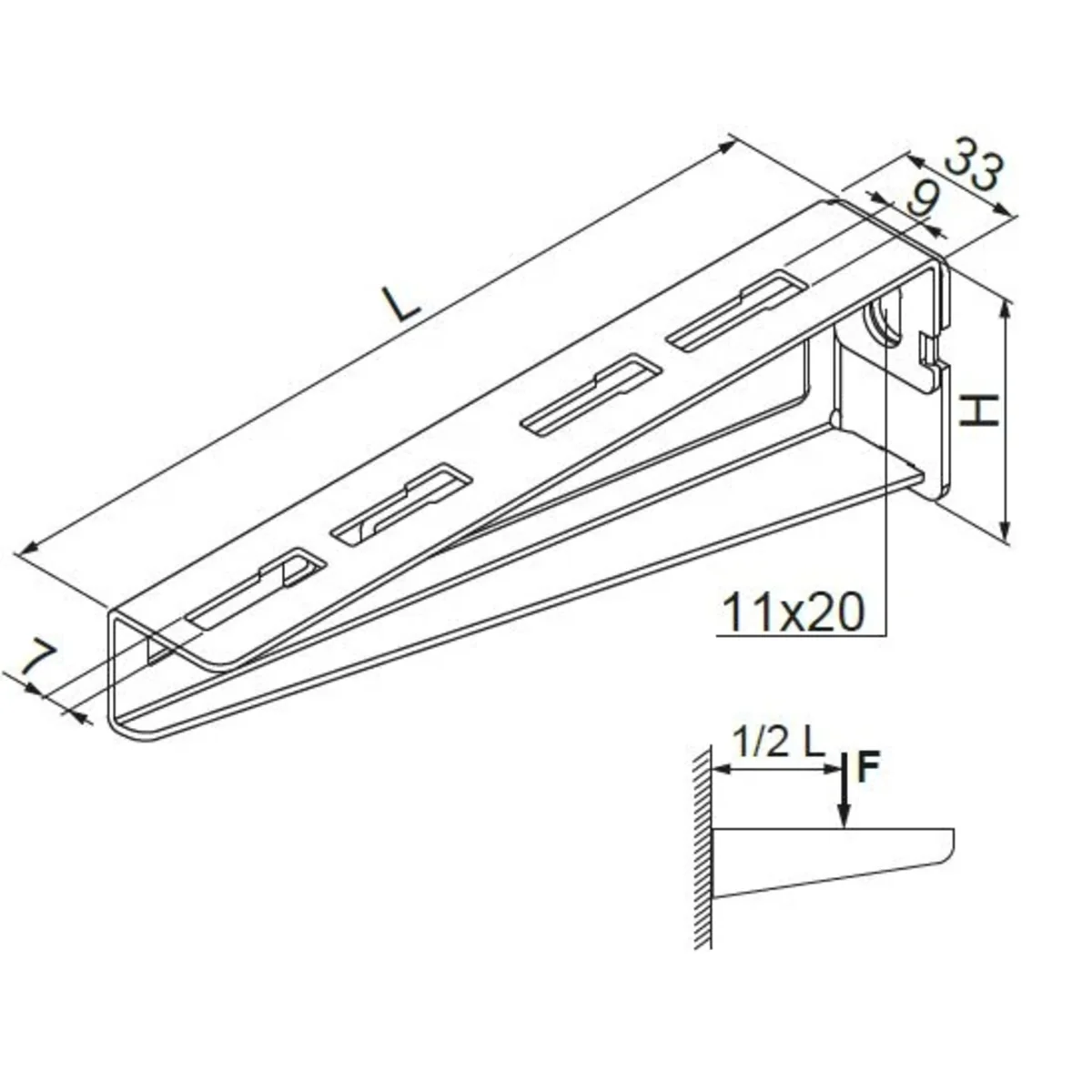

Reinforced arm for mounting cable trays, mesh trays, cable ladders, pipes and other elements.

  • mounted to the wall/structure with one screw
  • high strength parameters
  • thanks to the increased width, it can be mounted to the open side of the channel (possibility of smooth position adjustment)
  • the low height of the arm facilitates the assembly of multi-level cable routes in places with limited space
  • option E90 for lengths of 50 - 400 mm

Technische Daten

  • Sheet thickness [mm]
    1.2
  • Height [mm]
    47
  • Material
    galvanized steel
  • Permissible load [kN]
    0.83

Weitere technische Daten

  • Length
    65 mm
  • Safe working load according to IEC 61537
    850 N
  • Material
    Steel
  • Surface protection
    Hot-dip galvanized
  • Model
    Other

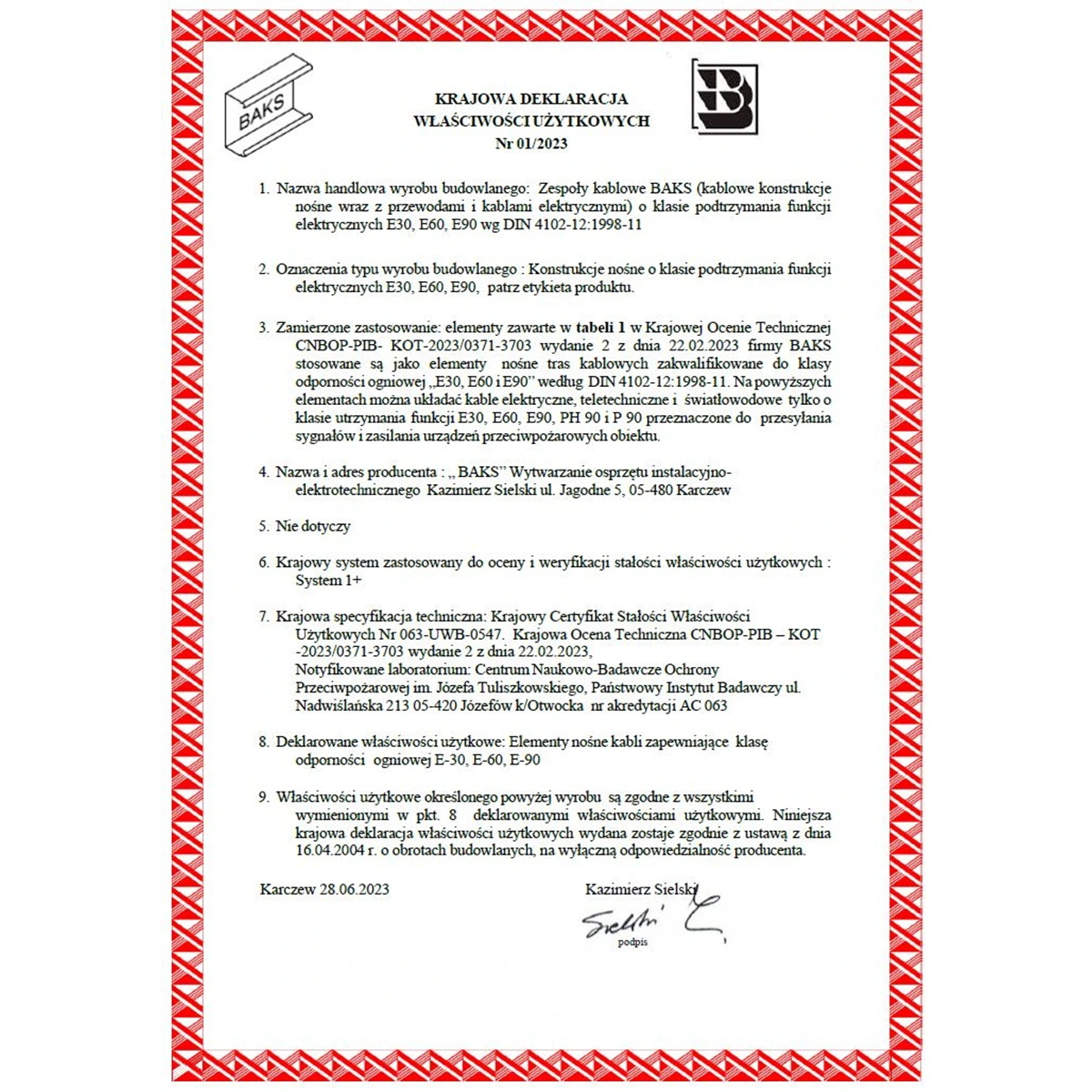

  • Suitable for circuit integrity
    Yes
  • Material quality
    Other
  • Colour
    Other

Hersteller-Details

  • Hersteller
    BAKS Kazimierz Sielski
  • Adresse
    05-480 Karczew Jagodne 5 Polska
