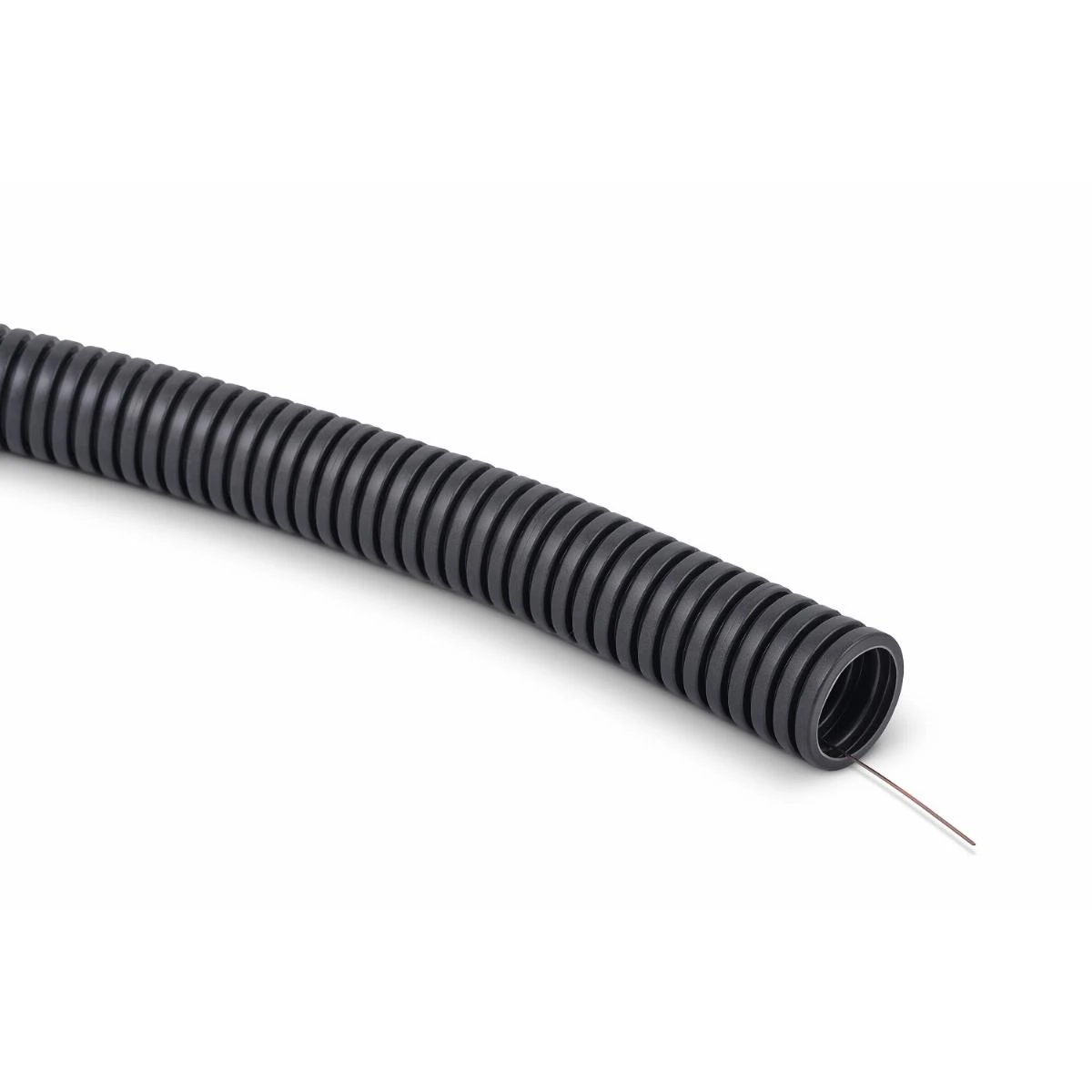

PVC corrugated pipe 750N with a remote control, size 50/43, 25 m 10359

Index local:
TRG748TTPL
Numéro de catalogue:
10359
Code EAN:
5908312751618
Producteur: TT PLAST
Section length [m]: 25
Color: Gray
Material: PVC
Prix:
59,34 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

RKSS and RKSSP casing pipes made of PVC are non-flame spreading pipes (the fire goes out after removing its source). They are designed to protect electrical installations in construction and industry against: mechanical factors, temperature influences and moisture. RKSS and RKSSP pipes can be laid and poured with concrete (also vibrated). They are characterized by increased resistance to compression (750 N) while maintaining good flexibility. The shape of the longitudinal section ensures trouble-free insertion of wires and cables over long distances. It also guarantees easy access to electrical cables and trouble-free troubleshooting of the electrical installation during operation. Equipped with a steel pilot

Données techniques

  • Section length [m]
    25
  • Material
    PVC
  • Inner diameter [mm]
    43
  • Temperature range [°C]
    -20/50
  • Accurate color
    Gray
  • Color
    Gray
  • Compressive strength [N]
    750
  • Outer diameter [mm]
    50
  • Package weight [kg]
    0.046
  • PKWIU
    22.21.29.0

Autres données techniques

  • Nominal diameter
    50 mm
  • Inner diameter
    43 mm
  • Compressive strength
    750 N
  • Fire resistance according to UL94
    V0
  • Oil resistant
    Yes
  • Flame accelerating
    No
  • Lengthwise slotted
    No
  • Halogen free
    No
  • High conducting inner coating
    No
  • Outer diameter
    50 mm
  • Material
    Polyvinyl chloride (PVC)
  • Operating temperature
    -15 ... 60 °C
  • UV resistant
    No
  • Colour
    Grey
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • With draw wire
    Yes

Détails du fabricant

  • Producteur
    TT PLAST S.A.
  • Adresse
    32-015 Kłaj Targowisko 476 Polska

Emballage en vrac

Une sorte de paquet Zwój
Quantité 1 pcs.
poids (kg) 6,560
Largeur (m) 0,620
Longueur (m) 0,620
Profondeur (m) 0,260
