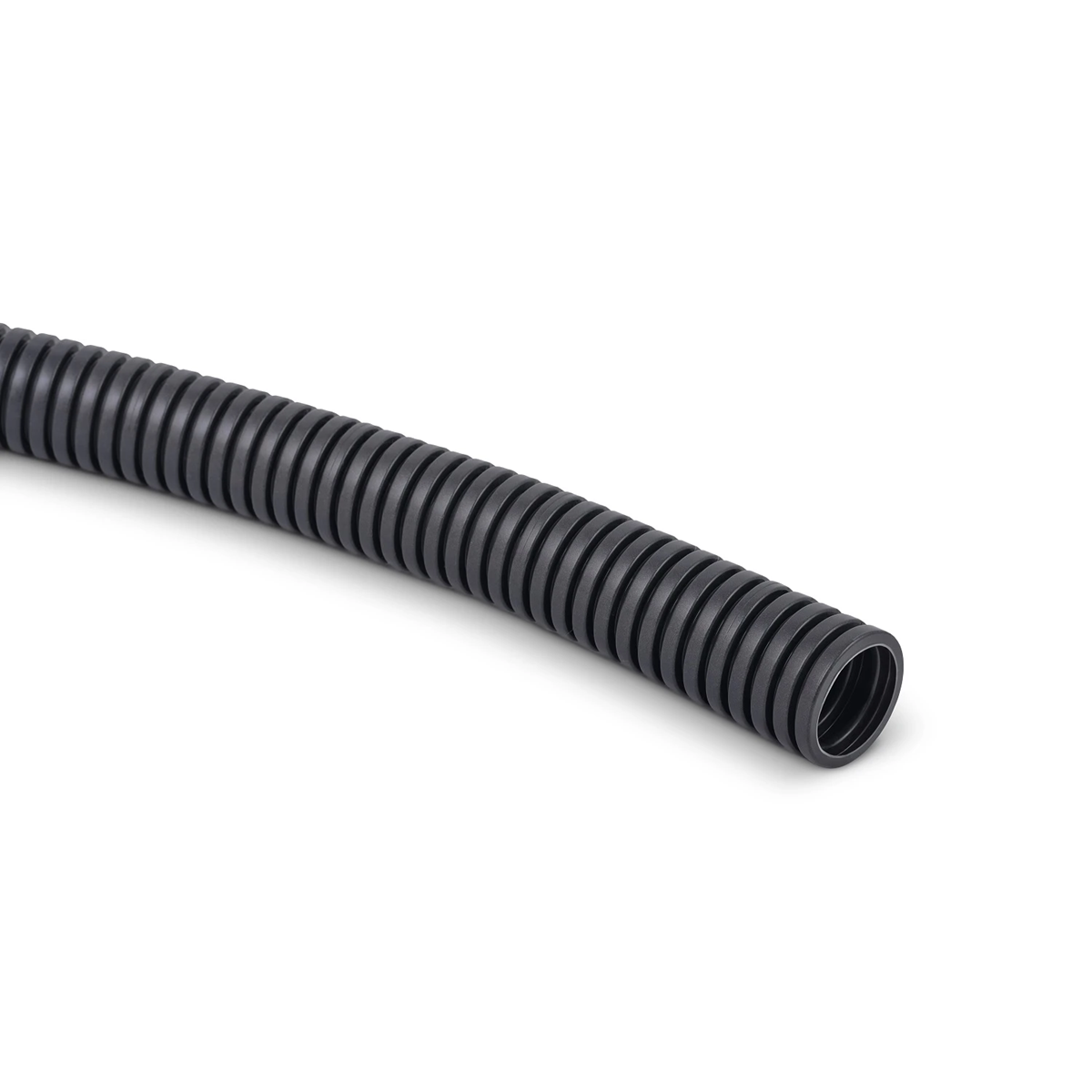

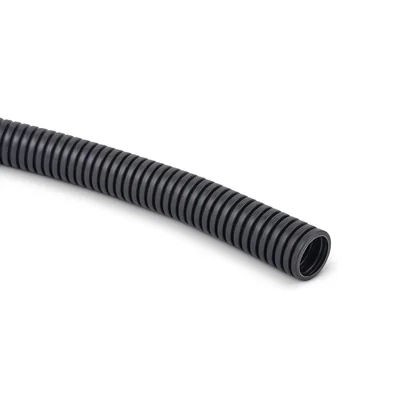

PVC corrugated pipe 750N size 40/34, 25m 10325

local index:
TRG051TTPL
Catalog No:
10325
EAN code:
5908312752530
Manufacturer: TT PLAST
Section length [m]: 25
Color: Gray
Material: PVC
Price:
33,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RKSS and RKSSP casing pipes made of PVC are non-flame spreading pipes (the fire goes out after removing its source). They are designed to protect electrical installations in construction and industry against: mechanical factors, temperature influences and moisture. RKSS and RKSSP pipes can be laid and poured with concrete (also vibrated). They are characterized by increased resistance to compression (750 N) while maintaining good flexibility. The shape of the longitudinal section ensures trouble-free insertion of wires and cables over long distances. It also guarantees easy access to electrical cables and trouble-free troubleshooting of the electrical installation during operation.

Technical data

  • Section length [m]
    25
  • Material
    PVC
  • Inner diameter [mm]
    34
  • Temperature range [°C]
    -20/50
  • Accurate color
    Gray
  • Color
    Gray
  • Compressive strength [N]
    750
  • Outer diameter [mm]
    40
  • Package weight [kg]
    0.042
  • PKWIU
    22.21.29.0

Other technical data

  • Nominal diameter
    40 mm
  • Inner diameter
    34 mm
  • Compressive strength
    750 N
  • Fire resistance according to UL94
    V0
  • Oil resistant
    Yes
  • Flame accelerating
    No
  • Lengthwise slotted
    No
  • Halogen free
    No
  • High conducting inner coating
    No
  • Outer diameter
    40 mm
  • Material
    Polyvinyl chloride (PVC)
  • Operating temperature
    -15 ... 60 °C
  • UV resistant
    No
  • Colour
    Grey
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • With draw wire
    No

Manufacturer details

Bulk packaging

A kind of package Zwój
Quantity 1 pcs.
Weight (kg) 3,850
Volume (m3) 0,061
Width (m) 0,540
Length (m) 0,540
Depth (m) 0,210
