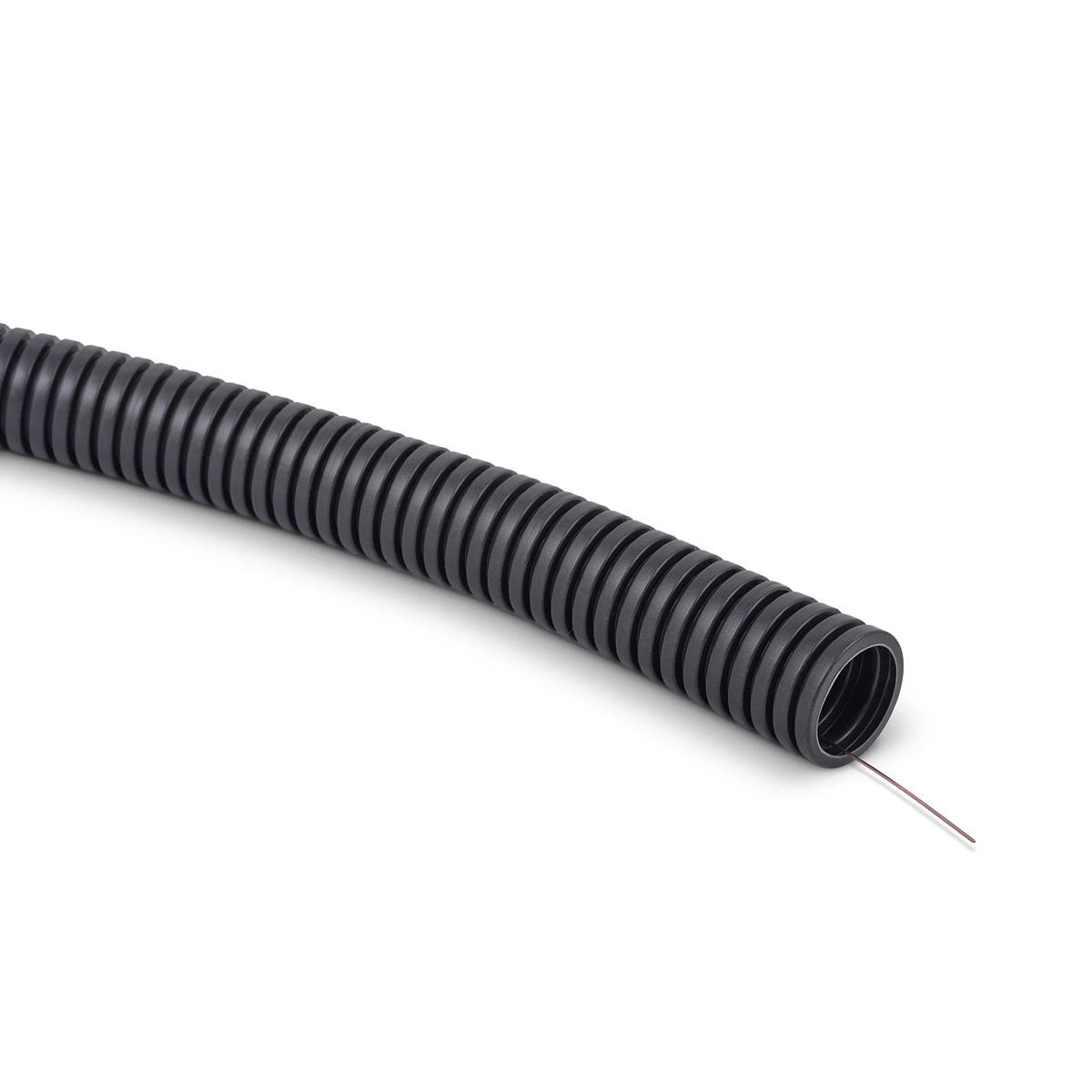

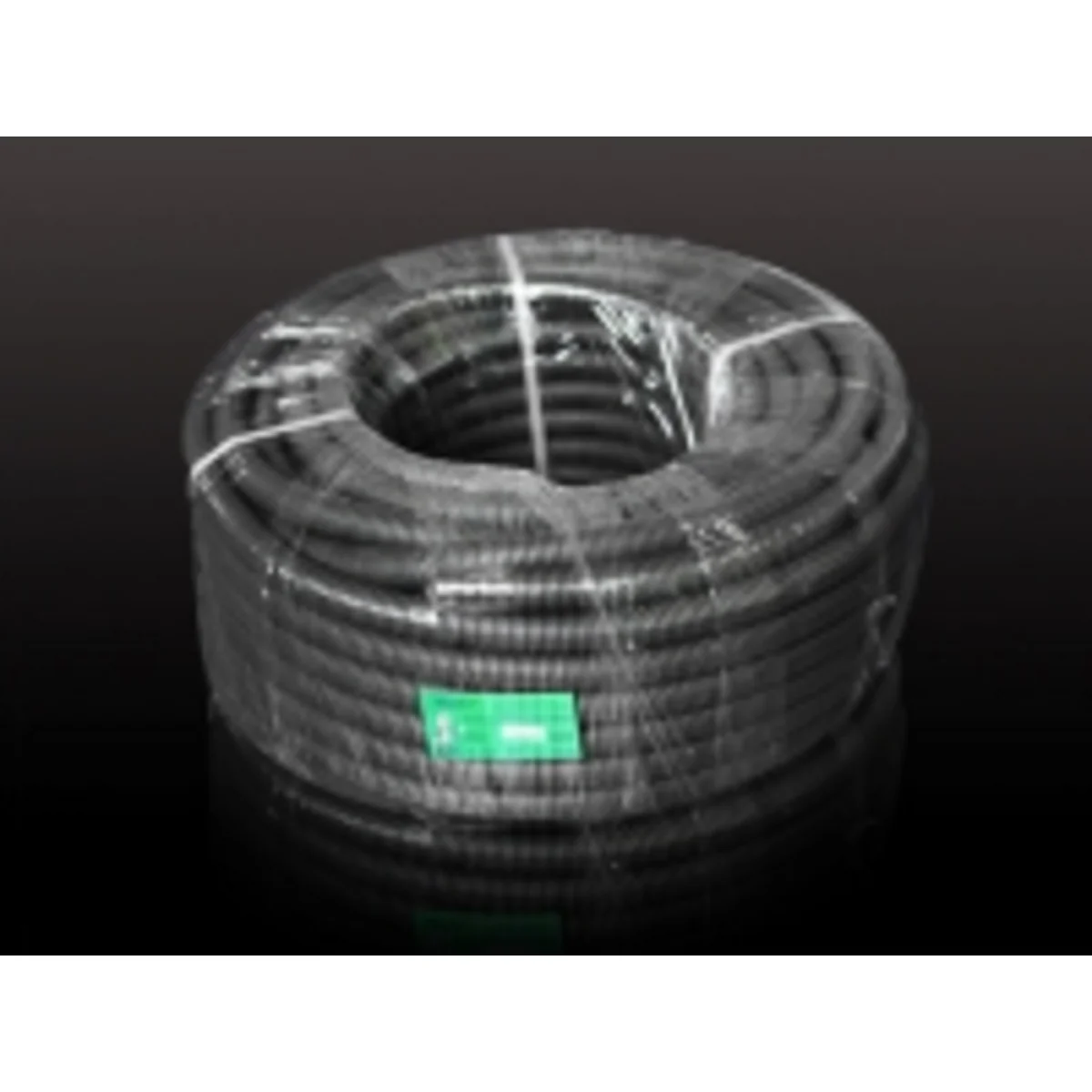

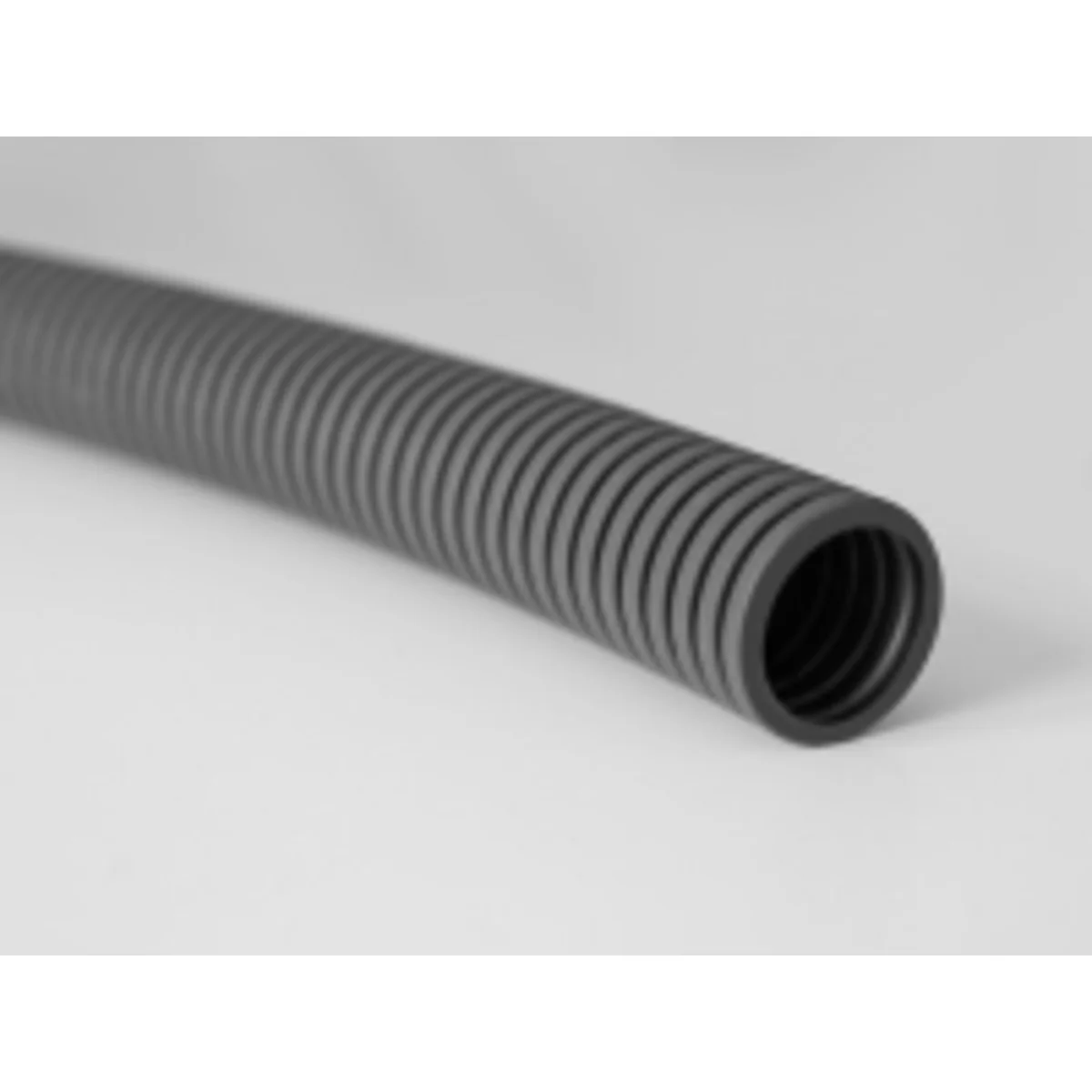

PVC corrugated pipe 320N with a remote control, size 20/16, 25 m 10280

Index local:
TRG131TTPL
Numéro de catalogue:
10280
Code EAN:
5908312751083
Producteur: TT PLAST
Color: Gray
Material: PVC
Compressive strength [N]: 320
Prix:
46,27 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Casing pipes type RKLS and RKLSP made of PVC are flame retardant pipes (the fire goes out after removing its source). They are designed to protect electrical installations in construction and industry against: mechanical factors, temperature influences and moisture. RKLS and RKLSP pipes can be laid and poured with concrete. They retain good flexibility, and the shape of the longitudinal section ensures trouble-free insertion of wires and cables over long distances. They also guarantee easy access to electrical cables and trouble-free troubleshooting of the electrical installation during operation. Equipped with a steel pilot.

Données techniques

  • Color
    Gray
  • Compressive strength [N]
    320
  • Outer diameter [mm]
    20
  • Package weight [kg]
    0.023
  • PKWIU
    22.21.29.0
  • Material
    PVC
  • Inner diameter [mm]
    16
  • Temperature range [°C]
    -20/50
  • Accurate color
    Gray

Autres données techniques

  • Nominal diameter
    20 mm
  • Inner diameter
    16 mm
  • Compressive strength
    320 N
  • Fire resistance according to UL94
    V0
  • Colour
    Grey
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • With draw wire
    Yes
  • Outer diameter
    20 mm
  • Material
    Polyvinyl chloride (PVC)
  • Operating temperature
    -15 ... 60 °C
  • Oil resistant
    Yes
  • Flame accelerating
    No
  • Lengthwise slotted
    No
  • Halogen free
    No
  • High conducting inner coating
    No

Détails du fabricant

  • Producteur
    TT PLAST S.A.
  • Adresse
    32-015 Kłaj Targowisko 476 Polska

Emballage en vrac

Une sorte de paquet Zwój
Quantité 1 pcs.
poids (kg) 1,000
Largeur (m) 0,370
Longueur (m) 0,370
Profondeur (m) 0,130
