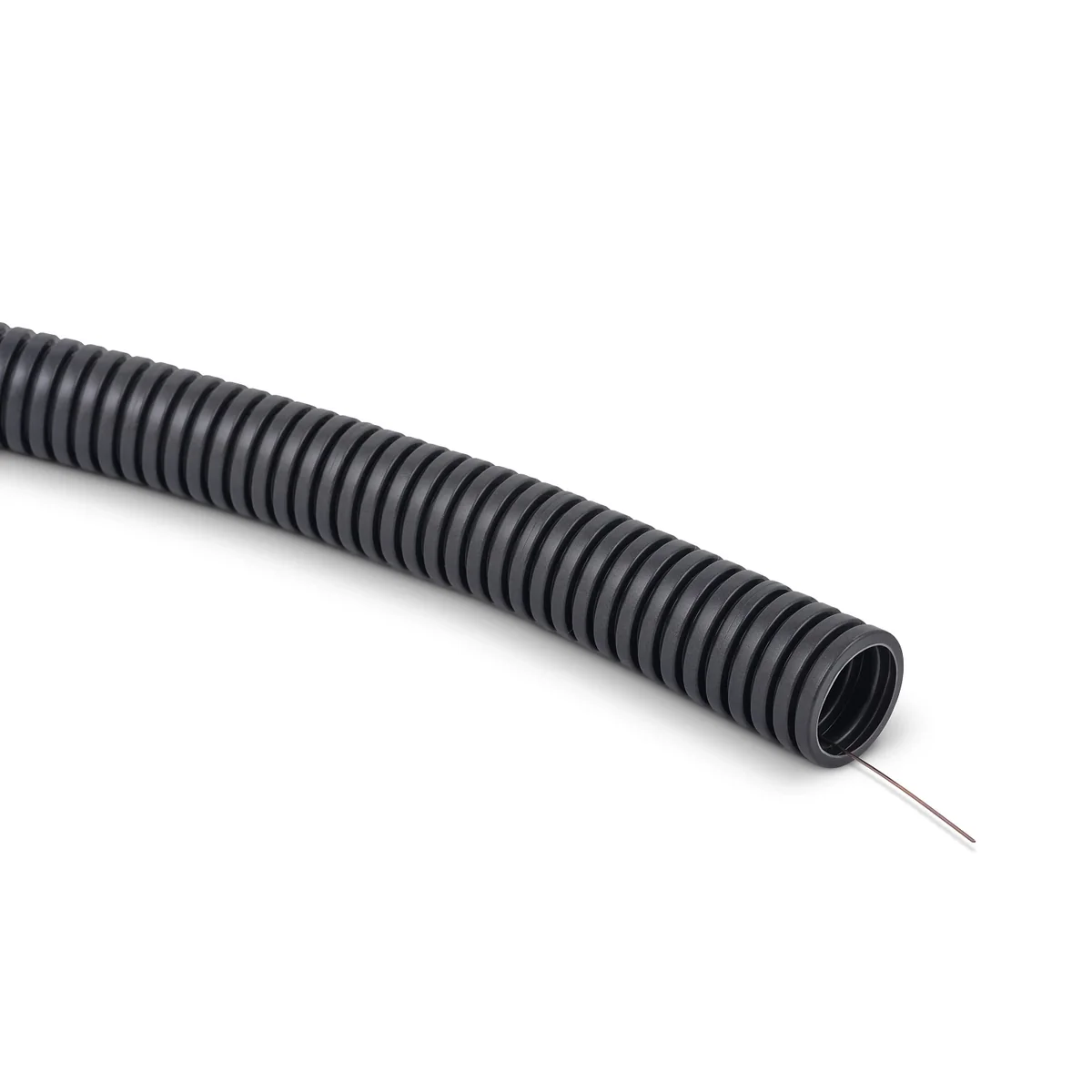

PVC corrugated pipe 320N with a pilot size 25/20, 25mb 10286

Místní index:
TRG083TTPL
Katalogové číslo.:
10286
EAN kód:
5908312751120
Výrobce: TT PLAST
Color: Gray
Material: PVC
Compressive strength [N]: 320
Cena:
57,34 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Casing pipes type RKLS and RKLSP made of PVC are flame retardant pipes (the fire goes out after removing its source). They are designed to protect electrical installations in construction and industry against: mechanical factors, temperature influences and moisture. RKLS and RKLSP pipes can be laid and poured with concrete. They retain good flexibility, and the shape of the longitudinal section ensures trouble-free insertion of wires and cables over long distances. They also guarantee easy access to electrical cables and trouble-free troubleshooting of the electrical installation during operation. Equipped with a steel pilot.

Technické údaje

  • Color
    Gray
  • Compressive strength [N]
    320
  • Outer diameter [mm]
    25
  • Package weight [kg]
    0.03
  • PKWIU
    22.21.29.0
  • Material
    PVC
  • Inner diameter [mm]
    20
  • Temperature range [°C]
    -20/50
  • Accurate color
    Gray

Další technické údaje

  • Nominal diameter
    25 mm
  • Inner diameter
    20 mm
  • Compressive strength
    320 N
  • Fire resistance according to UL94
    V0
  • Colour
    Grey
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • With draw wire
    Yes
  • Outer diameter
    25 mm
  • Material
    Polyvinyl chloride (PVC)
  • Operating temperature
    -15 ... 60 °C
  • Oil resistant
    Yes
  • Flame accelerating
    No
  • Lengthwise slotted
    No
  • Halogen free
    No
  • High conducting inner coating
    No

Podrobnosti o výrobci

  • Výrobce
    TT PLAST S.A.
  • Adresa
    32-015 Kłaj Targowisko 476 Polska

Velkoobjemová balení

Typ obalu Zwój
Množství 1 kusů.
Hmotnost (kg) 1,470
Šířka (m) 0,410
Délka (m) 0,410
Hloubka (m) 0,150
