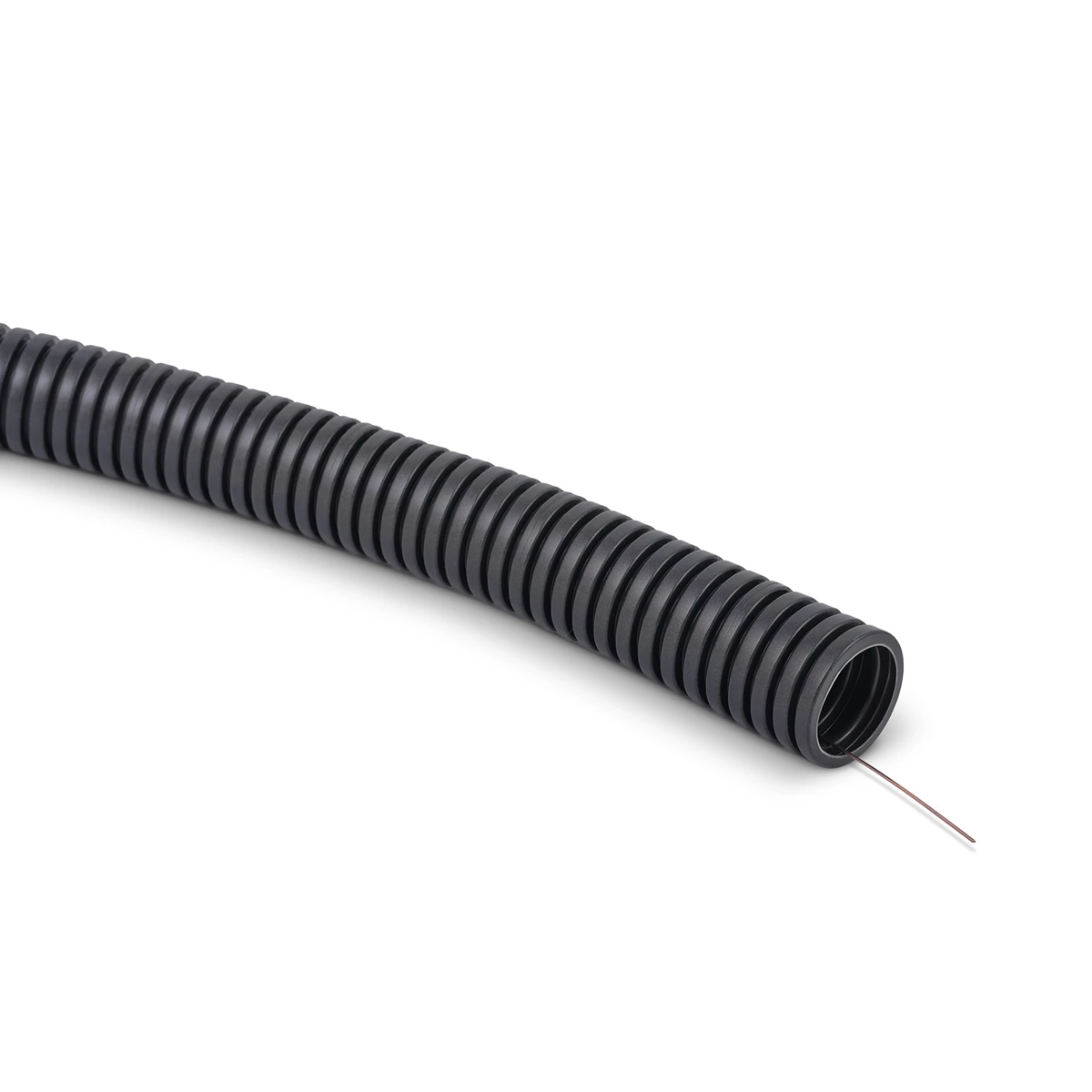

PVC corrugated pipe 320N with a pilot size 18/13, 5, 50mb 10278

local index:
TRG105TTPL
Catalog No:
10278
EAN code:
5908312750109
Manufacturer: TT PLAST
Section length [m]: 50
Color: Gray
Material: PVC
Price:
15,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 78 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Casing pipes type RKLS and RKLSP made of PVC are flame retardant pipes (the fire goes out after removing its source). They are designed to protect electrical installations in construction and industry against: mechanical factors, temperature influences and moisture. RKLS and RKLSP pipes can be laid and poured with concrete. They maintain good flexibility, and the shape of the longitudinal section ensures trouble-free insertion of wires and cables over long distances. They also guarantee easy access to electrical cables and trouble-free troubleshooting of the electrical installation during operation. Equipped with a steel pilot.

Technical data

  • Section length [m]
    50
  • Material
    PVC
  • Inner diameter [mm]
    13.5
  • Type
    RKLSP
  • Package weight [kg]
    0.02
  • PKWIU
    22.21.29.0
  • Color
    Gray
  • Compressive strength [N]
    320
  • Outer diameter [mm]
    18
  • Temperature range [°C]
    -20/50
  • Accurate color
    Gray

Other technical data

  • Nominal diameter
    18 mm
  • Inner diameter
    13.5 mm
  • Compressive strength
    320 N
  • Fire resistance according to UL94
    V0
  • Oil resistant
    Yes
  • Flame accelerating
    No
  • Lengthwise slotted
    No
  • Halogen free
    No
  • High conducting inner coating
    No
  • Outer diameter
    18 mm
  • Material
    Polyvinyl chloride (PVC)
  • Operating temperature
    -15 ... 60 °C
  • UV resistant
    No
  • Colour
    Grey
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • With draw wire
    Yes

Bulk packaging

A kind of package Zwój
Quantity 1 pcs.
Weight (kg) 1,700
Volume (m3) 0,027
Width (m) 0,440
Length (m) 0,440
Depth (m) 0,140
